2 I N S T A L L A T I O N
This section describes how to set up your MultiSync MT830/1030 LCD
projector and how to connect video and audio sources.
Setting Up Your MultiSync MT830/1030 LCD
Projector
Your MultiSync MT830/1030 LCD Projector is simple to set up and use. But
before you get started, you must first:
1. Determine the image size
2. Set up a screen or select a non-glossy white wall onto which you can project
your image.
Carrying The LCD Projector Always carry your LCD projector by the
handle. Ensure that the power cord and any other cables connecting to video
sources are disconnected before moving the projector. When moving the
projector or when it is not in use, cover the lens with the lens cap.
Selecting A Location The further your LCD projector is from the screen or
wall, the larger the image. The minimum size the image can be is approxi-
mately 20" (0.5 m) measured diagonally when the projector is roughly 3 feet
(1.0 m) from the wall or screen. The largest the image can be is 300" (7.6 m)
when the projector is about 40.03 feet (12.2 m) from the wall or screen.

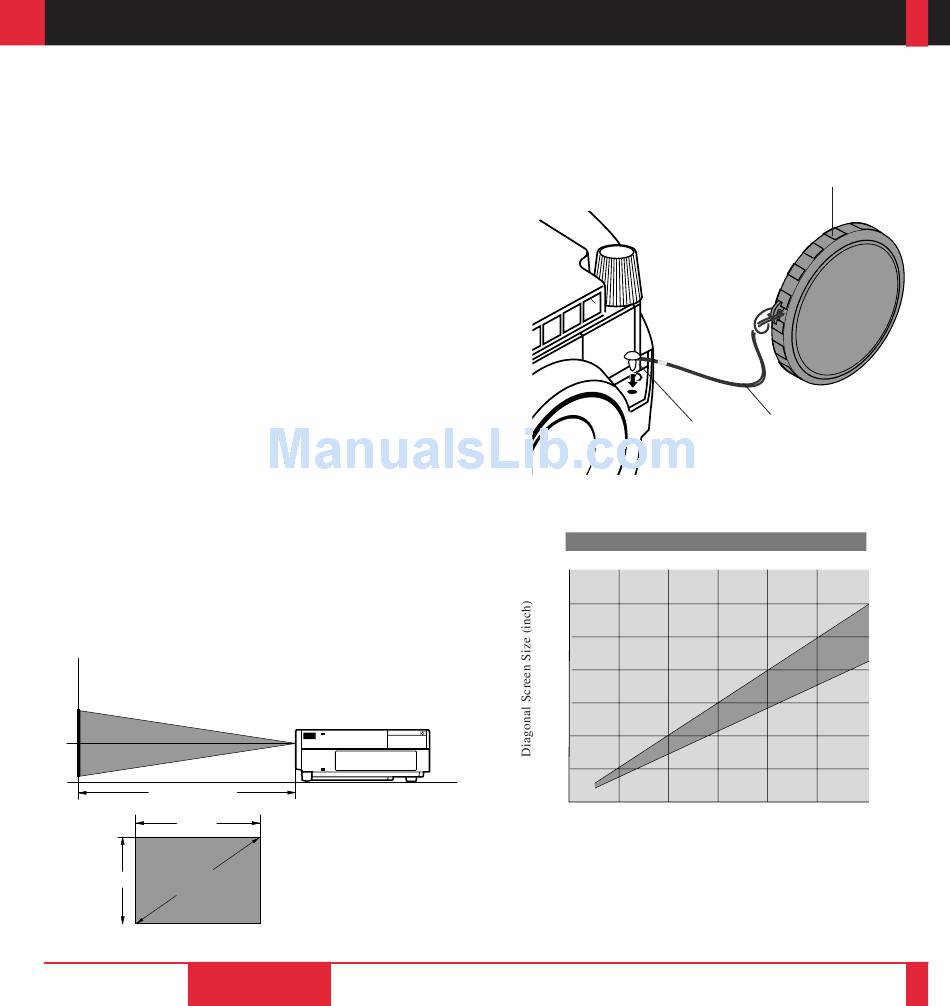

Projection distance
Width
Screen size
Height
(diagonal)

INSTALLATION

Attaching the lens cap to the lens hood
with the supplied string and rivet.
Rivet
Projection Distance and Image Size
350
300
250
200
WIDE
150
100
50
27"
20"
0
0.0 6.56 13.12 19.69
(2.0) (4.0) (6.0)
Throw Distance
Lens cap
String
300"
235"
TELE
26.25 32.81 40.03 ft.
(8.0) (10.0) (12.2) (m)
