Central Pneumatic 95498 Set Up And Operating Instructions Manual

2 hp - twin tank - 4 gallon
Hide thumbs

Advertisement

Table of Contents

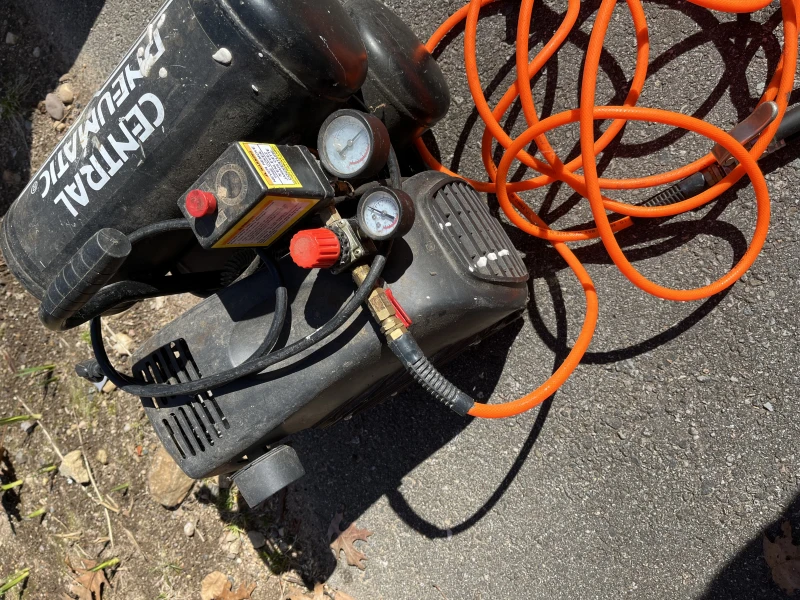

AIR COMPRESSOR

2 HP - TWIN TANK - 4 GALLON
SET uP ANd OPERATING INSTRuCTIONS
A.
You do not put compressor oil in the Compressor's crankcase prior to its first use.
Before each use, check the oil level. Never run the Compressor with low or no compres-
sor oil. Running the Compressor with low or no oil will permanently damage the unit.
B.
You drop the Air Compressor.
Always lift the Air Compressor using its Handle.
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANuAL.
Copyright
2007 by Harbor Freight Tools
©
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Cover revised 08k, 09j
95498
CAuTION!
Your Warranty Is Voided If:
. All rights reserved. No portion of this manual or any artwork
®

Advertisement

Table of Contents
loading

Related Manuals for Central Pneumatic 95498

Summary of Contents for Central Pneumatic 95498

  • Page 1: Air Compressor

    Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein. Tools required for assembly and service may not be included.

  • Page 2: Product Specifications

    A moment of inattention while operating power tools may result in serious personal injury. SKU 95498 For technical questions, please call 1-800-444-3353. 120 V~ / 60 Hz / 16 A / 2 HP Motor / 3400 RPM 115 PSI 5.8 Cubic Feet Per Minute (CFM) @ 40 PSI...
  • Page 3 Tool service must be performed only by qualified repair personnel. maintenance performed by unqualified personnel could result in a risk of injury. SKU 95498 For technical questions, please call 1-800-444-3353. Be sure the Compressor Control Knob (83) is in...

  • Page 4: Specific Safety Rules And Precautions

    Air Compressor. Always lift the Air Compressor using its Handle. Maintain labels and nameplates on the Air Compressor. information. If unreadable or missing, contact Harbor Freight Tools for a replace- ment. This Air Compressor is NOT equipped and should not be used “as-is” to supply breathing quality air.
  • Page 5 Never direct the Air Outlet Valve (68) at people or animals. do not alter or remove the Safety Release Valve (62). Make sure the Air Compressor is located on a flat, level, sturdy surface ca- pable of supporting the weight of the Compressor, operator(s), and any ad- ditional tools and equipment.
  • Page 6 The tool must be plugged into an appropriate outlet, properly installed and ground- ed in accordance with all codes and ordinances. The plug and outlet should look like those in the preceding illustration. (See 3-Prong Plug and Outlet.) SKU 95498 For technical questions, please call 1-800-444-3353. GROuNdING...
  • Page 7 When unpacking, check to make sure all the parts shown on the Parts List on page 13 are included. If any parts are missing or broken, please call Harbor Freight Tools at the number shown on the cover of this manual as soon as possible. SKU 95498 For technical questions, please call 1-800-444-3353. Symbology Underwriters Laboratories, Inc.

  • Page 8: Assembly Instructions

    (NOT INCLudEd) FIGuRE d Prior to using the Air Compressor, the unit requires the attachment of a 1/4”-18 NPT Male Quick Connector (not included). To do so, wrap approximately 3” of pipe thread sealant tape (not included) around the male threads of the Quick Con- nector.

  • Page 9: Pre-Start Instructions

    (22). Maintain oil level at the center of indicator in the Oil Sight glass. When finished adding compressor oil, re-install the Oil Breather Cap (25) back into the Oil Breather Cap hole. SKU 95498 For technical questions, please call 1-800-444-3353. OIL BREATHER CAP...

  • Page 10: Operating Instructions

    IMPORTANT: To decompress the air pressure in the Air Tanks (51), push down on the Pressure Switch (64) to its “STOP” position. Then, pull out on the Safety Release Valve to immediately release air pressure from the Air Tanks. SKU 95498 For technical questions, please call 1-800-444-3353. REGuLATOR...
  • Page 11 Remove any moisture in the Air Tanks (51) by opening the Tank Drain Valve (52). Then, retighten the Drain Valve. (See Figure F.) Allow the Air Compressor to completely cool. Then store the unit in a clean, dry, safe location out of reach of children.

  • Page 12: Inspection, Maintenance, And Cleaning

    Before each use, check the compressor oil level in the Oil Sight Glass (22). If necessary, fill the crankcase of the Air Compressor with the proper amount and type of compressor oil. daily, purge the Air Tanks (51) of all air and moisture to prevent corrosion.

  • Page 13: Please Read The Following Carefully

    Drain Plug Note: Some parts are listed and shown for illustration purposes only, and are not avail- able individually as replacement parts. SKU 95498 For technical questions, please call 1-800-444-3353. Drain crankcase and refill to proper level on sight glass.

  • Page 14: Assembly Diagram

    ASSEMBLY dIAGRAM REV 08k SKU 95498 For technical questions, please call 1-800-444-3353. Page 14...

  • Page 15: Limited 1 Year / 90 Day Warranty

    (90 days if used by a professional contractor or if used as rental equipment). Harbor Freight Tools also warrants to the original purchaser, for a period of ninety days from date of purchase, that all other parts and components of the product are free from defects in materials and workmanship.
