Grohe 27005001 Specification Sheet

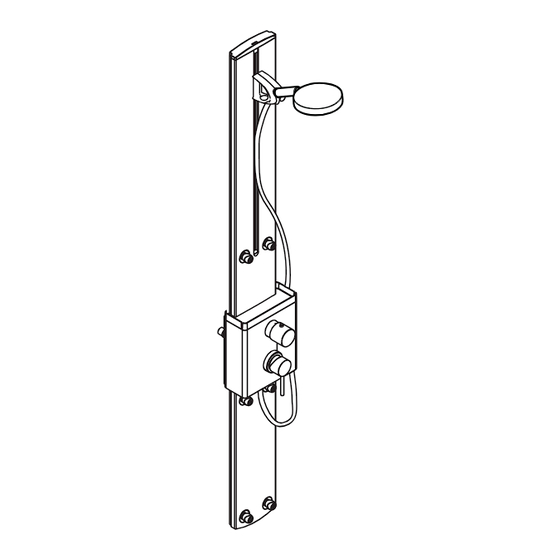

Raindance S Showerpanel

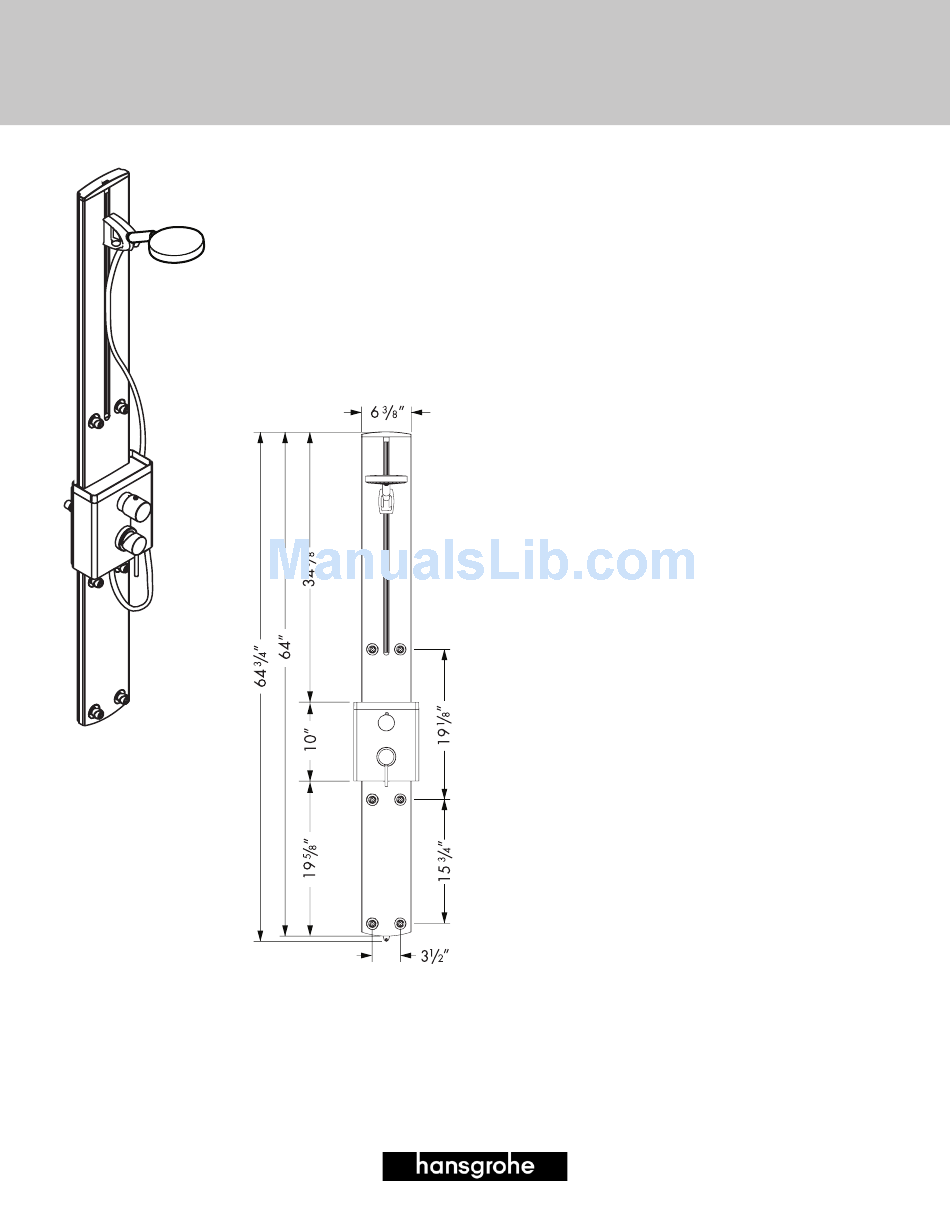

The measurements shown are for reference only.
Products and specifications shown are subject to
change without notice.
Specification sheet revised 2/2008

Product Features

• Pre-plumbed, anodized aluminum panel with satin chrome finish
• 1 1/4" slim profile
• Thermostatic mixing valve
• Diverter with integrated volume control
• Raindance S 150 AIR 3-jet handshower, 2.5 gpm, with height
and angle adjustable holder, Techniflex handshower hose
• 6 Angle-adjustable bodysprays < 1 gpm each
• Shelf
• Protection against backflow provided by check valve

Code Compliance

This unit meets or exceeds the following:
• ASME A112.18.1
• CSA B125.1
• Listed by IAPMO
• Approved for use in Massachusetts

Available Finishes

Satin chrome panel with chrome trim
Satin chrome panel with brushed nickel trim

Optional Accessories

Replacement bodyspray - Full
Replacement bodyspray - Massage
Replacement bodyspray - Fog

Installation Notes

• Requires 1/2" NPT male nipples, extending 5/8" outside the
surface of the finished wall, for the hot and cold supplies
• Showerpanel hangs on finished wall
27005XX1
27005001
27005821
28406XX0
28408XX0
28409XX0
