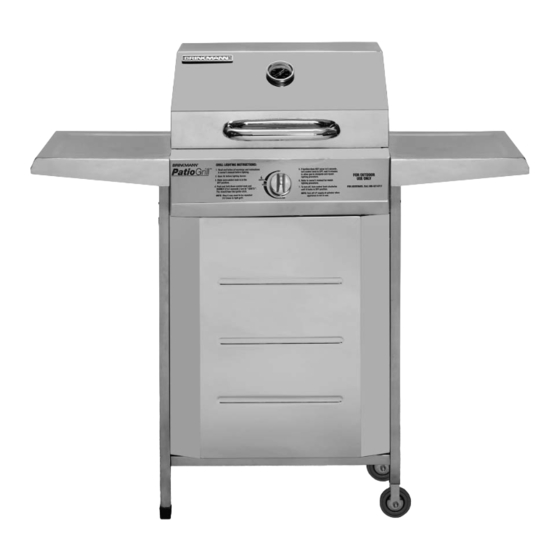

OUTDOOR GAS GRILL
OWNER'S MANUAL
ASSEMBLY AND OPERATING INSTRUCTIONS
SAVE THIS MANUAL FOR FUTURE REFERENCE
WARNING
NOTICE TO INSTALLER:
HAZARDOUS EXPLOSION MAY
LEAVE THESE INSTRUCTIONS
RESULT IF THESE WARNINGS AND
WITH THE GRILL OWNER FOR
INSTRUCTIONS ARE IGNORED. READ
FUTURE REFERENCE.
AND FOLLOW ALL WARNINGS AND
INSTRUCTIONS IN THIS MANUAL TO
AVOID PERSONAL INJURY, INCLUDING
DEATH OR PROPERTY DAMAGE.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Brinkmann Patio Grill
Summary of Contents for Brinkmann Patio Grill
- Page 1 OUTDOOR GAS GRILL OWNER’S MANUAL ASSEMBLY AND OPERATING INSTRUCTIONS SAVE THIS MANUAL FOR FUTURE REFERENCE WARNING NOTICE TO INSTALLER: HAZARDOUS EXPLOSION MAY LEAVE THESE INSTRUCTIONS RESULT IF THESE WARNINGS AND WITH THE GRILL OWNER FOR INSTRUCTIONS ARE IGNORED. READ FUTURE REFERENCE. AND FOLLOW ALL WARNINGS AND INSTRUCTIONS IN THIS MANUAL TO AVOID PERSONAL INJURY, INCLUDING...
- Page 2 IMPORTANT SAFETY WARNINGS WE WANT YOU TO ASSEMBLE AND USE YOUR GRILL AS SAFELY AS POSSIBLE. THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR GRILL. WHEN YOU SEE THE SAFETY ALERT SYMBOL PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS! READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND OPERATING YOUR GRILL.
-
Page 3: Table Of Contents
TABLE OF CONTENTS General Warnings ..........3 Installation and LP Cylinder Specifications and Safe Use. -
Page 4: General Warnings
GENERAL WARNINGS WARNING • Never use natural gas in a unit designed for liquid propane gas. • Never use charcoal briquets or lighter fluid in a gas grill. • Leak test all connections before first use, even if grill was purchased fully assembled and after each tank refill. -
Page 5: Installation And Lp Cylinder Specifications And Safe Use
WARNING • FOR OUTDOOR USE ONLY. DO NOT operate indoors or in an enclosed area such as garage, shed or breezeway. • Use your grill OUTDOORS in a well ventilated space away from dwellings or other buildings to prevent dangers associated with gas accumulation and toxic vapors. We recommend your grill be situated at least 10 feet from buildings. - Page 6 CYLINDER SPECIFICATIONS: When purchasing or exchanging a cylinder for your gas grill, it must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S. Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339 Cylinders, Spheres and Tubes for Transportation of Dangerous Goods;...
-
Page 7: Connecting Lp Cylinder And Hose / Regulator To Grill
WARNING FILLING THE LP GAS CYLINDER: • Allow only qualified LP gas dealers to properly fill or repair your LP gas cylinder. • New tanks should be purged prior to filling; inform LP gas dealer if you are using a new tank. •... -
Page 8: Connecting Hose And Regulator To An Lp Gas Cylinder
WARNING • Never use your grill without leak testing all gas connections and hoses. See the section on "Leak Testing" in this manual for proper procedures. WARNING The pressure regulator and hose assembly supplied with your gas grill must be used. •... -
Page 9: Leak Testing
DANGER LEAK TESTING: To prevent fire or explosion hazard: • DO NOT smoke or permit ignition sources in the area while conducting a leak test. • Perform test OUTDOORS only in a well ventilated area. • Never perform a leak test with a match or open flame. •... -
Page 10: Pre-Start Check List
6. Check each place listed (A–J) for growing bubbles which indicates a leak. 7. Turn off gas supply at cylinder valve. 8. Turn on control knob to release gas pressure in hose. 9. Turn control knob to "OFF" position. 10. Tighten any leaking connections. 11. -
Page 11: Connecting Lp Cylinder And Hose / Regulator To Grill
WARNING Read, understand and follow all warnings and instructions contained in this manual. DO NOT skip any of the warnings and instructions contained in the preceding sections of this manual. WARNING LIGHTING INSTRUCTIONS: Follow the instructions exactly. 1. OPEN THE GRILL LID before attempting to light the burner so that fumes do not accumulate inside the grill. -
Page 12: Operating Grill And Helpful Hints
NOTE: Observe flame height when lit: Flame should be a Blue/Yellow color between 1”–2” when burner is on "HIGH." TURNING OFF THE GRILL: 1. Turn off the cylinder valve. 2. Turn burner control knob to the "OFF" position. NOTE: Turn off LP cylinder first to prevent gas from being left in the system under pressure. CAUTION! •... -
Page 13: Grill Cooking Tips
WARNING • DO NOT leave your grill unattended while in use. • DO NOT move grill when in use. • DO NOT use water to extinguish flare-ups. • Have fire extinguisher readily accessible suitable for use with gas appliances. TO MINIMIZE FLARE-UPS: •... -
Page 14: Proper Care And Maintenance
HELPFUL HINTS • If you pre-cook meat or poultry, do so immediately before grilling. • Never defrost meat at room temperature or on a countertop. • Refrigerate leftovers within 2 hours of taking food off the grill. • For additional information, please phone the USDA’s toll free Meat & Poultry Hotline at 800-535-4555. PROPER CARE &... -
Page 15: Burner Assembly/Maintenance
BURNER ASSEMBLY/MAINTENANCE • Although your burner is constructed of cast iron, it will rust as a result of the extreme heat and acids from cooking foods. Regularly inspect the burner for cracks, abnormal holes, and other signs of corrosion damage. If found, replace the burner. •... -
Page 16: Transporting And Storage
COOKING GRILL • Clean with mild soap detergent and water. A brass bristled brush or a nylon cleaning pad can be used to remove residue from the stainless steel surface. Do not use steel wire bristles to clean the stainless steel cooking grill. -
Page 17: Trouble Shooting
TROUBLE SHOOTING Problem: Possible Causes: 1. Check LP cylinder fuel level. 2. Bad electrode spark. Check to see if the grill will match light. Electrode or collector may need adjustment. • Burner will not light 3. Burner may not be properly seated. 4. -
Page 18: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS Your grill's serial number and model number, and the contact information for Brinkmann Customer Service, are listed on a silver label found on the back of the grill or on the grill body side, under the side shelf. These questions and answers are for your general knowledge, and may not be applicable to your model grill. -
Page 19: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS Cleaning Stainless Steel Cooking Grills: Wash grills with a mild detergent and rinse with hot water before initial use and as needed. DO NOT use a commercial oven cleaner. For stubborn food residue, use a degreaser and fiber or brass cleaning brush. Cleaning Porcelain-Finished Cast-Iron Cooking Grills: Wash grills with a mild detergent and rinse with hot water before initial use and as needed. -
Page 20: Parts List And Assembly Instructions
READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR OPERATING YOUR GRILL. WE RECOMMEND TWO PEOPLE WORK TOGETHER WHEN ASSEMBLING THIS UNIT. The following tools are required to assemble this Brinkmann Patio Grill: • Hex Nut Wrench (included) •... - Page 22 PARTS BAG CONTENTS Make sure you have all items listed under PARTS LIST and PARTS BAG CONTENTS before you begin the installation process. Your Parts Bag will include: Phillips screwdriver PARTS BAG CONTAINS: Phillips screwdriver Spacers 14 #10 - 24 x bolts 12"...
- Page 23 Choose a good, cleared assembly Casters area. Lay cardboard down to protect grill finish. CAUTION! Some parts may contain sharp edges. Wear protective gloves if necessary. Step 1 Insert caster into right front leg. Thread #10 - 24 x 12" bolt through leg and caster and tighten securely.
- Page 24 Step 4 Top Support - Rear Attach top supports to legs using twelve #10 - 24 x 2" bolts. Top Supports - Side Step 5 Attach front panel to legs using four Front Panel #10 - 24 x 2" bolts.
- Page 25 Step 6 With the help of a friend, place the grill body assembly on top of the assembled cart frame as illustrated. WARNING: Use caution when lifting or moving your grill to prevent strains and back injuries. Moving your grill may require the help of an additional person.
- Page 26 Place grease cup in retaining brackets underneath grill body. Grease cup Step 10 Place grease pan into grill body. Fit opening in grease pan over burner. Place heat distribution plate over burner. Place cooking grill on lip of grill body. Assembled Patio Grill...
-
Page 27: Grilling Accessories
ACCESSORIES PROFESSIONAL SHISH-KABOB SKEWERS RIB RACK These heavy-duty, 18" shish-kabob skewers are extra-long for fabulous Chrome-plated rack can greatly increase the cooking restaurant style kabobs. Made of rust resistant stainless capacity of your grill. Holds ribs, chicken halves, steel to last for years. potatoes and corn vertically to triple cooking capacity. -
Page 28: Warranty Information
The Brinkmann Corporation requires reasonable proof of purchase. Therefore, we strongly recommend that you retain your sales receipt or invoice. To obtain replacement parts for your Brinkmann Gas Patio Grill™ under the terms of this warranty, please call Customer Service Department at 800-527-0717 for a Return Authorization Number and further instructions.
