  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Brinkmann 810-7231-W Owner's Manual Shop genuine replacement parts for Brinkmann 810-7231-W Find Your Brinkmann Grill Parts - Select From 1001 Models -------- Manual continues below --------...
  • Page 2 7231 Stainless Steel Gas Grill Parrilla de Gas de Acero Inoxidable OWNER’S MANUAL / MANUAL DEL PROPIETARIO ASSEMBLY AND OPERATING INSTRUCTIONS INSTRUCCIONES DE ARMADO Y OPERACIÓN SAVE THIS MANUAL FOR FUTURE REFERENCE GUARDE ESTE MANUAL PARA REFERENCIA FUTURA WARNING/ADVERTENCIA NOTICE TO INSTALLER: HAZARDOUS EXPLOSION MAY RESULT IF THESE WARNINGS AND INSTRUCTIONS LEAVE THESE INSTRUCTIONS ARE IGNORED.
  • Page 3 IMPORTANT SAFETY WARNINGS WE WANT YOU TO ASSEMBLE AND USE YOUR GRILL AS SAFELY AS POSSIBLE. THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR GRILL. WHEN YOU SEE THE SAFETY ALERT SYMBOL PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS! READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND OPERATING YOUR GRILL.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS General Warnings ..........3 Installation and LP Cylinder Specifications and Safe Use.

  • Page 5: General Warnings

    GENERAL WARNINGS WARNING • Never use natural gas in a unit designed for liquid propane gas. • Never use charcoal or wood briquets in a gas grill. Flavoring chips must be contained in a metal smoking box to contain ash and prevent fires. •...

  • Page 6: Installation And Lp Cylinder Specifications And Safe Use

    WARNING • FOR OUTDOOR USE ONLY. DO NOT operate indoors or in an enclosed area such as a garage, shed or breezeway. • Use your grill OUTDOORS in a well ventilated space away from dwellings or other buildings to prevent dangers associated with gas accumulation and toxic vapors. We recommend your grill be situated at least 10 feet (3.1 m) from buildings.
  • Page 7 CYLINDER SPECIFICATIONS: When purchasing or exchanging a cylinder for your gas grill, it must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S. Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339 Cylinders, Spheres and Tubes for Transportation of Dangerous Goods;...

  • Page 8: Connecting Lp Cylinder And Hose / Regulator To Grill

    WARNING FILLING THE LP GAS CYLINDER: • Allow only qualified LP gas dealers to properly fill or repair your LP gas cylinder. • New tanks should be purged prior to filling; inform LP gas dealer if you are using a new tank. •...
  • Page 9 WARNING • Never use your grill without leak testing all gas connections and hoses. See the section on "Leak Testing" in this manual for proper procedures. WARNING The pressure regulator and hose assembly supplied with your gas grill must be used. •...

  • Page 10: Leak Testing

    DANGER LEAK TESTING: To prevent fire or explosion hazard: • DO NOT smoke or permit ignition sources in the area while conducting a leak test. • Perform test OUTDOORS only in a well ventilated area. • Never perform a leak test with a match or open flame. •...

  • Page 11: Pre-Start Check List

    6. Check each place listed (A–K) for growing bubbles which indicates a leak. 7. Turn off gas supply at cylinder valve. 8. Turn on control knobs to release gas pressure in hose. 9. Turn control knobs to "OFF" position. 10. Tighten any leaking connections. 11.

  • Page 12: Lighting Instructions

    WARNING Read, understand and follow all warnings and instructions contained in this manual. DO NOT skip any of the warnings and instructions contained in the preceding sections of this manual. WARNING LIGHTING INSTRUCTIONS: Follow the instructions exactly. 1. OPEN THE GRILL LID before attempting to light a burner so that fumes do not accumulate inside the grill.
  • Page 13 LIGHTING THE SIDE BURNER: 1. Open lid before lighting side burner. 2. Make sure control knob is in the "OFF" position. 3. Push and turn control knob to HIGH and continue to push knob in for 2 to 3 seconds to light burner. 4.

  • Page 14: Operating Grill And Helpful Hints

    WARNING OPERATING THE GRILL: Never use charcoal or wood briquets in a gas grill. Flavoring chips must be contained in a metal smoking box to contain ash and prevent fires. Read and follow all warnings and instructions contained in the preceding sections of this manual. BREAKING IN YOUR GRILL: •...
  • Page 15 ROTISSERIE COOKING: • Your grill was pre-drilled from factory to include mounting holes for a rotisserie (sold separately). Do not use a rotisserie not specifically manufactured for this grill. • Read and follow all instructions provided with the rotisserie. Save instructions for future reference. •...

  • Page 16: Proper Care And Maintenance

    • To protect your grill from excessive rust, the unit must be kept clean and covered at all times when not in use. A grill cover may be ordered directly from Brinkmann by calling 800-468-5252 or 800-527-0717. • Wash cooking grills and heat distribution plates with hot, soapy water, rinse well and dry. Lightly coat cooking grill with vegetable oil or vegetable oil spray.
  • Page 17 CLEANING AND MAINTENANCE: • Keep the appliance free and clear of combustible materials, gasoline and other flammable vapors and liquids. • Keep the ventilation openings of the cylinder enclosure free and clear of debris. • Visually check burner flames for proper operation (see pictorial in "Burner Assembly/Maintenance" under Proper Care and Maintenance).

  • Page 18: Transporting And Storage

    COOKING GRILLS • Clean with mild soap detergent and water. A brass bristled brush or a nylon cleaning pad can be used to remove residue from the stainless steel surfaces. Do not use steel wire bristles to clean the cooking grills.

  • Page 19: Trouble Shooting

    TROUBLE SHOOTING Problem: Possible Causes: 1. Check LP cylinder fuel level. 2. Bad electrode spark. Check to see if the grill will match light. Electrode or collector may need adjustment. • Burner will not light 3. Burner may not be properly seated. 4.

  • Page 20: Frequently Asked Questions

    If the fuel line is blocked, replace with a new hose / regulator assembly. • If an obstruction is suspected in the hose / regulator assembly, orifice or gas valves call Brinkmann Customer Service at 800-527-0717. Question: Why does my LP gas grill have a low flame or a flame with orange / yellow color? Answer: You need to purge air from the gas line or reset the regulator's flow limiting device.
  • Page 21 Regulator Resetting Procedure under Connecting LP Cylinder and Hose/Regulator to Grill. This procedure should be done every time a new LP gas tank is connected to your grill. For help, refer to your owner’s manual or call Brinkmann Customer Service at 800-527-0717.

  • Page 22: Parts List And Assembly Instructions

    PARTS BAG CONTENTS Make sure you have all items listed under PARTS LIST and PARTS BAG CONTENTS before you begin the installation process. Your Parts Bag will include: Qty. Qty. 26 M6 X 12mm Bolts (Black) M6 Nuts (Black) #8 Self-Tapping Screws (Black) Wheel Axle Bolts Wheel Washers Lock Washers (Silver)
  • Page 23 ASSEMBLY INSTRUCTIONS READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR OPERATING YOUR GRILL. WE RECOMMEND TWO PEOPLE WORK TOGETHER WHEN ASSEMBLING THIS UNIT. ™ The following provided tools are required to assemble this ProSeries 7231 Gas Grill: •...
  • Page 24 FOR MISSING PARTS, PLEASE CALL CUSTOMER SERVICE AT 800-527-0717. (Proof of purchase will be required.) Inspect contents of the box to ensure all parts are included and undamaged.
  • Page 25 Choose a good, cleared assembly area and get a friend to help you put your grill together. Lay cardboard down to protect grill finish and assembly area. CAUTION! Some parts may contain sharp edges. Wear protective gloves if necessary. Step 1 Attach cart base to side cart legs.
  • Page 26 Wheel Step 5 Install the wheels as illustrated, by Hubcap inserting the wheel axle bolts Wheel axle through the wheels, washers and Washer bolt right side cart leg axle holes. Tighten axle bolts securely using hex nut wrench provided in parts pack. Step 6 Snap wheel hubcaps onto the outside of wheels as illustrated.
  • Page 27 Step 9 Attach tank heat shield to heat shield plate using one #8 self-tapping screw (black). Note: When performing Step 10, Lift grill body from front and Grill Body rear panels to avoid injury to Assembly hands and fingers. Step 10 With the help of a friend, place grill body assembly on grill cart.
  • Page 28 Step 11 Attach side table front panel to side table with two M6 nuts (black) and star washers (black). Step 12 Attach hooks to side table towel rack bar. Then attach towel rack bar to side table using two M6 X 12mm hexagonal bolts (silver) and lock washers (silver).
  • Page 29 Step 14 Attach side table to left side of cart frame assembly. Insert two M6 X 12mm bolts (black) into both left legs halfway. Place table over bolts and slide toward back of grill, then tighten securely. Fasten side table front panel to grill body with one M6 X 12mm bolt (black).
  • Page 30 Step 16 Remove two M4 bolts and spring washers from the side burner valve. Side Insert the side burner valve Burner assembly through the hole in the Valve side burner table base, then firmly Burner Venturi seat the valve nozzle into the burner venturi.
  • Page 31 Step 20 Place the side burner grate onto the side burner table. Step 21 Insert grease tray into tracks on backside of grill. Hang grease cup from brackets on botom of grease tray. Grease Cup Grease Tray Step 22 Insert tank lock wire through two small holes in cart base as illustrated.
  • Page 32 Step 23 Warming Rack Place the heat distribution plates on lower level of grill body assembly directly above burners. Cooking Grills Heat Distribution Step 24 Plates Place cooking grills on support ribs directly above heat distribution plates. Step 25 Place warming rack in grooves so that it sits above the cooking grills.

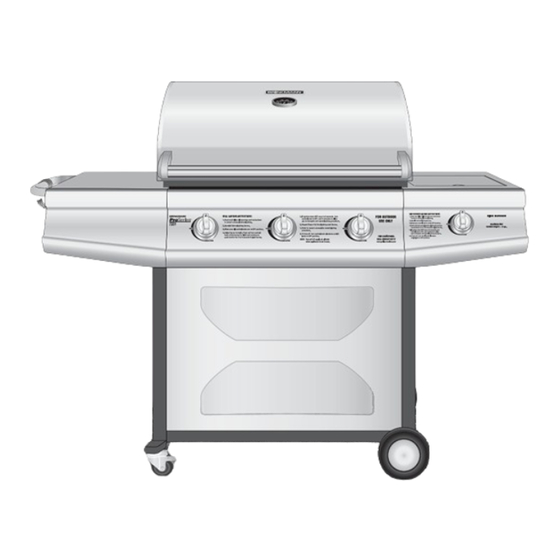

  • Page 33 ™ ProSeries 7231 (Assembled)
