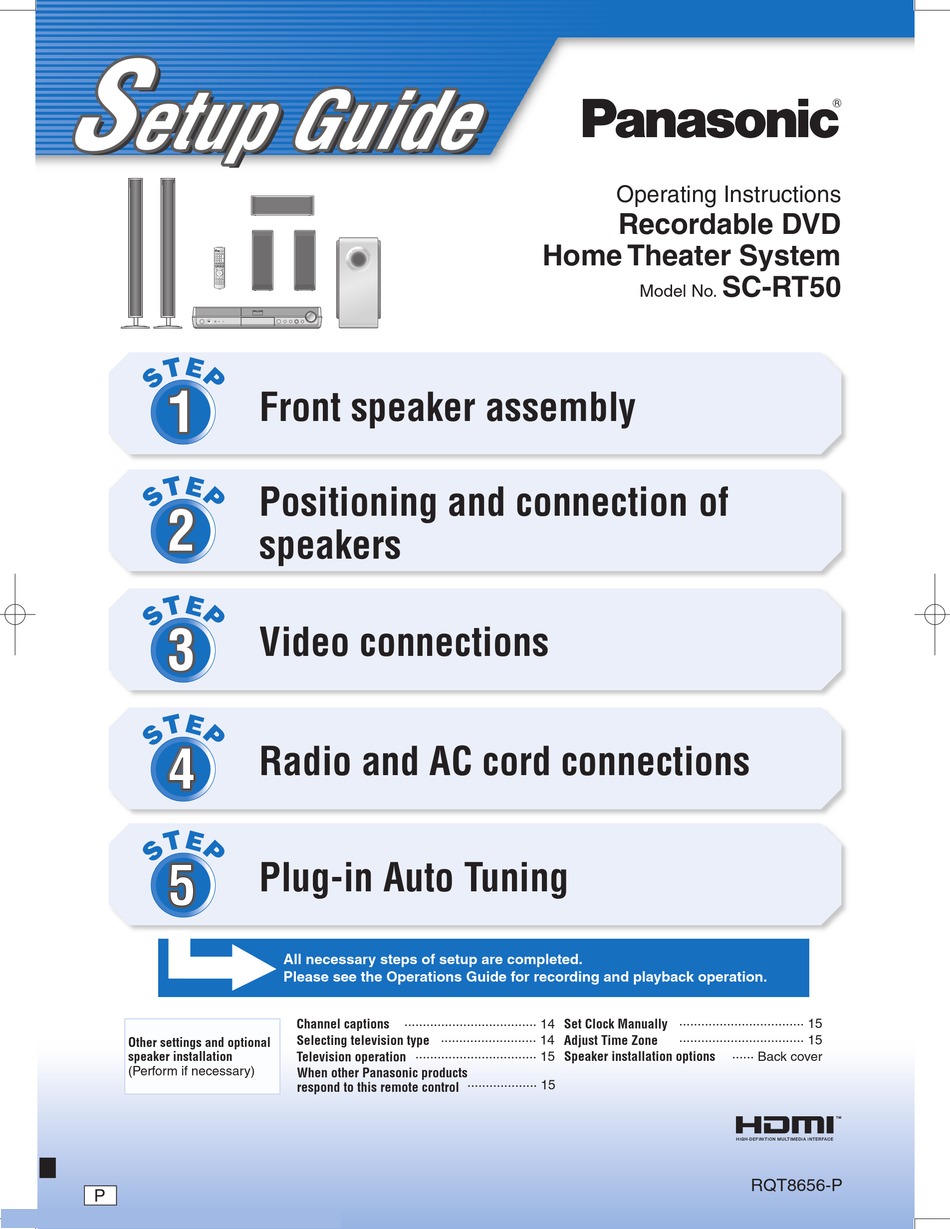

Page 1: Operating Instructions
Selecting television type Adjust Time Zone ·································· 15 ·························· 14 Other settings and optional speaker installation Television operation ································· 15 Speaker installation options ······ Back cover (Perform if necessary) When other Panasonic products ··················· 15 respond to this remote control RQT8656-P... -
Page 2: Front Speaker Assembly
Front speaker assembly Preparation For assembly, use a Phillips-head screwdriver. Make sure you have all the indicated components before starting assembly, positioning, and connection. There is no difference between the right and left speakers and stands. For optional wall mount, refer to back cover. Included parts to be used 2 Front speakers 2 Stands... - Page 3 Adjust the speaker height. Secure the stand to the base. Loosen the screws until the speaker can slide up and down the stand. Raise the speaker to the desired height, and then retighten the screws. Screw Phillips-head Tighten securely. screwdriver Secure the speaker cable to Connect the speaker cable.
- Page 4 Positioning and connection of speakers Included parts to be used 2 Sheets of speaker 4 Speaker cables Front speakers Surround speakers Center speaker Subwoofer 2short cables: For center speaker and cable stickers subwoofer 2long cables: For surround speakers CENTER FRONT SURROUND FRONT SURROUND...
- Page 5 Set your surround sound free! Optional Panasonic wireless accessory (e.g. SH-FX60) You can enjoy surround speaker sound wirelessly when you use the optional Panasonic wireless accessory (e.g. SH-FX60). For details, please refer to the operating instructions for the optional Panasonic wireless accessory.
-
Page 6: Video Connections
Video connections Main unit’s RF OUT terminal Included parts to be used The picture signal from the main unit does not go through the RF OUT terminal to the television. Make sure you connect one of the 75 coaxial Video cable Main unit following terminals on the main unit to the television: the VIDEO OUT... - Page 7 Connection with a television and cable box or satellite receiver You need to subscribe to a cable TV service to enjoy viewing their programming. Consult your service provider regarding appropriate cable TV box or satellite receiver. Cable from wall or antenna signal Television ...
- Page 8 Video connections If your television does not have a VIDEO IN terminal, RF Modulator is necessary Do the following connection instead of connection “A”–“D”. Also connect all other cables as well. Video cable (Included) Back of the main unit Television RF Modulator Connection with a VHF/UHF...
- Page 9 If the antenna connector doesn’t match Use one of the following connections to suit the antenna lead to the unit’s RF IN terminal, and the 75 coaxial cable to the antenna terminals on the equipment (television etc.). Refer to other equipment’s operating instructions. Type Main unit Other equipment (television etc.)
- Page 10 What is HDAVI Control? HDAVI Control is a convenient function that offers linked operations of this unit and a Panasonic TV (VIERA) under HDAVI Control. You can use this function by connecting the equipment with the HDMI cable. See the operating instructions for connected equipment for operational details.
-
Page 11: Radio And Ac Cord Connections
Radio and AC cord connections Included parts to be used FM indoor antenna AC power supply cord AM loop antenna Connect the antennas. AM loop antenna Click! Stand the antenna up on its base. Place the antenna where reception is best. Keep loose antenna cable away from other wires FM indoor antenna and cables. -
Page 12: Plug-In Auto Tuning
Plug-in Auto Tuning After pressing [] to turn the unit on for the fi rst time, the unit Turn on the television and select the starts necessary setup. If the setup screen does not appear, press [DRIVE SELECT], appropriate video input to suit the and turn the power off and on again. - Page 13 Press [ENTER] to start Plug-in Auto Tuning. Adding and deleting channels Set Channels Automatically After channel setting on this unit completed, you can add or delete channels if necessary channels are not set or unnecessary channels are set. Set Channels Automatically Press the numbered buttons to select Proceeding .
-
Page 14: Channel Captions
Other settings and optional speaker installation (Perform if necessary) Refer to the control reference on page 12. Manual Channel Captions Preparation Press [, ] to select “Manual Turn on the television and select the Channel Captions” and press [ENTER]. appropriate video input to suit the connections to this unit. -
Page 15: Television Operation
HST (Hawaii Standard Time) = GMT –10 remote control Press [ENTER]. When other Panasonic products placed nearby affect this unit’s The clock starts. remote control, change the remote control code on the main unit and the remote control (the two must match). -
Page 16: Speaker Installation Options
