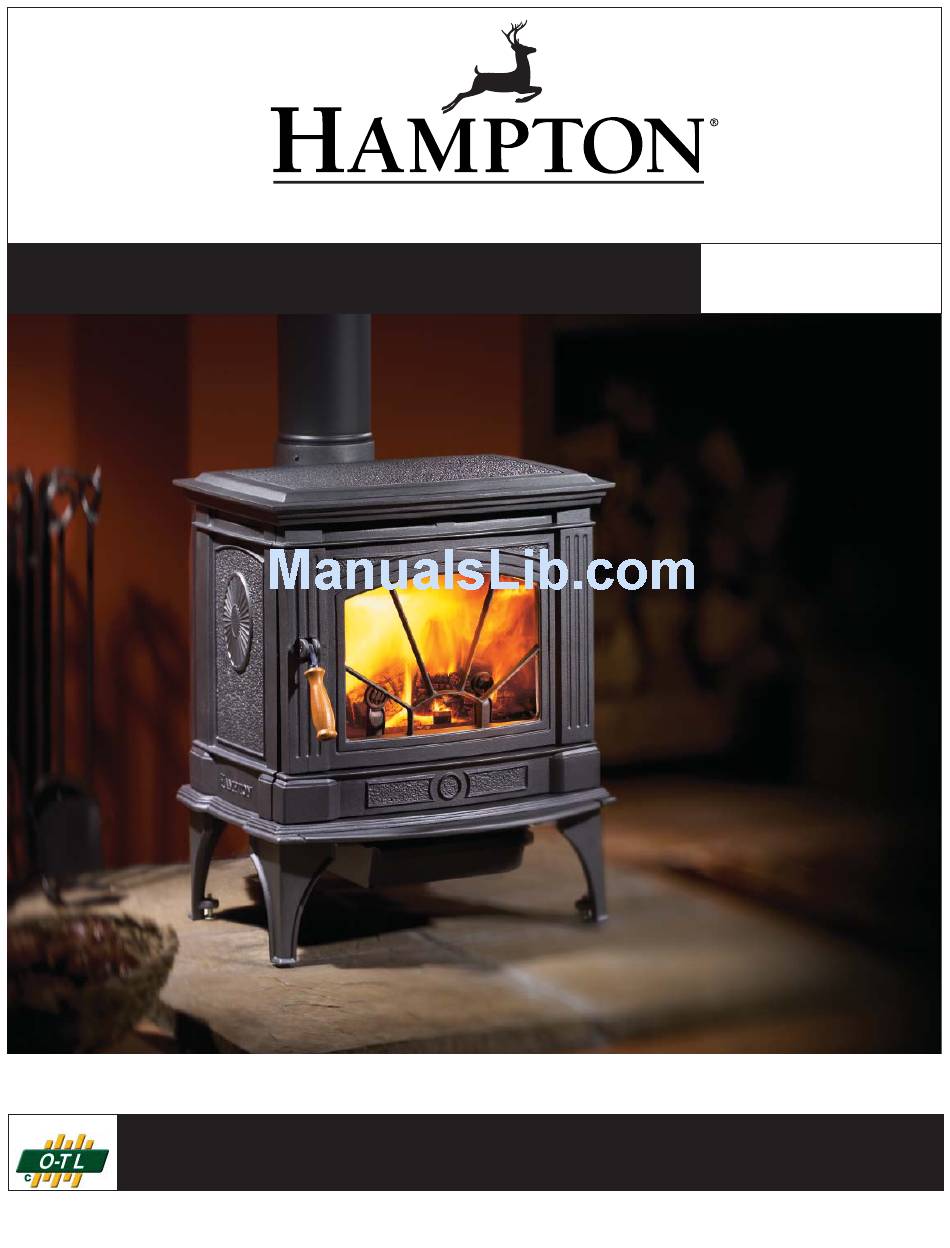

www.hampton-fi re.com
Freestanding Woodstove
Owners &
Installation Manual
MODEL:
H200
Tested by:
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
918-427a
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
04/04/08
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY H200
Summary of Contents for HAMPTON BAY H200
- Page 1 Freestanding Woodstove Owners & Installation Manual MODEL: H200 Tested by: Installer: Please complete the details on the back cover and leave this manual with the homeowner. Homeowner: Please keep these instructions for future reference. 918-427a FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4...
- Page 2 fi re offi cials, or authority having jurisdiction about restrictions and installation inspection requirements in your area. The authority having jurisdiction should be consulted before installation to determine the need to obtain a permit. Hampton H200 Cast Freestanding Woodstove...
-
Page 3: Table Of Contents
Brick Installation ...18 Door Removal...18 Optional Short Leg Installation ...18 Optional Blower/Fan Installation ...19 Optional Side Shelf Installation...20 Optional Ash Drawer Kit Installation ...21 Hampton H200 Cast Freestanding Woodstove TABLE OF CONTENTS OPERATING INSTRUCTIONS Operating Instructions ...22 Fan Operation...22 First Fire ...22 Safety Guidelines And Warnings ...23... -
Page 4: Safety Label
LISTED SPACE HEATER, SOLID FUEL TYPE, ALSO SUITABLE FOR MOBILE HOME INSTALLATION MODEL: HAMPTON CAST FREESTANDING WOOD STOVE - H200 TESTED TO: UL-1482 / ULC-S627-00 INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPERATING INSTRUCTIONS. -
Page 5: Unit Dimensions With Standard Legs
INSTALLATION UNIT DIMENSIONS WITH STANDARD LEGS Hampton H200 Cast Freestanding Woodstove... -
Page 6: Unit Dimensions With Optional Short Legs
INSTALLATION UNIT DIMENSIONS WITH OPTIONAL SHORT LEGS Hampton H200 Cast Freestanding Woodstove... -
Page 7: Pre-Installation Assembly
Bolt Washer Handle Draft Control Lever Hampton H200 Cast Freestanding Woodstove Rotating Elbow This stove can be connected to either a top or rear vent exit by simply reversing the orientation of the elbow. Simply remove the 2 screws, change the position of the elbow as desired and secure in place with screws. -
Page 8: Residential Installation
OPTIONS: These can be installed at time of installation or added later: Modular Option Adding the blower will increase the area heated by the stove, it can move warm air beyond the room where the stove Blower/Fan is installed (refer to the Optional Blower / Fan Installation section). -
Page 9: Minimum Clearance To Combustible Materials
Please read the section below carefully. Measurements "From Unit" are from the top plate of the stove to a side wall or to a corner, and from the rear heat shield to a back wall. Clearances may only be reduced by means approved by the regulatory authority. -
Page 10: Minimum Alcove Clearance To Combustible Materials
48" (1219 mm) 12" (305 mm) From Flue Min. Center-line Width 15-1/8" (384 mm) 54" (1372 mm) 50" (1270 mm) Note: Floor Protection must extend 2" (50mm) to each side of the elbow. Hampton H200 Cast Freestanding Woodstove Min.Hearth to Rear Wall... -
Page 11: Floor Protection
(like tile, concrete board, or certifi ed to UL-1618 or as defi ned by local codes) extending beneath the heater and a minimum of 6" from each side and minimum 16" from the front face of the stove and minimum 6" (or the rear clearance to combustibles whichever is smaller) from the rear of the stove. -
Page 12: Step-By-Step Chimney And Connector Installation
(where needed), insulation shield, roof fl ashing, chimney cap, etc. Maintain proper clearance to the structure as recommended by the manufac- turer. The chimney must be the required height above the roof or other obstructions for safety and proper draft operation. Hampton H200 Cast Freestanding Woodstove... -
Page 13: Masonry Chimney
There are listed kits available to connect a stove to a masonry fi replace. The kit is an adapter that is installed at the location of the fi replace damper. The existing damper may have to be removed to allow installation. Hampton H200 Cast Freestanding Woodstove INSTALLATION... -
Page 14: Combustible Wall Chimney Connector Pass-Throughs
fl ue liner. Minimum chimney clearance to brick and combustibles 2 in. (50.8mm) Minimum Masonry chimney 12 in. (304.8mm) to combustibles Hampton H200 Cast Freestanding Woodstove Minimum clearance 12 in. (304.8mm) of brick Chimney connector Fire clay... -
Page 15: Recommended Heights For Woodstove Flue
4000-5000 5000-6000 6000-7000 7000-8000 8000-9000 9000-10000 NOTE: No more than two offsets (four elbows) allowed. Two 45 Hampton H200 Cast Freestanding Woodstove RECOMMENDED HEIGHTS FOR WOODSTOVE FLUE Example: a) 1-1/2 ft. of horizontal run = 3 ft. one "T" = 3 ft. -
Page 16: Mobile Home Installation
11) WARNING: DO NOT INSTALL IN A SLEEP- ING ROOM OF A MOBILE HOME. 12) Use silicone to create an effective vapour barrier at the location where the chimney or other component penetrates to the exterior of the structure. Hampton H200 Cast Freestanding Woodstove... -
Page 17: Listed Components For Mobile Home Installation
FOR MOBILE HOME INSTALLATION The Hampton H200 Cast Freestanding unit is approved for installation in a Mobile Home if one of the following pipe systems is used. U.S. Installation* METALBESTOS SSII Qty. Part # Description 6DS-VK Connector Kit 6TMH Shield/Support... -
Page 18: Brick Installation
6) Carefully bring stove to standing position. 7) Place cast lid back on top of stove. 8) Re-install fan, if removed. 9) Place decal 918-700 (included with cast legs) on the back of the stove near the serial number decal. Hampton H200 Cast Freestanding Woodstove... -
Page 19: Optional Blower/Fan Installation
An optional blower is available for the Hampton H200. The blower is factory assembled, wired and ready for attachment to the stove. This unit must be connected to a grounded, standard 120 volts, 60 Hz electrical outlet. Never route the power cord under or in front of the unit. -
Page 20: Optional Side Shelf Installation
Bracket 3) Remove stove top. OPTIONAL SIDE SHELF INSTALLATION 4) Mount side shelf to stove and secure in place using the allen key provided to secure the 2 set screws. NOTE: Ensure that the Bracket cut-out is towards the back of the stove. -
Page 21: Hampton H200 Cast Freestanding Woodstove
fi rebox) by removing the 2 nuts and bolts holding the 2 plates together from underneath the stove. Hampton H200 Cast Freestanding Woodstove 4) Re-install bottom tray and then install the 2 ash drawer rails to the bottom tray using 4 bolts. -
Page 22: Operating Instructions
"AUTO" and the top switch to either "HIGH" or "LOW" for fan speed. This will allow the fan to turn on as the stove has come up to operating temperature. It will also shut the fan system off after the fi re has gone out and the unit cooled to below a useful heat output range. -
Page 23: Safety Guidelines And Warnings
5) Do not overfi re heater. If the chimney con- nector, fl ue baffl e or the stove top begin to glow, you are overfi ring. Stop adding fuel and close the draft control. Overfi ring can cause extensive damage to your stove including warpage and premature steel corrosion. -
Page 24: Ash Disposal
Other waste should not be placed in the ash container. 5) Before putting the ash drawer back in, ensure that the ash plug is back in place. Hampton H200 Cast Freestanding Woodstove... -
Page 25: Glass Maintenance
7) Place door back on unit. Remove 12 screws. Glass Retainer Hampton H200 Cast Freestanding Woodstove GLASS MAINTENANCE Your Hampton stove is supplied with 5 mm Neoceram ceramic glass (Part #940-345) that will withstand the highest heat that your unit will produce. -
Page 26: Front Door Gasket
1/16" each time, until fi nding the best locking position. The door latch will catch best in this way. (Listen for a double click sound when the door is locked). Bracketry at highest position Front of Bracket Hampton H200 Cast Freestanding Woodstove... -
Page 27: Top Baffl E Replacement
TOP BAFFLE REPLACEMENT 1) Lift the Top Hob off the top of the stove. Top Hob 2) Remove the fi ve (7/16) socket 1/4 x 1" hex bolts from the Firebox Top Assembly and lift off. Hampton H200 Cast Freestanding Woodstove 3) Remove the left and right baffl... -
Page 28: Parts List
DRAFT LEVER CONTROL ASSEMBLY PRIMARY AIR SLIDE GUIDE SUB BASE LEG CHARCOAL GREY LEG TIMBERLINE BROWN 1/2" GRAPHITE GASKET GASKET (3/8" WIDE X 3/16" THICK) REAR HEAT SHIELD - TOP REAR HEAT SHIELD - BOTTOM Hampton H200 Cast Freestanding Woodstove... - Page 29 Hampton H200 Cast Freestanding Woodstove PARTS LIST...
-
Page 30: H200 Door Assembly
DOOR HANDLE 12) 904-018 1/4 FLAT WASHER x 5/8 O.D. 13) 904-525 1/4 LOCK WASHER 14) 904-751 1/4-20 x 4 1/2 HEX HEAD 15) 948-155 HINGE PIN 16) 948-163 CANE BOLT LATCH (LH) H200 DOOR ASSEMBLY Hampton H200 Cast Freestanding Woodstove... -
Page 31: H200 Ash Drawer Assembly
H200 ASH DRAWER ASSEMBLY PART# DESCRIPTION 200-911 ASH DRAWER PACKAGE 1) 942-110 ASH PLUG 2) 936-236 1/2" ROPE GASKET 3) 200-232 ASH DRAWER GUIDE RIGHT 4) 200-231 ASH DRAWER GUIDE LEFT 5) 820-249 ASH PLUG TOOL HANDLE Hampton H200 Cast Freestanding Woodstove... -
Page 32: H200 Fan Assembly
FAN HOUSING FRONT 2) 220-022 FAN HOUSING BOTTOM 3) 220-036 SENSOR MOUNT 4) 200-227 FAN BRACKET RIGHT HAND 5) 200-228 FAN BRACKET LEFT HAND 6) 200-229 FAN HOUSING BACK 7) 910-157 8) 910-142 THERMODISC H200 FAN ASSEMBLY Hampton H200 Cast Freestanding Woodstove... - Page 33 NOTES Hampton H200 Cast Freestanding Woodstove...
- Page 34 NOTES Hampton H200 Cast Freestanding Woodstove...
-
Page 35: Warranty
The Warranty: Limited Lifetime H200 / H300: Firebox castings on all Hampton Wood burning Appliances are covered against manufacturer defects for a period of three (3) years parts and subsidized labour* and a further two (2) years, parts only. Stainless steel baffl es are covered against manufacturer defects for a period of three (3) years parts and subsidized labour* and parts only thereafter. - Page 36 Hampton fi replace products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit thoroughly before it leaves our door. FPI Fireplace Products International Ltd. is pleased to extend this Limited Lifetime Warranty to the original purchaser of a Hampton Product.
