Billion BiPAC 6300NXL Specification

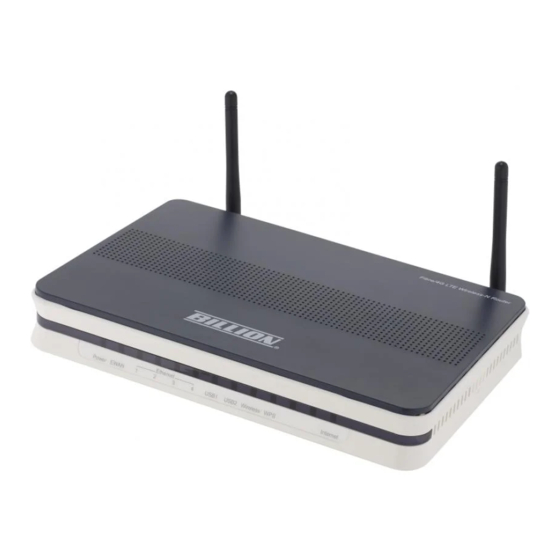

BiPAC 6300NXL
Fibre/4G LTE/Cable Gigabit Wireless-N Broadband Router
The BiPAC 6300NXL is an advanced broadband router with Gigabit LAN and WAN for home, home and residential
users that offers flexible and multiple ways to enjoy high-speed Internet connectivity The Dual WAN interface
allows connection to current superfast fibre connections (FTTC) and future ultra-fast connectivity (FTTP/FTTH),
with WAN throughput in excess of 900Mbps. Two USB ports on the rear of the router will support 3G/4G LTE
services from selected dongles for high-speed mobile connectivity. Failover between fixed line and mobile
connectivity also quickly and smoothly ensures maximum Internet uptime. With an integrated 802.11n wireless
access point and 4-port Gigabit Ethernet LAN ports, the gateway enables faster wireless speeds of up to 300Mbps
and LAN connection 10 times faster than regular 10/100Mpbs Ethernet LAN. The BiPAC 6300NXL provides a
unique Management Center, enabling users to monitor 3G/4G LTE signal strength, bandwidth, download speed,
and much more.
3G/4G Mobility and Always-On Connectivity
With the BiPAC 6300NXL you can connect a 3G/4G LTE USB modem to either one or both of its built-in USB ports,
allowing you to watch movies, download music or access e-mail no matter where you are. You can even share
your Internet connection with others, when away on business, at a show, or wherever there is mobile signal but
no fixed line access. In addition, the auto failover feature ensures maximum connectivity and minimum interruption
by quickly and smoothly connecting to a 3G/4G LTE network in the event that your fixed line fails. The BiPAC
6300NXL will then automatically reconnect to the fixed line connection when it's restored, ideal for office situations
where a constant and uninterrupted connection is critical.
Wireless Mobility and Security
With an integrated 802.11n Wireless Access Point, the router delivers up to 3 times the wireless coverage of a
802.11b/g network device, so that wireless access is available everywhere in the house or office. If your network
requires wider coverage, the built-in Wireless Distribution System (WDS) allows you to expand your wireless
network without additional wires or cables. The BiPAC 6300NXL also supports the Wi-Fi Protected Setup (WPS)
standard and allows users to establish a secure wireless network just by pressing a button. Multiple SSIDs allow
users to access different networks through a single access point. Network managers can assign different policies
and functions for each SSID, increasing the flexibility and efficiency of the network infrastructure.
3G/4G LTE Management Center
The BiPAC 6300NXL Cellular Management Center visually displays its current 3G/4G LTE signal status and
upload/download speed. It also calculates the total amount of hours or data traffic used per month, allowing you
to manage your 3G/4G LTE monthly subscriptions.
IPv6 Ready - Pathway to the Future
The BiPAC 6300NXL fully supports IPv6 (Internet Protocol Version 6), launched as the current IPv4 range is filling
up, and IPv6 is gradually becoming the indispensable addressing system for savvy cloud computing users. Dual
stack means the router is capable of running IPv4 and IPv6 in parallel during the transition period. With Billion IPv6
enabled devices, three major transition mechanisms such as Dual-Stack, Dual-Stack Lite, and 6RD (IPv6 rapid
deployment) are supported to be adapted easily into service provider's IPv4/IPv6 network.
300
M bps
Fail Over
WPA/WPA2
Gigabit
● Dual-WAN ports - Gigabit Ethernet WAN
(EWAN) and 3G/4G LTE for broadband
connectivity
● Auto failover feature to ensure an always-on
connectivity
● 802.11n wireless AP with high-speed
wireless connection up to 300Mbps data
rate
● Supports Wi-Fi Protected Setup (WPS) and
WPA-PSK/WPA2-PSK
● Gigabit WAN and LAN
● 4-port Gigabit Ethernet switches
● Fibre (FTTC/FTTP/FTTH) ready with high
WAN throughput
● IPv6 ready (IPv4/IPv6 dual stack)
● Dual-Stack Lite and 6RD (IPv6 rapid
deployment)
● Two USB ports for NAS and 3G/4G LTE
USB modem
● QoS for traffic prioritization and bandwidth
management
● Multiple wireless SSIDs with wireless guest
access and client isolation
● Supports IPTV applications
● Ideal for SOHO, office, and home users
*1
3G/4G LTE
Fibre
Ready
*1
*2
