Billion 6300NXL Quick Start Manual

Hide thumbs Also See for 6300NXL:

How to setup your Billion 6300NXL Radio Router

What is in the box:

•

1 Welcome letter including a setup guide

•

1 Router

•

1 Power Lead

•

1 Yellow Ethernet Lead

•

1 Blue Ethernet Lead

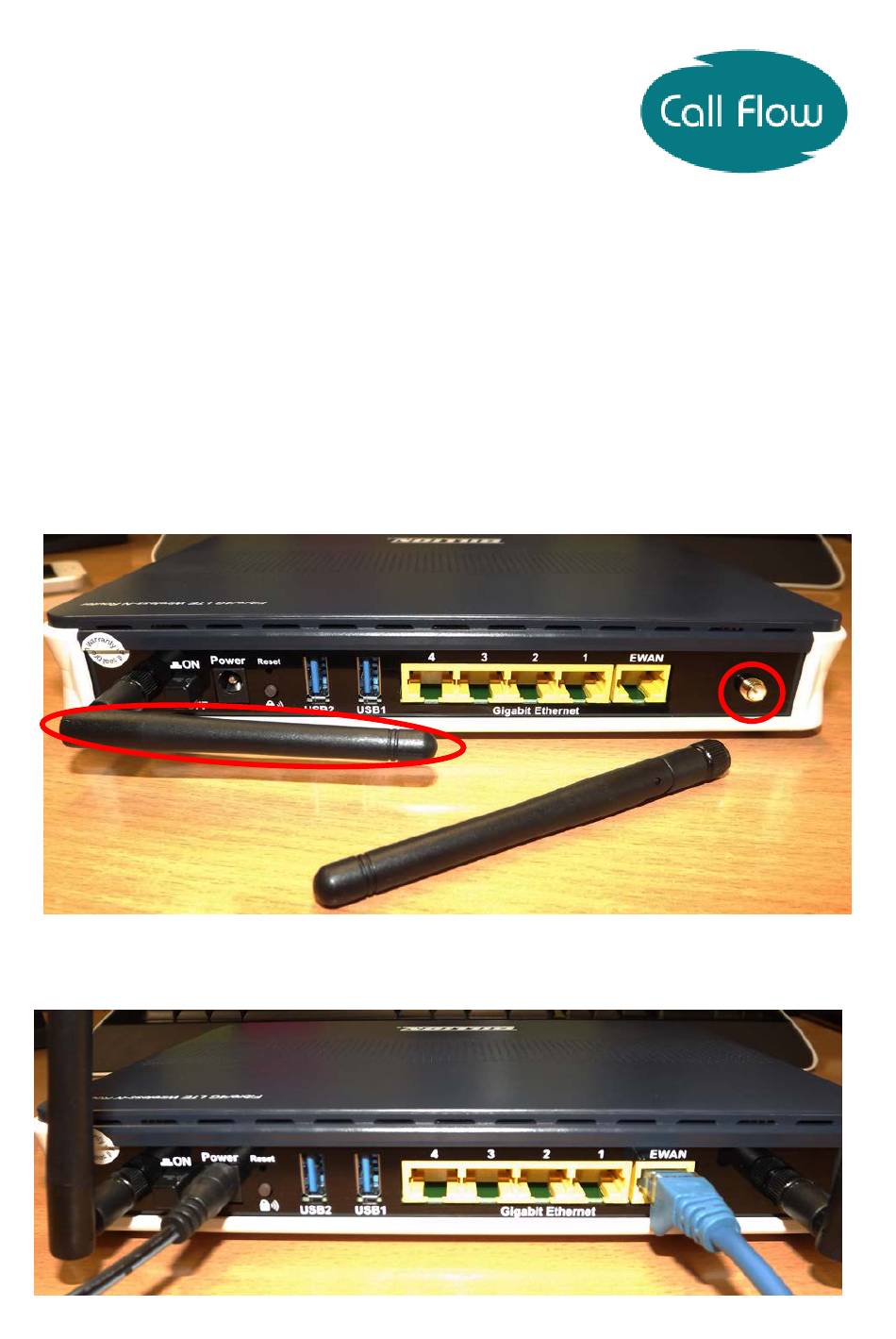

1) Take your router out of the box and you will need to screw on the two aerials. Once this has

been completed, connect the power lead to the router, please do not turn it on until you

have all other leads connected.

Please see image below:

2) Connect your Blue Ethernet Lead into the

Please see image below:

blue

EWAN port on the back of the router.

Table of Contents

Do you have a question about the 6300NXL and is the answer not in the manual?

Page 1 How to setup your Billion 6300NXL Radio Router What is in the box: • 1 Welcome letter including a setup guide • 1 Router • 1 Power Lead • 1 Yellow Ethernet Lead • 1 Blue Ethernet Lead Setting up 1) Take your router out of the box and you will need to screw on the two aerials.
Page 2 3) The blue lead then connects into the Radio’s power supply (Also known as an IDU). Alvarion The black Ethernet cable goes off to the aerial and must be in the ‘Radio’ port in the end of the power supply, this is placed at the top. The power cable is connected at the bottom and the blue cable plugs into the ‘Ethernet’...
Page 3 4) If you wish to connect a device hardwired, you will need to use the Yellow Ethernet Lead provided with the router and connect it to one of the 4 Yellow ETH ports available. 5) Once all of the cables have been connected, you are now able to switch on the power on the router, leave the router for 10-15 minutes and once all of the lights are on like shown below, you are able to start using your broadband with Call Flow.
