Security Command XT30 User Manual page 8

The Select keys
Security Command™, Thinline™, Aqualite™, and Icon
Keypads:

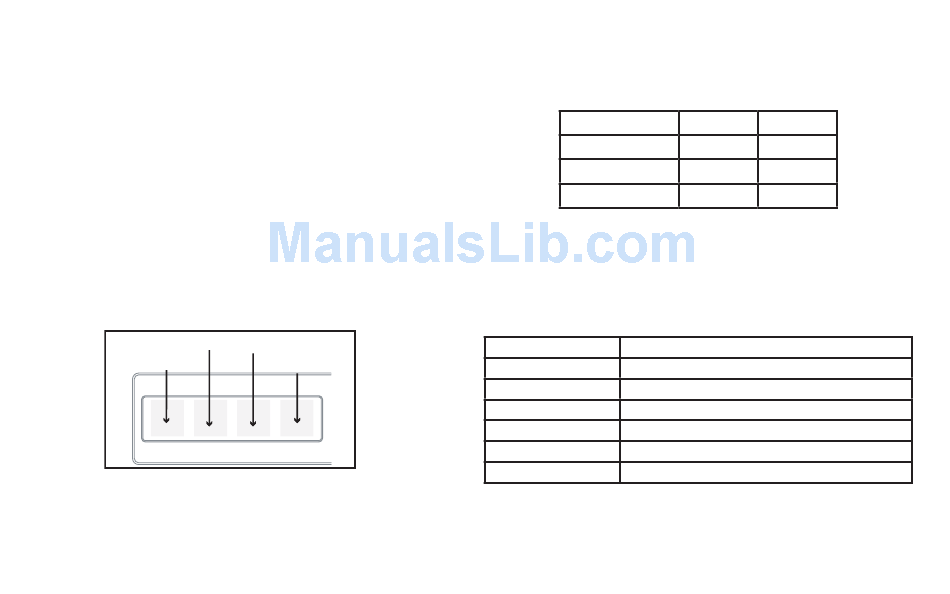

There are four keys under the display called the Select keys. These
keys are one of the features that make your system so easy to
operate. They allow you to make selections by pressing the Select
key under a choice shown in the display.
Note: For the purposes of this guide, when instructed to press
the first Select key, press the far left Select key; the second
Select key is the second from the left; third Select key is second
from the right; and the fourth Select key is the far right key.
Clear Touch™ Keypads:
There are four Select Areas in the display. These Select Areas are
one of the features that make your system so easy to operate.
They allow you to make selections by touching the area to choose
the item in the display.
Select Area 2
Select Area 1
32-Character Display
Touch Select Areas
Note: For the purposes of this guide when using Clear Touch™
Keypads, when instructed to press the first Select key, touch
Select Area 1; the second Select key touch Select Area 2; third
Select key touch Select Area 3; and the fourth Select key touch
Select Area 4.
4
Select Area 3
Select Area 4
XT30/XT50 User's Guide
Power/Armed LED
Security Command™, Thinline™, and Aqualite™ Keypads:
The Power LED indicates the panel Power status. It is recommended
you contact the service department when the Power LED is off or
blinks.
LED Operation
ON (Steady)
OFF
BLINKS
The Armed LED is ON steady anytime any burglary protection area
is armed and is OFF when ALL areas are disarmed.
Clear Touch™ Keypads:
The LED indicates the Power and Armed status of the panel.
Depending on the operation, the LED displays in Red or Blue as
listed in the table.
Color and Activity LED Operation
Blue Steady Panel Disarmed, AC Power OK, Battery OK
Blue Blinking Panel Disarmed, AC Power OK, Battery Fault
No Light Panel Disarmed, AC Power Fault, Battery OK
Red Steady Panel Armed, AC Power OK, Battery OK
Red/Blue Alternate Panel Armed, AC Power OK, Battery Fault
Red Blinking Panel Armed, AC Power Fault, Battery OK
AC Battery
OK OK
Trouble N/A
OK Trouble
