- Page 1 User’s Guide XT30/XT50...
-
Page 2: Silencing An Alarm
Silencing an Alarm When the alarm bell or siren is sounding, enter your user code or present your card to a keypad or reader during the Status List display. All/Perimeter or Home/Sleep/Away System CANCEL VERIFY displays. • If a burglar alarm is valid, press VERIFY to send a verification message to the Central Station. • If a valid alarm has not occurred, press CANCEL to cancel the alarm and send an Abort or Cancel message to the Central Station. -
Page 3: Table Of Contents
XT Series User’s Guide ™ for XT30/XT50 Series Panels Table of Contents Section Page Section Page Silencing an Alarm ......Inside front cover User Menu ...............21 Accessing the User Menu ..........21 Introduction ..............1 User Menu Options ............21 About Your Security System ..........1 User Check-in .............. - Page 4 Appendix C ..............39 User’s Guide ..............39 Entering User Names ............ 41 Appendix D ..............42 Email/Cell Phone Message User’s Guide ......42 PhoneAccess™ User’s Guide .......... 43 Common Keypad Displays ..........44 Quick Reference Wallet Cards .........47 XT30/XT50 User’s Guide...
-
Page 5: Introduction
The keypad provides a simple User Menu containing all of the functions you need to fully operate your system such as changing the time of day or a personal user code. XT30/XT50 User’s Guide... -
Page 6: Emergency Evacuation Plans
A fire alarm system installation, with smoke and carbon authorities. Never enter a building to look for someone. monoxide detectors in each room, can greatly decrease your risk of loss or injury. XT30/XT50 User’s Guide... -

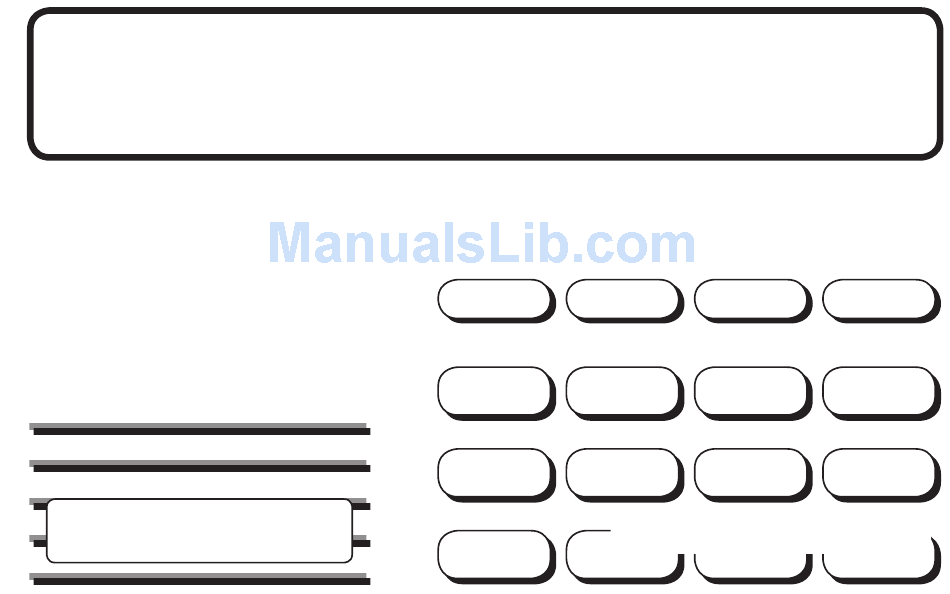

Page 7: Dmp Keypads
F R I 2 51 A A M Backlit Logo and Proximity Antenna COMMAND Key Logo Back Arrow Key Icon Data Entry Digit keys Three Panic Icons Back Arrow Key COMMAND Key Thinline™/Aqualite™ Keypad Clear Touch™ Keypad Introduction XT30/XT50 User’s Guide... - Page 8 The Select keys Power/Armed LED Security Command™, Thinline™, Aqualite™, and Icon Security Command™, Thinline™, and Aqualite™ Keypads: The Power LED indicates the panel Power status. It is recommended Keypads: you contact the service department when the Power LED is off or There are four keys under the display called the Select keys.
- Page 9 7/0 Panic Function Security Command™, Thinline™, and Aqualite™ Keypads: Security Command™ Keypad Panic Keys Security Command™, Thinline™, and Aqualite™ Keypads may also be programmed at installation to allow the user to initiate an optional Top Row Select Keys Panic alarm by simultaneously pressing and holding the 7 and 0 (zero) keys.
-
Page 10: Common Keys On All Keypads
The COMMAND key allows you to advance through the keypad to maximum intensity whenever a key is pressed. displays, User Menu, or complete a data entry function. On Security Command™, Thinline™, or Aqualite™ keypads this Back Arrow (<— ) key sets the LCD display, AC LED, and keyboard backlighting brightness The Back Arrow (<—) key is used to go back through the keypad... -
Page 11: Special Keypad Tones
Your system will silence the tone as soon as the first user code digit key is pressed. If a valid user code is not entered within 5 seconds or an invalid user code is entered, the prewarn tone begins sounding again. Introduction XT30/XT50 User’s Guide... -
Page 12: Dmp Wireless
The key Key Fob Examples and zone is faulted. Your system may sound bells or sirens. fob may not complete sending the Button Names signal for the button press if another button is pressed too soon. XT30/XT50 User’s Guide Introduction... -
Page 13: Email/Cell Phone Messages
Fire, panic, and other 24-hour devices are always turned on and do There is a problem with a protection device or system component. not need to be armed. This display is accompanied by a description of the problem. Introduction XT30/XT50 User’s Guide... - Page 14 Status List. 24-Hour Zone The burglary zone alarm remains in the Status List until it is cleared by disarming the system. A 24-hour zone is not turned on or off by arming or disarm ing your XT30/XT50 User’s Guide Introduction...
- Page 15 If the open condition is not corrected, an alarm and exit error is reported to the central station. The Exit Error feature allows the central station to acknowledge the arming error without dispatching the police on a false alarm. Introduction XT30/XT50 User’s Guide...
-
Page 16: Arming And Disarming
ON or SLEEP SYSTEM ON if only selected areas are arming. Regardless of which mode is programmed, much of the operation is similar. Throughout this guide, any differences between the systems are noted for your convenience. XT30/XT50 User’s Guide Arming and Disarming... -
Page 17: Key Fob Arming
LOCAL ALARM ONLY before displaying the armed message. Arming Report: Your system may be pre-programmed at installation to send arming or zone bypass reports to a central station. Arming and Disarming XT30/XT50 User’s Guide... -
Page 18: Area System Disarming
If you choose to disarm selected areas, the names of those areas display on the keypad. 7c. Select BYPASS to bypass the zone(s) before arming. Note: 24-hour zones cannot be bypassed. XT30/XT50 User’s Guide Arming and Disarming... -
Page 19: All/Perimeter System Arming
To remove an area number from the display, press its exit zones. However, no entry delay is provided and an alarm corresponding number on the keypad. Press COMMAND immediately occurs should an entry door be opened. when done. Arming and Disarming XT30/XT50 User’s Guide... -
Page 20: All/Perimeter System Disarming
If the entire system is armed, the keypad sounds the installation to send a report of the system disarming to the central exit delay alert and when the delay expires, all zones are sta tion. armed. XT30/XT50 User’s Guide Arming and Disarming... -
Page 21: Home/Away System Arming
Arm Sleep — Press 7 for 2 seconds to arm the perimeter and interior areas and leave the bedroom area off. If the alarm is valid, select VERIFY to send a verify message Arm Away — Press 1 for 2 seconds. to the Central Station. Arming and Disarming XT30/XT50 User’s Guide... -
Page 22: Home/Away System Disarming
Central Sta tion Report: Your system may be pre-programmed at installation to send a report of the system disarming to the central sta tion and/or to your email address or cell phone. XT30/XT50 User’s Guide Arming and Disarming... -
Page 23: Keypad Shortcut Keys
Press Key 7 The keypad displays ALARM CANCELLED then ALL SYSTEM OFF to confirm the system is disarmed. Press Key 8 Easy Exit for Home/Sleep/Away systems If the alarm is valid, select VERIFY to send a verify message to the Central Station. Arming and Disarming XT30/XT50 User’s Guide... - Page 24 You can also press the Easy Exit, shortcut key 8 again, to cancel the exit delay countdown. For example, the telephone rings before you retrieve the newspaper so you press shortcut key 8 to rearm the system. XT30/XT50 User’s Guide Arming and Disarming...
-
Page 25: User Menu
User Menu Options DISPLAY EVENTS Allows you to view the last 100 events The following list shows the User Menu options in order: on the XT30 and 200 events on the XT50 that occurred on your system. Menu Option Description... -
Page 26: User Check-In
Activity Check Disabled message to the central station. 3. When YES is selected, the keypad displays CHECK ENABLED for four seconds and then sends the Activity Check Enabled message to the central station. XT30/XT50 User’s Guide User Menu... -
Page 27: Sensor Reset
Refer back to step 5. required, to reset the system. To exit the Output menu option, press the Back Arrow key until you return to the keypad Status List. User Menu XT30/XT50 User’s Guide... -
Page 28: Bypass Zones
This initiates the Zone Monitor operation for all Exit zones in an Area system or all zones assigned to the perimeter in a Home/ Sleep/Away or All/Perimeter system. The keypad displays MONITOR ON and chimes or displays MONITOR OFF and no tone is sounded. XT30/XT50 User’s Guide User Menu... -
Page 29: Using The Zone Monitor Function
Zone Monitor mode. This allows you to open and then close each protected door and window while listening for the keypad to beep confirming its operation. See Zone Monitor. User Menu XT30/XT50 User’s Guide... -
Page 30: User Codes
(XT50 Only) (XT50 Only) (XT30/XT50) (XT30/XT50) User Number - The XT30 panel supports 30 users while the XT50 Door Access panel supports 99 users. Each user is numbered from 1 to 30 or Arm and Disarm 1 to 99. This number identifies them to the system and can be... - Page 31 COMMAND. See Entering Names in Appendix C. Select NO to allow this user to arm and disarm the system and access all Standard level functions in the FOR XT30 Panels: User Menu. 8. The display changes to MASTER? NO YES. Select YES to Select YES to restrict this user to arming only.
-
Page 32: Changing User Codes
Refer to item number 10 in the Adding User Codes section on the previous page. Note: Changing a user code does not change the user number. User number 2 may have their user code changed from 1234 to 5678 but they are still user number 2. XT30/XT50 User’s Guide User Menu... -
Page 33: Schedules
Permanent schedules are used for automatic arming and disarming and the User Menu. always occur at the same time until you change or delete them. Extend schedules allow an authorized user to extend the present day's permanent scheduled closing time. User Menu XT30/XT50 User’s Guide... -
Page 34: Extending Schedules
5. The keypad displays SUN MON TUE WED. Press the COMMAND key to display THU FRI SAT. 6. Select the day you want to program. Note: After selecting the day of the week for the schedule XT30/XT50 User’s Guide User Menu... -
Page 35: Date And Time
Display User Code Level: Master, Standard, Limited, or Scheduled. Events. Function: Allows you to view up to 100 (XT30) or 200 (XT50) past Setting the Date and Time events that occurred on your system from any keypad. Any event 1. -
Page 36: System Setup
___________ _______________________________________ Your system sends Ambush reports. Yes No ___________ _______________________________________ ___________ _______________________________________ Use the Output number in the User Menu when using the Outputs On Off option to manually operate the relays. XT30/XT50 User’s Guide System Setup... -
Page 37: Key Fob Button Programming
User Codes Enter the user name assigned to each key fob and the button action The XT30 system provides 32 user codes you can program for programmed for each button in the table below. Refer to the individual users and the XT50 system provides 99. As you add new Introduction and Appendix B for more information. - Page 38 1 2 3 4 * Master (MST) Standard (STD) 1 2 3 4 Limited (LTD) Scheduled (SCH) 1 2 3 4 (Photocopy this page before using.) 1 2 3 4 Circle Your Selections XT30/XT50 User’s Guide Appendix...
-
Page 39: Appendix A
Display Events allows you to view up to 100 (XT30) or 200 (XT50) past events that occurred on your system from any keypad. Any event older than 45 days automatically clears from the system memory. -
Page 40: Zone Event Displays
11:41A 10/17 US:19 BY US:12 User Code Event Types - There are three event types you may see here: ADD - User added DEL - User deleted CHG - User code or authority level was changed. XT30/XT50 User’s Guide Appendix... -
Page 41: Supervisory Event Displays
AC POWER BATTERY Keypad Display Description A DMP wireless receiver trouble 11:41A 10/17 occurred on October 17 at 11:41 WIRELESS Wireless Trouble Event Types - There are two event types: TBL - Trouble RST - Restore Appendix XT30/XT50 User’s Guide... -
Page 42: Appendix B
Emergency, Emergency 2, Output, or Sensor Reset, a 1/2 second Green light displays to acknowledge the button press. • When the button is programmed for Arm, Disarm, Toggle (Arm/Disarm), or Status, the system armed status is received by the key fob and the LED lights once as shown in the table below. XT30/XT50 User’s Guide Appendix... -
Page 43: Appendix C
ENTER CODE: – DISARM either option. The keypad displays ENTER CODE: -. Present your card to the reader. Once system validates card, areas accessible by you arm or disarm automatically and the Door Strike relay activates. Appendix XT30/XT50 User’s Guide... - Page 44 See Arming and Disarming above and on the previous page. Using the access reader for user menu access You can also use a card reader to access the User Menu when MENU? NO YES displays. XT30/XT50 User’s Guide Appendix...
-
Page 45: Entering User Names
Pressing the 9 key provides you Pressing the 0 (zero) key provides with Y, Z, and a space to use you with a – (dash), . (period), between names. For example: * (asterisk), and a # (pound sign). BOB SMITH. Appendix XT30/XT50 User’s Guide... -
Page 46: Appendix D
Each alarm message will be detailed in the following way: * Fire = Fire Alarm * Burglary = Burglary Alarm * Panic = Panic Alarm * All other types = Alarm XT30/XT50 User’s Guide Appendix... -
Page 47: Phoneaccess™ User's Guide
User’s Guide. out PhoneAccess™ until a valid user code is entered at a This exciting feature allows you to call your XT30/XT50 system keypad. from any outside touch-tone phone to arm and disarm protection 4. -
Page 48: Common Keypad Displays
The panel is unable to communicate with the wireless receiver. verify the receiver is properly connected to the panel. WIRELESS TROUBLE verify the correct House Code is programmed in System Options. The wireless receiver is missing. XT30/XT50 User’s Guide Appendix... - Page 49 Emergency Evacuation Plans 2 Keypad Back Arrow (<—) Key 6 ENTER CODE display 9 2-Button Panic Keys 5 Backlighting 6 Entering User Names 41 Alarm 8 Bypassing zones 12, 18, 21, 24 Entry Delay 40 Aqualite™ 3 Index XT30/XT50 User’s Guide...
- Page 50 Select Keys 4 Change Event Display 36 Output 30 Shortcut Keys 19 Changing 28 Permanent 29 SYSTEM TROUBLE 9 Deleting 28 Security Command™ Keypad 1 Thinline™ 3 Names 26, 41 Displays 8 Tones 7 Table 34 LEDs 3 Types 3...
-
Page 51: Quick Reference Wallet Cards
Quick Reference Wallet Cards PhoneAccess™ Quick Commands Press For this action You will hear # then 1 Arm all 3 short beeps Note: Zones # then 2 Arm Perimeter 1 short beep in a faulted # then 3 Arm Perimeter/Interior 2 short beeps condition # then 0... - Page 52 1. Call the panel phone number. The panel answers and sounds one short tone. 2. Enter your code within eight seconds. One beep means the code is good. Four short beeps means enter it again. You have three tries. 3. You have 30 seconds to enter the first command (see other side) and 30 seconds for each additional command.
- Page 53 .This page intentionally left blank.
- Page 54 LT-0982 1.01 8283...
