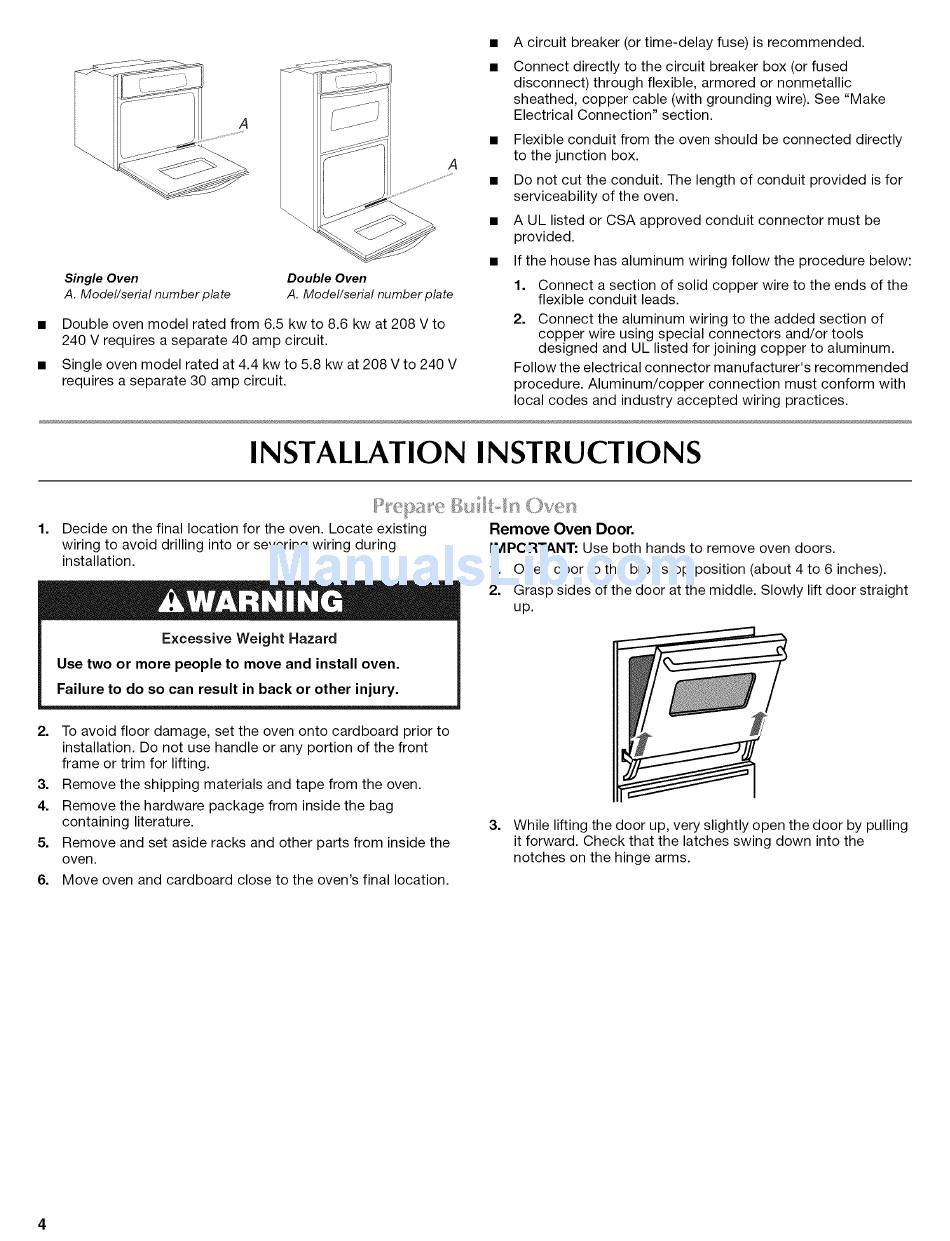

A
A
Single Oven
A. Model/serial
number plate
Double
Oven
A. Model/serial
number plate
Double oven model rated from 6.5 kw to 8.6 kw at 208 V to
240 V requires a separate 40 amp circuit.
Single oven model rated at 4.4 kw to 5.8 kw at 208 V to 240 V
requires a separate 30 amp circuit.
A circuit breaker (or time-delay fuse) is recommended.
Connect directly to the circuit breaker box (or fused
disconnect) through flexible, armored or nonmetallic
sheathed, copper cable (with grounding wire). See "Make
Electrical Connection"
section.
Flexible conduit from the oven should be connected directly
to the junction box.
Do not cut the conduit. The length of conduit provided is for
serviceability of the oven.
A UL listed or CSA approved conduit connector must be
provided.
If the house has aluminum wiring follow the procedure below:
1. Connect a section of solid copper wire to the ends of the
flexible conduit leads.
2. Connect the aluminum wiring to the added section of
copper wire using special connectors
and/or tools
designed and UL listed for joining copper to aluminum.
Follow the electrical connector manufacturer's
recommended
procedure. Aluminum/copper
connection must conform with
local codes and industry accepted wiring practices.
INSTALLATION
INSTRUCTIONS
1.
Decide on the final location for the oven. Locate existing
wiring to avoid drilling into or severing wiring during
installation.
Excessive Weight Hazard
Use two or more people to move and install oven.
Failure to do so can result in back or other injury.
Remove
Oven Door.
IMPORTANT: Use both hands to remove oven doors.
1. Open door to the broil stop position (about 4 to 6 inches).
2. Grasp sides of the door at the middle. Slowly lift door straight
up.
2. To avoid floor damage, set the oven onto cardboard prior to
installation. Do not use handle or any portion of the front
frame or trim for lifting.
3. Remove the shipping materials and tape from the oven.
4. Remove the hardware package from inside the bag
containing
literature.
5. Remove and set aside racks and other parts from inside the
oven.
3. While lifting the door up, very slightly open the door by pulling
it forward. Check that the latches swing down into the
notches on the hinge arms.
6. Move oven and cardboard close to the oven's final location.
