24" (61.0 cm) electric single and double built-in oven
Hide thumbs

Advertisement

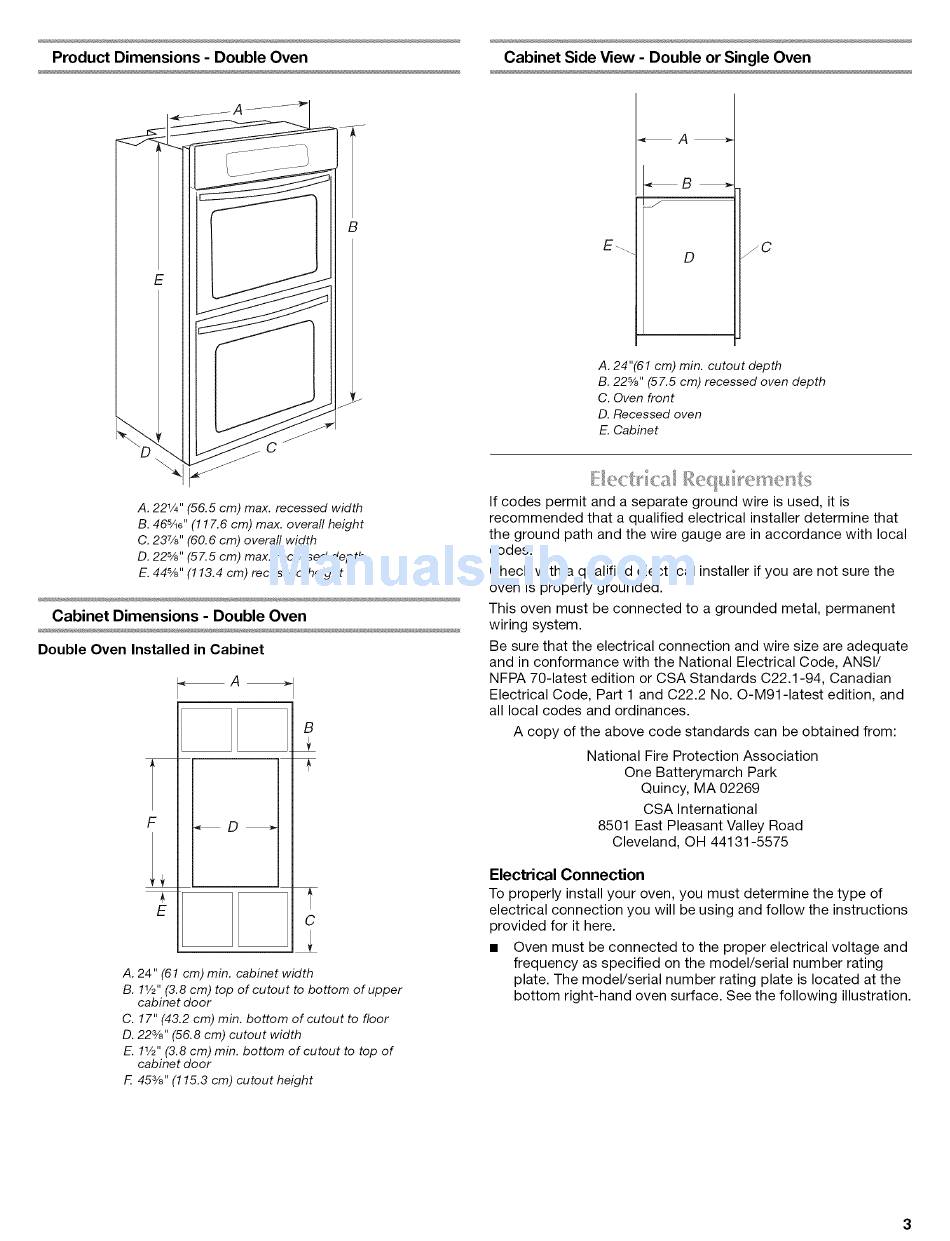

Product Dimensions - Double Oven
B
Cabinet Side View - Double or Single Oven
E_
D
_C
A. 221/4'' (56.5 cm) max. recessed width
B. 46%6" (117.6 cm) max. overafl height
C. 237/8'' (60.6 cm) overafl width
D. 22%" (57.5 cm) max. recessed depth
E. 44%" (113.4 cm) recessed height
Cabinet Dimensions - Double Oven
Double Oven Installed in Cabinet
F
E
A
B
C
A. 24" (61 cm) min. cabinet width
B. 11/2 '' (3.8 cm) top of cutout to bottom of upper
cabinet door
C. 17" (43.2 cm) min. bottom of cutout to floor
D. 223/8'' (56.8 cm) cutout width
E. 11/2 '' (3.8 cm) min. bottom
of cutout to top of
cabinet door
F. 453/8'' (115.3 cm) cutout height
A. 24"(61 cm) min. cutout depth
B. 22%" (57.5 cm) recessed oven depth
C. Oven front
D. Recessed oven
E. Cabinet
If codes permit and a separate ground wire is used, it is
recommended
that a qualified electrical installer determine that
the ground path and the wire gauge are in accordance
with local
codes.
Check with a qualified electrical installer if you are not sure the
oven is properly grounded.
This oven must be connected to a grounded metal, permanent
wiring system.
Be sure that the electrical connection and wire size are adequate
and in conformance
with the National Electrical Code, ANSI/
NFPA 70-latest edition or CSA Standards C22.1-94, Canadian
Electrical Code, Part 1 and C22.2 No. O-M91-1atest edition, and
all local codes and ordinances.
A copy of the above code standards can be obtained from:
National Fire Protection Association
One Batterymarch
Park
Quincy, MA 02269
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
Electrical
Connection
To properly install your oven, you must determine the type of
electrical connection you will be using and follow the instructions
provided for it here.
Oven must be connected to the proper electrical voltage and
frequency as specified on the model/serial
number rating
plate. The model/serial
number rating plate is located at the
bottom right-hand oven surface. See the following illustration.
