ELECTRIC DRYER
27" WIDE
INSTALLATI N INSTR
MODELS - U.S.A. ONLY
CTIONS
Para obtener acceso al manual de uso y cuidado en espa_ol, o para obtener informaci6n adicional acerca de su producto, visite:
www.whirlpool.com
Tenga listo su nOmero de modelo completo. Puede encontrar el nOmero de modelo y de serie dentro de la cavidad superior de la puerta.
Table of Contents
DRYER SAFETY .........................................................................
2
.............................................
3
Tools and Parts ......................................................................
3
.........................................................
3
........................................................
4
Install Leveling Legs ..............................................................
6
Electrical Connection ............................................................
7
VENTING ...................................................................................
13
.........................................................
13
Plan Vent System .................................................................
14
Venting Kits ..........................................................................
14
Install Vent System ..............................................................
15
Vent ........................................................................
15
Level Dryer ...........................................................................
16
.........................................
16
Reverse Door Swing (Optional) ..........................................
17
...................................................................
18
W10096988A
W10306460A=SP
Advertisement
Table of Contents
Related Manuals for Maytag MEDX600XW0
Summary of Contents for Maytag MEDX600XW0
-
Page 1: Table Of Contents

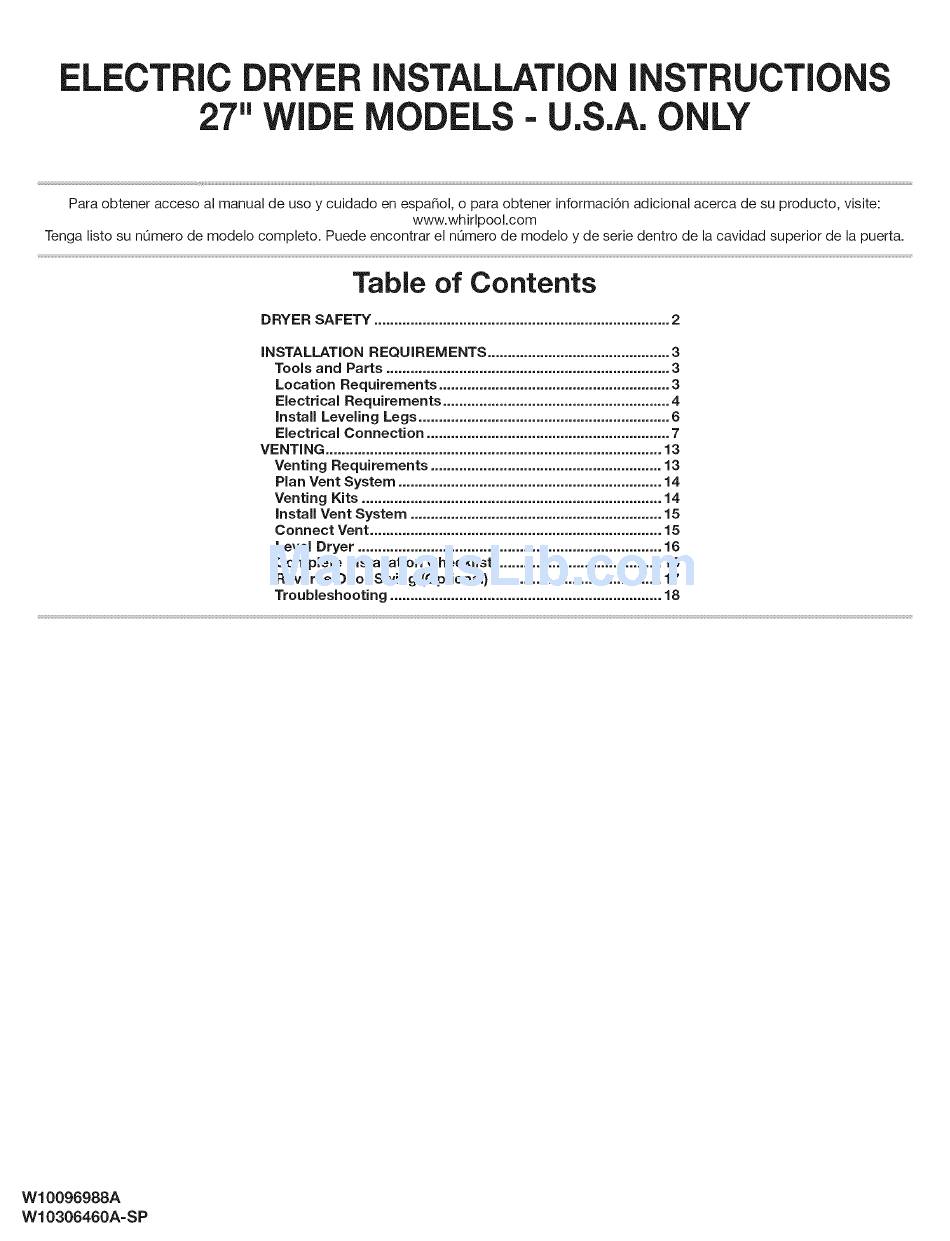

ELECTRIC DRYER INSTALLATI N INSTR CTIONS 27" WIDE MODELS - U.S.A. ONLY Para obtener acceso al manual de uso y cuidado en espa_ol, o para obtener informaci6n adicional acerca de su producto, visite: www.whirlpool.com Tenga listo su nOmero de modelo completo. Puede encontrar el nOmero de modelo y de serie dentro de la cavidad superior de la puerta. Table of Contents DRYER SAFETY ................. -
Page 2: Dryer Safety
DRYER SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word "DANGER"... -
Page 3: Installation Requirements
iNSTALLATiON REQUIREMENTS Parts supplied: Too(s and Parts Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here. Tools needed: Leveling legs (4) Parts package is located in dryer drum. Check that all parts are included. -
Page 4: Electrical Requirements
[] Ifyouareusing power supply cord, a grounded electrical Minimum Required Spacing outlet l ocated w ithin 2 ft.(610 mm) o feither s ide ofdryer. See "Electrical Requirements." 311, (76 ram) 1411max,* _ - [] Asturdy floor t osupport thetotal w eight (dryer andload) 48 in? of200Ibs. - Page 5 Electrical Connection if connecting by direct wire: To properly install your dryer, you must determine the type of Power supply cable must match power supply (4-wire or 3-wire) and be: electrical connection you will be using and follow the instructions provided for it here.
-
Page 6: Install Leveling Legs
mnstaH Leve_ing Legs 2, Screw in leveling legs Excessive Weight Hazard Use two or more people to move and install dryer. Failure to do so can result in back or other injury. Prepare dryer for leveling legs Examine leveling legs, find diamond marking. Screw legs into leg holes by hand, use a wrench to finish turning legs until diamond marking is no longer visible. -
Page 7: Electrical Connection
Electrica Connection Direct Wire Power Supply Cord Fire Hazard Fire Hazard Use 10 gauge solid copper wire. Use a new UL listed 30 amp power supply cord. Use a UL listed strain relief. Use a UL listed strain relief. Disconnect power before making electrical connections. Disconnect power before making electrical connections. - Page 8 Power SuppMy Cord Connection Power supply cord strain relief 4owire Power Supply Cord Connection Attach power supply cord IMPORTANT: A 4-wire connection is required for mobile strain relief homes and where local codes do not permit the use of 3-wire connections.
- Page 9 3owire Power Supply Cord Connection Use where local codes permit connecting cabinet-ground conductor to neutral wire. A. 3-wire receptacle (NEMA type 10-30R) B. 3-wire plug C. Neutral prong D. Spade terminals with upturned ends E. 3/4" (19 mm) UL listed strain relief F.
- Page 10 Direct Wire Connection Direct wire strain relief 4owire Direct Wire Connection IMPORTANT: A 4-wire connection is required for mobile 1, Attach direct wire strain relief homes and where local codes do not permit 3-wire connections. Prepare your 4-wire cable for direct connection (12y...
- Page 11 3owire Direct Wire Connection and neutral wire Use where local codes permit connecting cabinet=ground conductor to neutral wire. Prepare your 3-wire cable for direct connection Connect neutral ground wire (E) and place hooked end (hook facing right) of neutral wire (white or center wire) (C) of direct Direct wire cable must have 5 ft.
- Page 12 Connect neutral ground wire __6, Connect neutral wire and neutral wire Place hooked end of neutral wire (white or cente) (C) of direct wire cable under center terminal block screw (B). Squeeze Connect neutral ground wire (E) and neutral wire (white or hooked end together.
-
Page 13: Venting
VENTING Exhaust hoods: Venting Requirements Must be at least 12" (305 ram) from ground or any object that may obstruct exhaust (such as flowers, rocks, bushes, or snow). 4 == (102 m_ Fire Hazard V_,_ 21/2 ,' t64 mm_ Use a heavy metal vent. (102 rnrn) Do not use a plastic vent. -
Page 14: Plan Vent System
Alternate installations for close clearances Plan Vent System Venting systems come in many varieties. Select the type best for your installation. Two close-clearance installations are shown. Recommended exhaust installations Refer to the manufacturer's instructions. Typical installations vent the dryer from the rear of the dryer. Other installations are possible. -
Page 15: Install Vent System
Special provisions for mobile home installations: Install Vent System The exhaust vent must be securely fastened to a noncombustible portion of the mobile home structure and must not terminate beneath the mobile home. Terminate the exhaust vent outside. Install exhaust hood 12"... -
Page 16: Level Dryer
:2. Move dryer to final location Tighten and adjust leveling legs If dryer is not level, prop up using a wood block, use wrench to adjust legs up or down, and check again for levelness. Once legs are level, make sure all four legs are snug against the ground before tightening them. -
Page 17: Reverse Door Swing (Optional)
Reverse Door Swing (OptionaM} 1. Place towel on dryer Remove screws attaching hinges to door. Place towel on top of dryer to avoid damaging the surface. Remove bottom screws Remove screws at top, bottom, and side of door (5 screws). Keep door screws separate from hinge screws as they are different sizes. -
Page 18: Troubleshooting
Flip door over Remove and transfer plugs Flip door over so handle side is down. Remove the 4 screws that attach 2 plugs on the left side. Transfer plugs to opposite side using the same 4 screws. Attach door hinges dryer cabinet NOTE: 2 people maybe needed to reinstall door. - Page 20 W10096988A W10306460A=SP @ Registered Trademark/TM Trademark of Whirlpool, U.S.A. 2/10 © 2010 Whirlpool Corporation. Printed in U.S.A. All rights reserved...
