Installation Drawings
PROVIDE SLOT
120 VOLT GROUNDED
ELECTRICAL OUTLET
IN THIS AREA
FRONT OF CABIN
OVEN SUPPLIED WITH
I12" NPT FEMALE INLET
ON REGULATOR,
62 "
WITH A 3
PRONG CORD
II
46-5 16"
2-1 1/16" _ 24"
22-5/8" _ MIN
COMPLETE FLO01
IS RECOMMENDED
TO PREVENT
UNUSUAL DRAFTS.
OVEN TO CABINET THROUGH
HOLES PROVIDED IN TRIM, FOUR
SCREWS SHIPPED WITH UNIT.
4" RECOMMENDED
AREA FOR ELECTRICAL
CONNECTION
ii
ROVIDE HOLE IN
THIS GENERAL AREA
FOR CONNECTING TO
I/2" DIAMETER PIPE
FITTING
22-3/8"
14" MIN,
HEIGHT

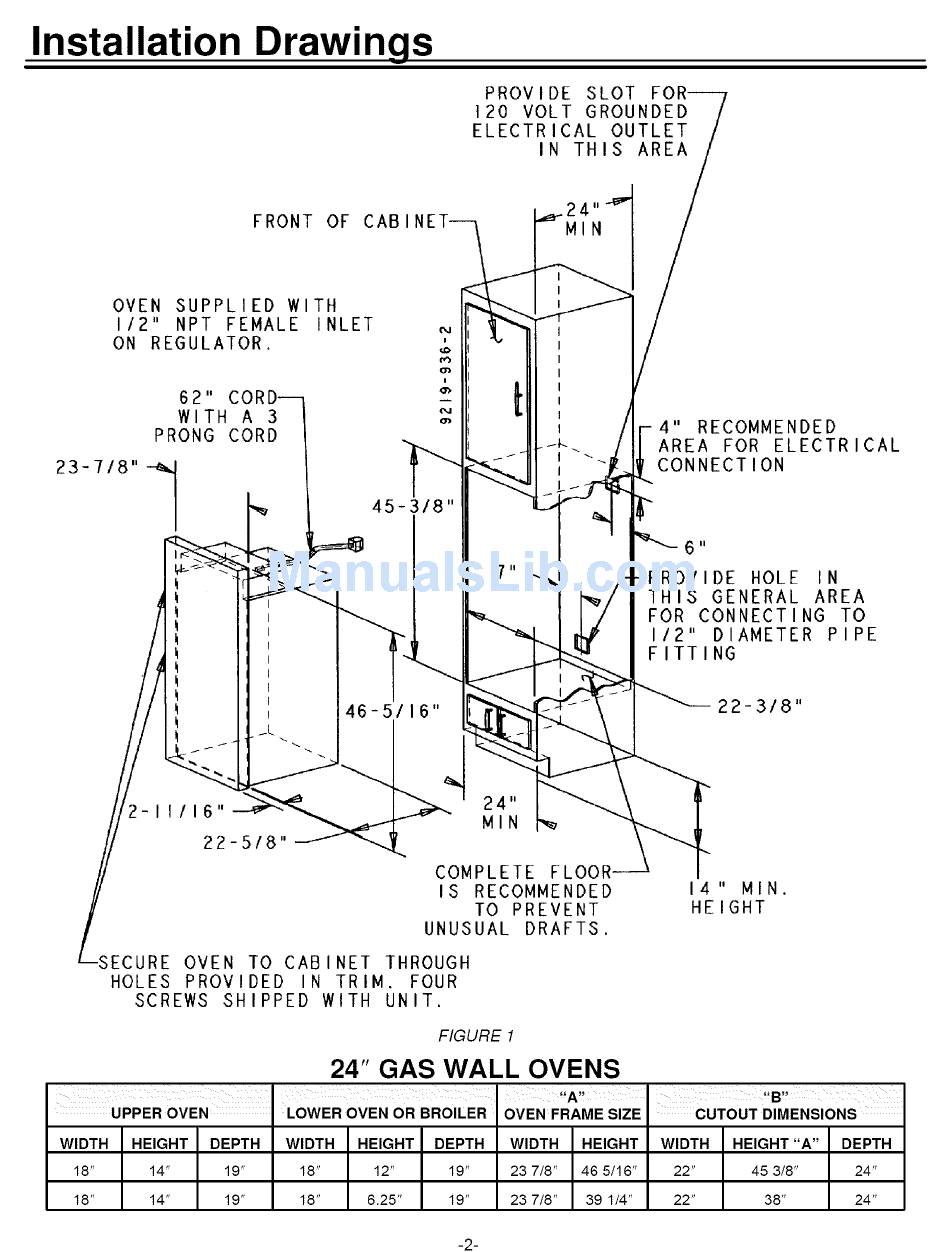

FIGURE 1
24" GAS WALL OVENS
UPPER OVEN LOWER OVEN OR BROILER
WIDTH HEIGHT DEPTH WIDTH HEIGHT DEPTH
18" 14" 19" 18" 12" 19"
18" 14" 19" 18" 6,25" 19"
OVEN FRAME SIZE
WIDTH HEIGHT
23 7/8" 46 5/16"
23 7/8" 39 1/4"
CUTOUT DIMENSIONS
WIDTH HEIGHT "A" DEPTH
22" 45 3/8" 24"
22" 38" 24"
-2-
