Summary of Contents for Hoover Performa Plus

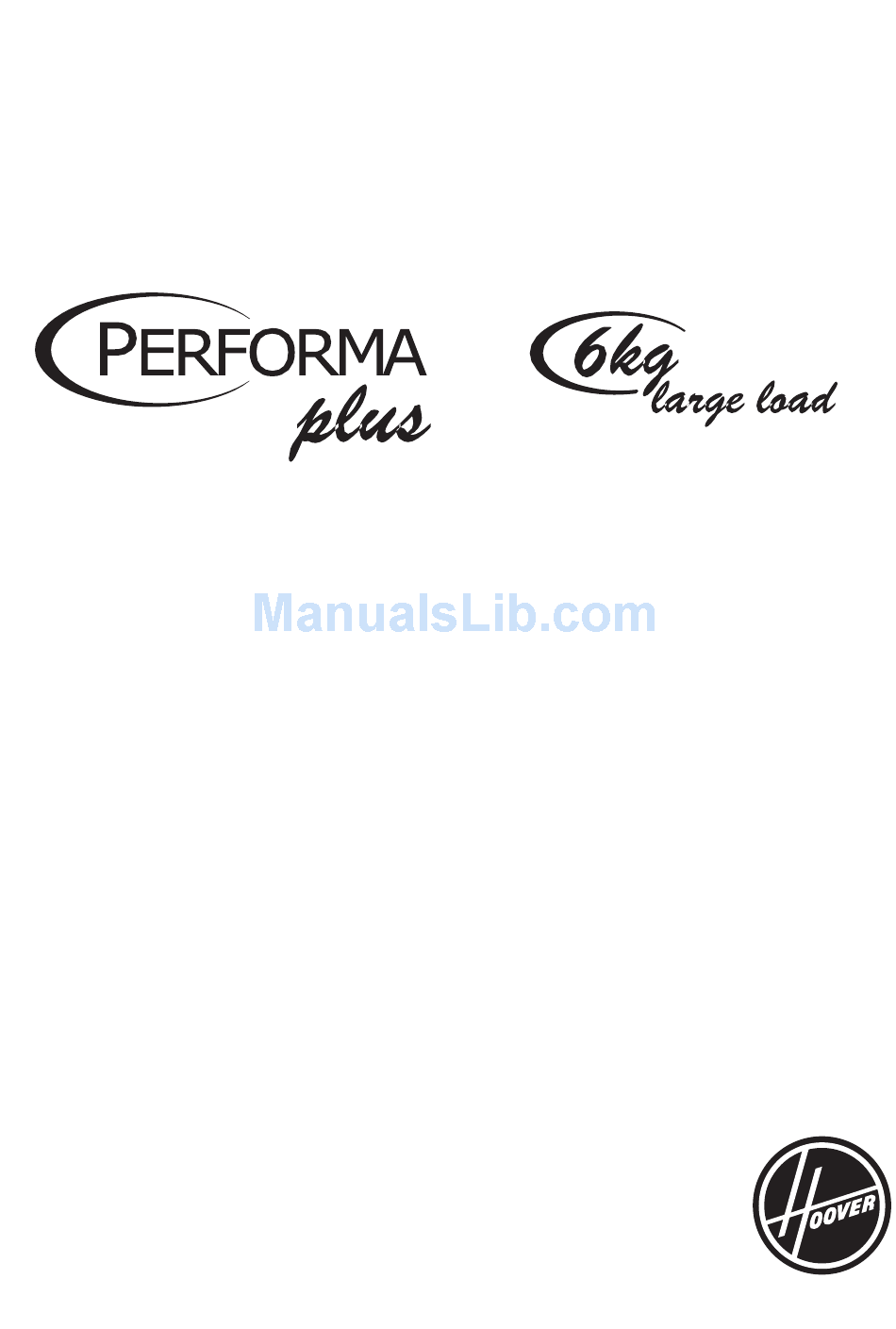

  • Page 1 Instruction Book ®...

  • Page 2: Table Of Contents

    Contents Introduction ........3 Delivery information ....... . . 3 Do’s and Don’ts .

  • Page 3: Introduction

    Introduction Check that no damage has occurred to the machine during transit. Please read and follow these instructions carefully and If it has, call for service operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance by GIAS.

  • Page 4: Unpacking The Product

    Unpacking the product Remove the machine from its packaging close to the final location of the machine. Cut carefully around the base of the packaging. Lay the machine on its back and remove the base and the two polystyrene spacers on each side of the machine. We recommend that a second person assist in the lifting and manoeuvring of the machine.
  • Page 5 Remove the four retaining screws in the transit bar and pull out the transit bracket. We recommend you keep the transit bracket and screws to protect the machine for future transit. The manufacturers will not be responsible for any damage to the machine caused by not following the instructions relating to releasing the transit protection.

  • Page 6: Installation

    Take the two plastic fixing clips and fix the base panel to the base of the machine. Bring the machine back to the upright position. Cover the central hole in the rear of the machine with the cap enclosed in the instruction bag. Installation Choose a location ●...

  • Page 7: Electricity Supply

    NEUTRAL cord which is ONLY Brown LIVE obtainable from the Green and Yellow EARTH Hoover spares service. CE Appliance complies with European Directive 89/336/EEC, It must be installed by a 73/23/EEC and subsequent amendments. competent person. Call GIAS Water supply 01204 556111 ●...

  • Page 8: Connecting To The Cold Water Supply

    Connecting to the cold water supply Only one hose is required to install this machine to a cold This Appliance water supply. Cold fill is an energy efficient system. Only the water required must be to wash the laundry is heated. There is no loss of heat in the pipeline from the hot water tank or the boiler.

  • Page 9: Connection Of The Machine To The Drain

    Connection of the machine to the drain This machine must be connected in accordance with the water supply regulations. Water byelaws prohibit connection to a surface water drain. Decide which plumbing option suits you best then follow the instructions below. All machines are tested with water prior to leaving the factory so a small amount of water may remain in the drum and drain hose.

  • Page 10: Moving The Machine Into Position

    Moving the machine into position Your machine is heavy so care must be taken when moving it. Do not drag or lift the We recommend that two people move the machine to avoid strain and possible injury. machine by its door. ●...

  • Page 11: Testing The Installation

    Testing the installation Refer to ‘Selecting the wash programme’ for details of how to select programmes. Turn on the water supply and check for leaks from the fill hose. Switch on the electricity supply. Select the spin programme and then press the START/PAUSE button to start the machine.

  • Page 12: Washing Advice

    Washing advice The following tips are designed to assist in getting the best results from your machine whilst using it in the most environmentally-friendly and economical way. It is also important to understand the items to avoid in your laundry, to ensure the continued safe and reliable operation of your machine.

  • Page 13: Sorting The Laundry

    Sorting the laundry Items to avoid We recommend that you do not wash underwired bras in the Do not use the machine machine. Should the wires become detached they could cause to wash items that do damage to your clothes and the machine. If the washcare label states that the bra is machine washable then we advise placing not have a wash label.

  • Page 14: The Dispenser

    The Dispenser COMPARTMENT I COMPARTMENT Prewash detergent Fabric Conditioner Maximum dosage 100ml of powder Maximum dosage 100ml COMPARTMENT II Mainwash detergent Maximum dosage 200ml of powder Detergent dosage Only use detergents which are suitable for use in a washing DO NOT exceed machine.

  • Page 15: Dispensing Instructions

    ARIEL Quick Wash Action – Chosen and recommended by Hoover When we produce a new washing machine we subject it to every test possible. One of the most important tests is the one that enables our experts to identify the most suitable detergent for solving laundry problems.

  • Page 16: The Control Panel

    The Control Panel TIME TO RUN Display START/ PROGRAMME OPTIONS TEMPERATURE PAUSE SELECTOR BUTTONS SELECTOR Turning the machine On The programme Turn the machine ON by selecting a programme using the selector must be return programme selector. This status will be indicated by the STOP to the OFF position to indicator light flashing, this light will continue to flash until reset the controls...
  • Page 17 PAUSE The programme may be paused at any time during the wash cycle by holding down the START/PAUSE button for about two seconds. When the machine is in the paused mode, the time remaining for the programme in the TIME TO RUN indicator and option buttons will flash.

  • Page 18: Wash Options

    Wash Options The following options should be selected BEFORE pressing the START button. Prewash This option is available on the Cottons and Synthetics programmes. Prewash is set automatically on the Sports programme. This option is particularly useful for heavily soiled loads and can be used independently of the main wash programme.

  • Page 19: Automatic Features

    Temperature Selector The washing machine is equipped with a Temperature Selector knob to set the temperature you require. Greater energy savings can be achieved by using the lower temperature settings around the dial between and 40°C. By selecting position, the wash temperature is equivalent to the water inlet temperature, thus reducing energy consumption further.

  • Page 20: Programme Selector

    Programme Selector For handling the various types of fabric and their level of soiling in your laundry the washing machine has different programme groups according to type of wash, temperature, spin speeds and duration (see Programme Guide). Cottons The Cottons programmes are designed for maximum washing and rinsing.

  • Page 21: Daily Programmes

    Sports This washing machine has a unique Sportswear programme. It is specially designed to wash mixed sportswear fabrics that cannot be washed on hotter programmes and is designed to remove the soiling and staining created by participation in sports activities. This programme starts with a cold prewash that breaks down and loosens any excess dirt and then washes at a cool 30°C, rinses twice (one is for fabric conditioner) and spins slowly for the best care of your heavily soiled, delicate garments.

  • Page 22: Programme Guide

    Programme Guide Maximum Maximum Programme Fabric Type Load Water Size (kg) Temp (°C) Cottons, linen Cottons Colourfast Cotton, colourfast mixed fibres Cottons, mixed fabrics, Non-fast Coloureds Non-fast Colour Mix Cottons, mixed fabrics and synthetics Mixed fabrics Synthetics and synthetics Acrylics Synthetics, acrylics and coloured mixed fabrics Rinse...

  • Page 23: A Typical Wash

    A Typical Wash This section summarises the main points when completing a wash cycle. For detailed explanations of features, options and details of the machine refer to the relevant section in the instruction manual. Preparing the laundry Select and sort the laundry according to the wash care labels found on each garment.

  • Page 24: Selecting The Wash Programme

    Selecting the wash programme Refer to the Programme Guide or the programme descriptions on the front of the machine to select the most suitable programme. The programme is selected by turning the programme selector and aligning the programme name with the indicator. Check that the STOP indicator is flashing, if not check that the door is properly closed.

  • Page 25: Cleaning And Routine Maintenance

    Cleaning and Routine Maintenance The washing machine needs very little maintenance, but regular attention to a few small details will ensure the continued performance of your washing machine. Do not use abrasive cleaners, scouring pads, solvent based cleaners or polishes; wiping the outside of the machine with a damp cloth will suffice.

  • Page 26: Cleaning The Filter

    Cleaning the filter The washing machine is fitted with a special filter to prevent items such as coins, buttons, etc. blocking the discharge hose. These may be retrieved by: Removing the kickplate by gently pulling it from the bottom in an outwards and upwards direction. Use the kickplate to collect the water still in the filter.

  • Page 27: Troubleshooting

    Troubleshooting What might be the cause of... Defects you can remedy yourself Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly.

  • Page 28: The Door Will Not Open

    Water on the floor around the washing machine…. ● Is the fill hose tightened? If so, replace the rubber washers and re-tighten. ● Is the standpipe or the household drain blocked? If so, clear the blockage yourself or call a plumber. ●...
  • Page 29 ● Has the programme finished but the door remains locked? The START and TIME SAVER light will flash intermittently indicating that the water supply has been interrupted during the wash cycle. Turn the machine to OFF to reset the machine and this will allow the door to open.

  • Page 30: Power Failure

    Power Failure If there is a power failure the wash cycle will be interrupted, and the wash programme and functions will be suspended. When the power is restored, the wash programme and functions will re-start from the same point and complete the programme.

  • Page 31: Customer Service

    For a period of one year from the date of purchase the appliance is covered by a guarantee which allows you to call Hoover Service free of charge (except for the price of the call). Phone GIAS on 08705 400 600 Remember to send off the guarantee certificate for validation within 10 days of the date of purchase.

  • Page 32: Your Guarantee

    Your Guarantee Hoover guarantees all parts of this product for 5 years from the date of purchase. During that time Hoover will replace or repair all defective parts free of charge, except for parts subject to fair wear and tear such as belts. The call out fee and labour costs are chargeable after the first 12 months.
