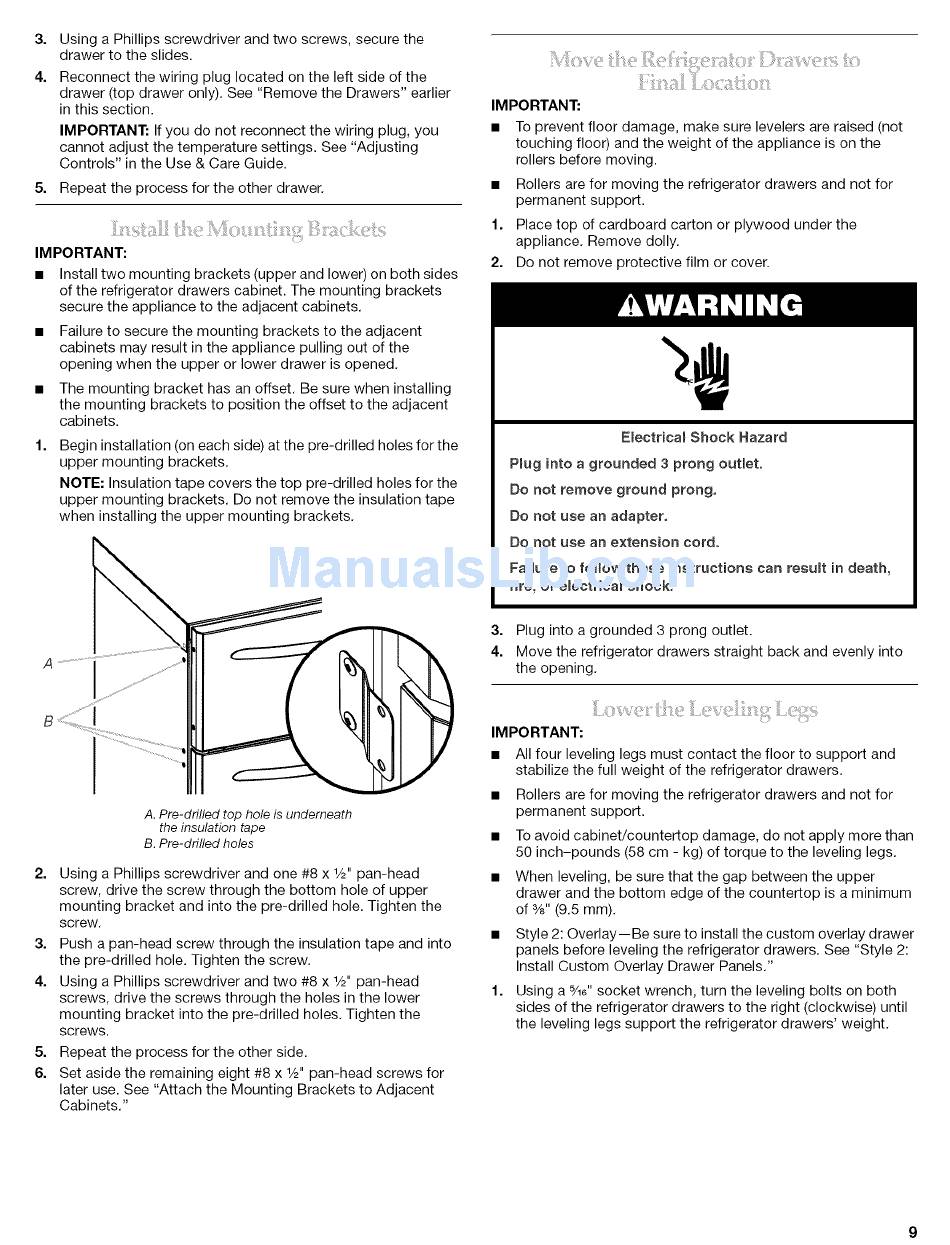

3=
4.
Using a Phillips screwdriver and two screws, secure the
drawer to the slides.
Reconnect the wiring plug located on the left side of the
drawer (top drawer only). See "Remove the Drawers" earlier
in this section.
IMPORTANT:
If you do not reconnect the wiring plug, you
cannot adjust the temperature settings. See "Adjusting
Controls" in the Use & Care Guide.
5. Repeat the process for the other drawer.
IM PO RTANT:
Install two mounting brackets (upper and lower) on both sides
of the refrigerator drawers cabinet. The mounting brackets
secure the appliance to the adjacent cabinets.
Failure to secure the mounting brackets to the adjacent
cabinets may result in the appliance pulling out of the
opening when the upper or lower drawer is opened.
The mounting bracket has an offset. Be sure when installing
the mounting brackets to position the offset to the adjacent
cabinets.
Begin installation (on each side) at the pre-drilled holes for the
upper mounting brackets.
NOTE: Insulation tape covers the top pre-drilled holes for the
upper mounting brackets. Do not remove the insulation tape
when installing the upper mounting brackets.
IMPORTANT:
To prevent floor damage, make sure levelers are raised (not
touching floor) and the weight of the appliance is on the
rollers before moving.
Rollers are for moving the refrigerator drawers and not for
permanent support.
1. Place top of cardboard carton or plywood under the
appliance. Remove dolly.
2. Do not remove protective film or cover.
Electdcam Shock Hazard
Pmug into a grounded
3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension
cord.
Failure to follow these instructions
can resumt in death,
fire, or electricam shock.
3. Plug into a grounded 3 prong outlet.
4. Move the refrigerator drawers straight back and evenly into
the opening.
A. Pre-drilled top hole is underneath
the insulation
tape
B. Pre-drilled holes
2. Using a Phillips screwdriver and one #8 x 1/2"pan-head
screw, drive the screw through the bottom hole of upper
mounting bracket and into the pre-drilled
hole. Tighten the
screw.
3. Push a pan-head screw through the insulation tape and into
the pre-drilled
hole. Tighten the screw.
4. Using a Phillips screwdriver and two #8 x 1/2"pan-head
screws, drive the screws through the holes in the lower
mounting bracket into the pre-drilled holes. Tighten the
screws.
5. Repeat the process for the other side.
6. Set aside the remaining eight #8 x 1/2"pan-head screws for
later use. See "Attach the Mounting Brackets to Adjacent
Cabinets."
IMPORTANT:
All four leveling legs must contact the floor to support and
stabilize the full weight of the refrigerator drawers.
Rollers are for moving the refrigerator drawers and not for
permanent support.
To avoid cabinet/countertop
damage, do not apply more than
50 inch-pounds
(58 cm - kg) of torque to the leveling legs.
When leveling, be sure that the gap between the upper
drawer and the bottom edge of the countertop is a minimum
of %" (9.5 mm).
Style 2: Overlay-- Be sure to install the custom overlay drawer
panels before leveling the refrigerator drawers. See "Style 2:
Install Custom Overlay Drawer Panels."
1. Using a %6" socket wrench, turn the leveling bolts on both
sides of the refrigerator drawers to the right (clockwise) until
the leveling legs support the refrigerator drawers' weight.
