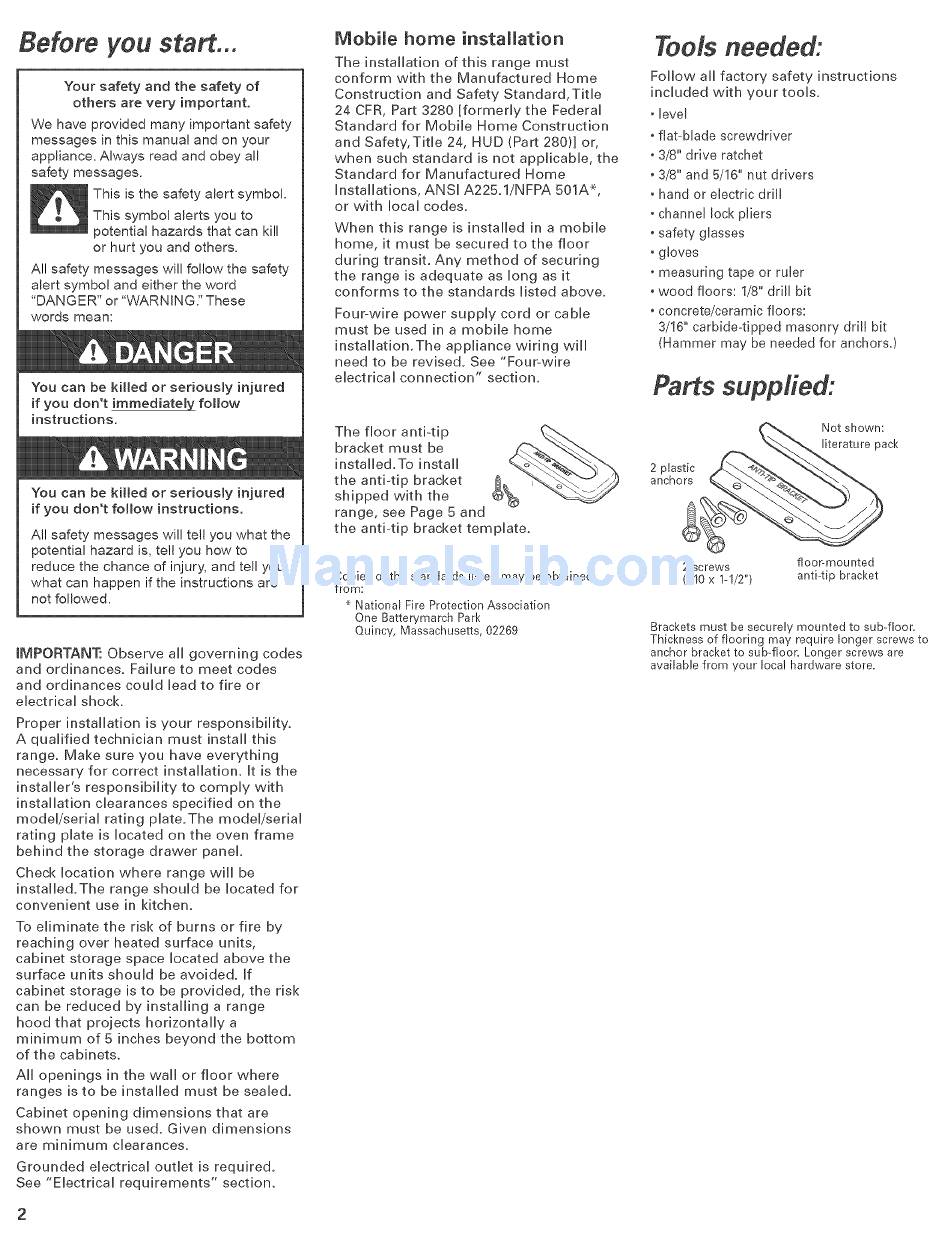

KitchenAid KERC508LSS0 Installation Instructions Manual page 2

30" electric freestanding range
Hide thumbs

Advertisement

Before you start...
Your safety
and the safety
of
others
are very
important.
We have provided
many important
safety
messages
in this manual
and on your
appliance.
Always
read and obey all
safety
messages.
This is the safety alert symbol.
This symbol
alerts you to
potential
hazards
that can kill
or hurt you and others.
All safety
messages
will follow
the safety
alert
symbol
and either
the word
'DANGER"
or 'WARNING."
These
words
mean:
You can be killed
or seriously
injured
if you
don't
immediatebL
follow
instructions.
You can be kitied
or seriously
injured
if you
don't
follow
instructions.
All safety
messages
will tell you what the
potential
hazard
is, tell you how to
reduce
the chance
of injury, and tell you
what can happen
if the instructions
are
not followed.
IMPORTANT: Observe all governing
codes
and ordinances.
Failure to meet codes
and ordinances
could lead to fire or
electrical
shock.
Proper
installation
is your
responsibility.
A qualified
technician
must
install
this
range.
Make
sure
you
have
everything
necessary
for correct
installation.
It is the
installer's
responsibility
to comply
with
installation
clearances
specified
on the
model/serial
rating
plate.The
model/serial
rating
plate
is located
on the oven
frame
behind
the storage
drawer
panel.
Check
location
where
range
will
be
installed.The
range
should
be located
for
convenient
use in kitchen.
To eliminate
the
risk of burns
or fire by
reaching
over
heated
surface
units,
cabinet
storage
space
located
above
the
surface
units
should
be avoided.
If
cabinet
storage
is to be provided,
the risk
can be reduced
by installing
a range
hood
that
projects
horizontally
a
minimum
of 5 inches
beyond
the bottom
of the cabinets.
All openings
in the wall
or floor
where
ranges
is to be installed
must
be sealed.
Cabinet
opening
dimensions
that are
shown
must
be used.
Given
dimensions
are minimum
clearances.
Grounded
electrical
outlet
is required.
See "Electrical
requirements"
section.
Mobile
home installation
The installation
of this range must
conform
with the Manufactured
Home
Construction
and Safety Standard,Title
24 CFR, Part 3280 [formerly
the Federal
Standard
for Mobile
Home Construction
and Safety, Title 24, HUD (Part 280)] or,
when such standard
is not applicable,
the
Standard
for Manufactured
Home
Installations,
ANSI A225J/NFPA
501A *,
or with local codes.
When
this
range
is installed
in a mobile
home,
it must
be secured
to the floor
during
transit.
Any
method
of securing
the
range
is adequate
as long
as it
conforms
to the standards
listed
above.
Four-wire
power
supply
cord
or cable
must
be used
in a mobile
home
installation.The
appliance
wiring
will
need
to be revised.
See "Four-wire
electrical
connection"
section.
The floor
anti-tip
bracket
must
be
installed.To
install
the anti-tip
bracket
shipped
with
the
range,
see Page 5 and
the anti-tip
bracket
template.
Copies of the standards listed may be obtained
from:
National Fire Protection Association
One Batterymarch Park
Quincy, Massachusetts, 02269
Tools needed:
Follow
all factory
safety
instructions
included
with
your
tools.
• level
fiat-blade
screwdriver
3/8" drive ratchet
3/8" and 5/16" nut drivers
hand or electric
drill
channel
lock pliers
safety glasses
gloves
measuring
tape or ruler
wood floors:
1/8" drill bit
concrete/ceramic
floors:
3/16" carbide4ipped
masonry
drill bit
(Hammer
may be needed for anchors,)
Parts supplied:
Not shown:
literature peck
2 plastic
anchors
2 screws
floopmounted
(#10 x 1-1/2")
anti-tip bracket
Brackets must be securely mounted to sub-floor.
Thickness of flooring may require longer screws to
anchor bracket to sub-floor, Longer screws ere
available from your local hardware store.
