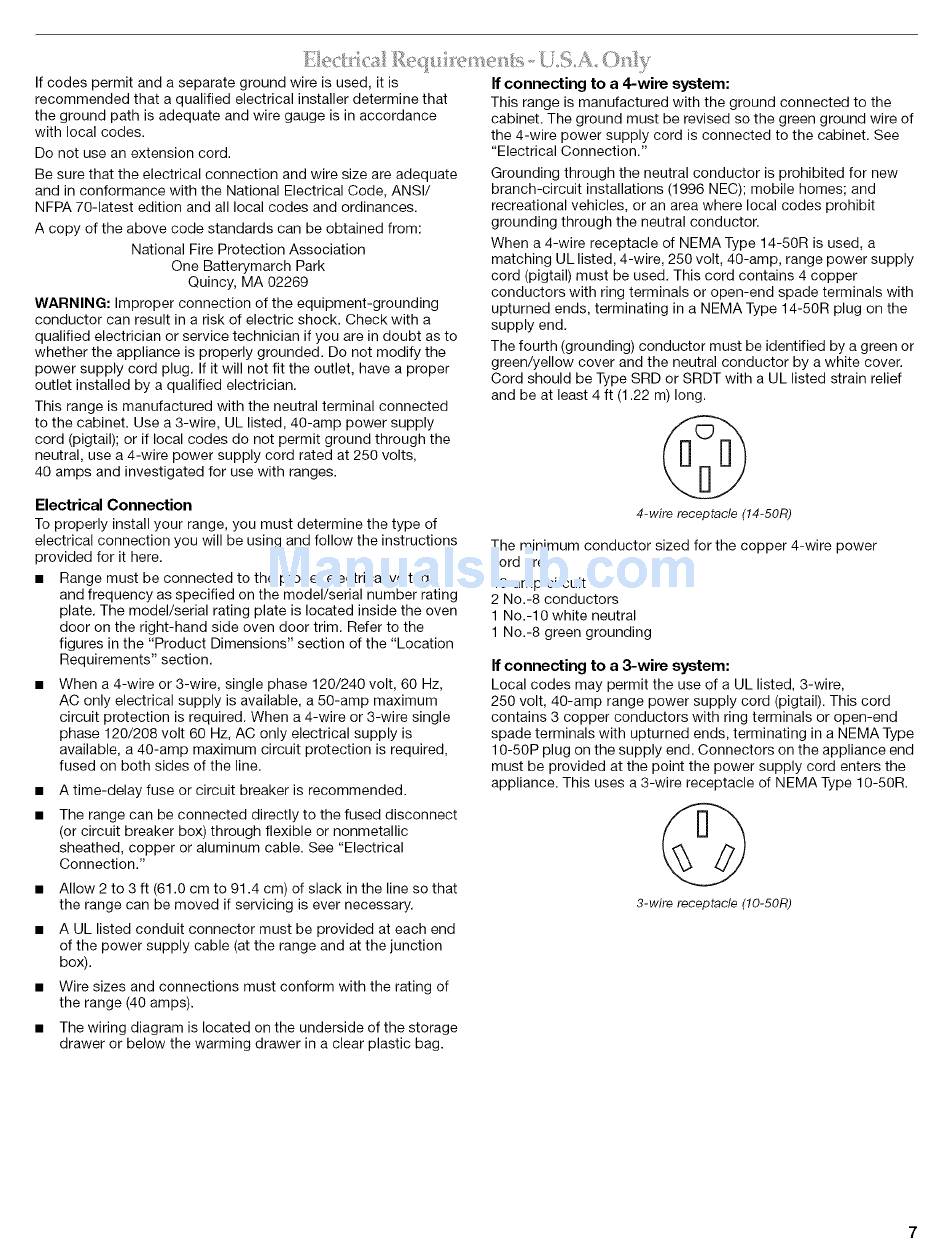

Location Requirements - KitchenAid KESS907SBL00 Installation Instructions Manual

30" (76.2 cm) freestanding and slide-in electric ranges
Hide thumbs

Advertisement

Ifcodes permit and a separate ground w ire isused, i tis
recommended
thataqualified electrical installer determine that
theground p athisadequate and wire gauge isinaccordance
withlocal c odes.
Donotuseanextension cord.
Besure that t heelectrical connection andwire size areadequate
andinconformance
withtheNational Electrical Code, ANSI/
NFPA 7 0-latest edition and alllocal c odes a nd ordinances.
Acopyoftheabove c ode standards canbeobtained from:
National Fire Protection Association
One Batterymarch
Park
Quincy, MA02269
WARNING: Improper connection oftheequipment-grounding
conductor canresult inariskofelectric s hock. Check w itha
qualified electrician orservice technician ifyouareindoubt a sto
whether theappliance isproperly grounded. Donotmodify t he
power supply cordplug. I fitwillnotfittheoutlet, have aproper
outlet i nstalled byaqualified e lectrician.
This range i smanufactured
withtheneutral terminal connected
tothecabinet. Use a 3-wire, ULlisted, 40-amp p ower supply
cord(pigtail); oriflocal c odes d onotpermit ground t hrough t he
neutral, usea4-wire power s upply c ord rated at250 volts,
40amps andinvestigated
foruse withranges.
Electrical
Connection
To properly install your range, you must determine the type of
electrical connection you will be using and follow the instructions
provided for it here.
Range must be connected to the proper electrical voltage
and frequency as specified on the model/serial number rating
plate. The model/serial
rating plate is located inside the oven
door on the right-hand side oven door trim. Refer to the
figures in the "Product Dimensions" section of the "Location
Requirements"
section.
When a 4-wire or 3-wire, single phase 120/240 volt, 60 Hz,
AC only electrical supply is available, a 50-amp maximum
circuit protection is required. When a 4-wire or 3-wire single
phase 120/208 volt 60 Hz, AC only electrical supply is
available, a 40-amp maximum circuit protection
is required,
fused on both sides of the line.
A time-delay fuse or circuit breaker is recommended.
The range can be connected directly to the fused disconnect
(or circuit breaker box) through flexible or nonmetallic
sheathed, copper or aluminum cable. See "Electrical
Connection."
Allow 2 to 3 ft (61.0 cm to 91.4 cm) of slack in the line so that
the range can be moved if servicing is ever necessary.
A UL listed conduit connector must be provided at each end
of the power supply cable (at the range and at the junction
box).
Wire sizes and connections
must conform with the rating of
the range (40 amps).
The wiring diagram is located on the underside of the storage
drawer or below the warming drawer in a clear plastic bag.
If connecting
to a 4-wire system:
This range is manufactured
with the ground connected to the
cabinet. The ground must be revised so the green ground wire of
the 4-wire power supply cord is connected to the cabinet. See
"Electrical Connection."
Grounding through the neutral conductor
is prohibited for new
branch-circuit
installations (1996 NEC); mobile homes; and
recreational vehicles, or an area where local codes prohibit
grounding through the neutral conductor.
When a 4-wire receptacle of NEMA Type 14-50R is used, a
matching UL listed, 4-wire, 250 volt, 40-amp, range power supply
cord (pigtail) must be used. This cord contains 4 copper
conductors
with ring terminals or open-end spade terminals with
upturned ends, terminating
in a NEMA Type 14-50R plug on the
supply end.
The fourth (grounding) conductor must be identified by a green or
green/yellow cover and the neutral conductor
by a white cover.
Cord should be Type SRD or SRDT with a UL listed strain relief
and be at least 4 ft (1.22 m) long.
4-wire receptacle (14-50R)
The minimum conductor sized for the copper 4-wire power
cord are:
40-amp circuit
2 No.-8 conductors
1 No.-10 white neutral
1 No.-8 green grounding
If connecting
to a 3-wire system:
Local codes may permit the use of a UL listed, 3-wire,
250 volt, 40-amp range power supply cord (pigtail). This cord
contains 3 copper conductors
with ring terminals or open-end
spade terminals with upturned ends, terminating
in a NEMA Type
10-50P plug on the supply end. Connectors on the appliance end
must be provided at the point the power supply cord enters the
appliance. This uses a 3-wire receptacle of NEMA Type 10-50R.
3-wire receptacle (10-50R)
