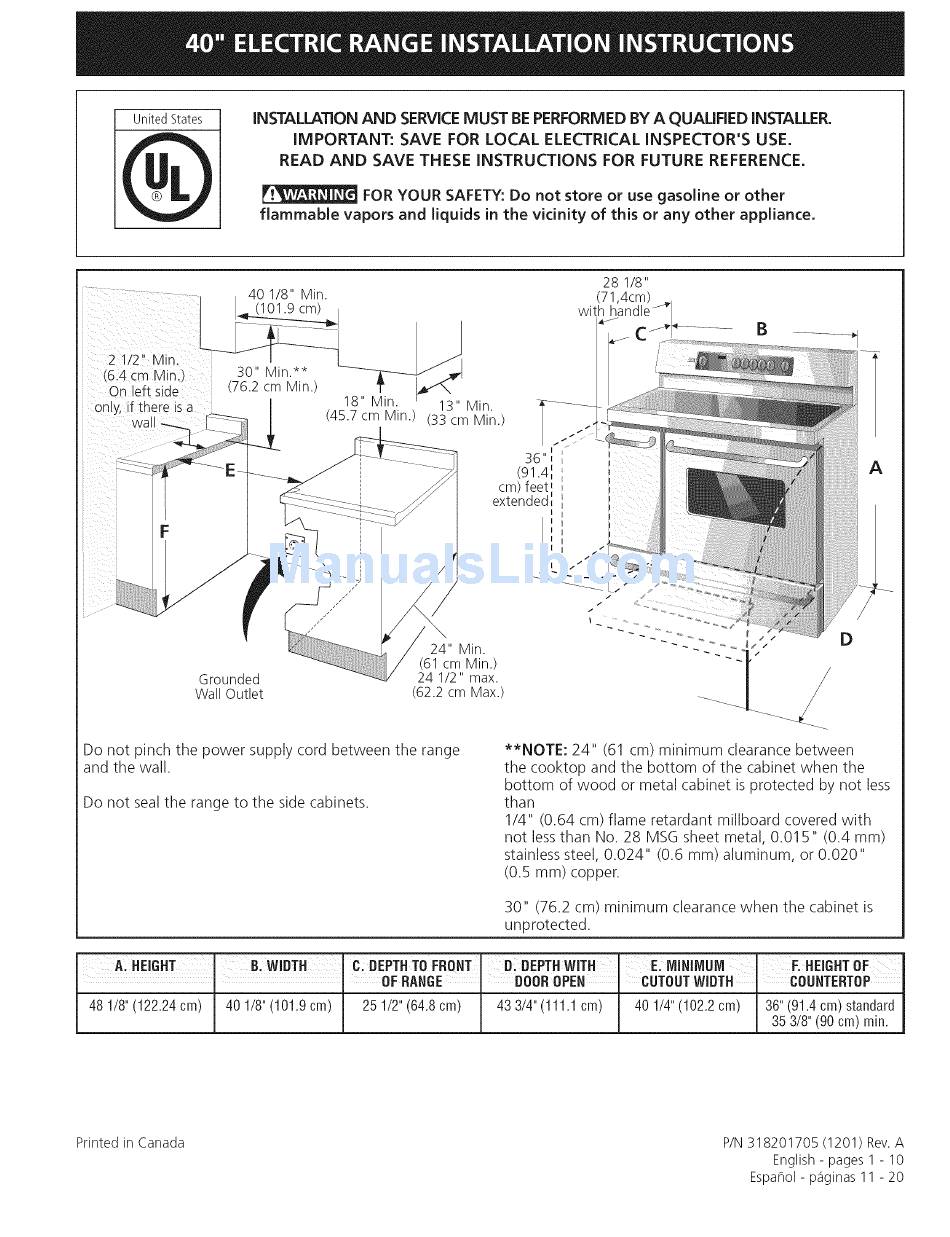

Kenmore 79099613704 Installation Instructions Manual

United States
INSTALLATION AND SERVICEMUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of this or any other appliance.
2 1/2 Min.
_6.4 cm Min.)
On left side
only, if there is a
28 1/8"
40 1/8" Min. (71,4cm) _,
101.9 cm) with handle
M_ C_÷ .......
18" . Min.
(45.7 cm Min.) (33 cm Min.)
30 Min.**
76.2 cm Min.)
B
\
24" Min.
(61 cm Min.)
Grounded 24 1/2" max.
Wall Outlet (62.2 cm Max.)
Do not pinch the power supply cord between the range
and the wall.
Do not seal the range to the side cabinets.
I
36"_
(91.41
cm) feet I
extended_
D
**NOTE: 24" (61 cm) minimum clearance between
the cooktop and the bottom of the cabinet when the
bottom of wood or metal cabinet is protected by not less
than
1/4" (0.64 cm) flame retardant millboard covered with
not less than No. 28 MSG sheet metal, 0.015" (0.4 mm)
stainless steel, 0.024" (0.6 mm) aluminum, or 0.020"
(0.5 mm) copper.
30" (76.2 cm) minimum clearance when the cabinet is
unprotected.
A: HEIGHT' B. WIDTH C! DEPTH TOFRONT DI DEPTH WITH E. MINIMUM ' F. HEIGHT OF
I
........ OFRANGE DOOR OPEN CUTOUT WIDTH COUNTERTOP
48 1/8"(122.24cm) 40 1/8"(101.9cm) 25 1/2"(64.8cm) 43 3/4" (111.1cm) 40 1/4"(102.2cm) 36"(91.4cm) standard
35 3/8"(90 cm) min.
Printed in Canada P/N 318201705 (1201) Rev.A
English - pages 1 - 10
Espa_ol - p_iginas 11 - 20
