- Page 1 Instruction Manual Evaporative Swamp Cooler It is important that you read these Model No. SF-613 instructions thoroughly before using your new air cooler and we strongly recommend that you keep them in a safe place for future reference.
-
Page 2: Table Of Contents
CONTENTS TABLE OF CONTENTS ---------------------------------------------------- 1 A. PRODUCT INTRODUCTION --------------------------------------- 2 B. TECHNICAL PARAMETER ----------------------------------------- 2 C. CONTROL PANEL, LCD & CONSTRUCTION DIAGRAM --- 3 D. SELECTION OF FUNCTIONS -------------------------------- 4 ~ 5 E. CARE AND MAINTENANCE --------------------------------------- 5 F. CAUTIONS -------------------------------------------------------------- 6 G. -
Page 3: Product Introduction

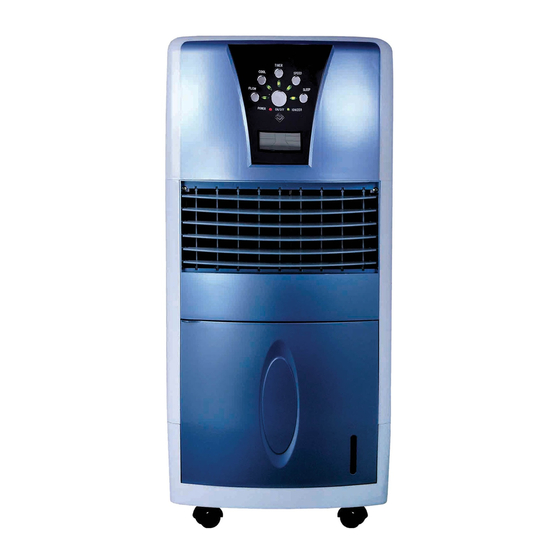

A. PRODUCT INTRODUCTION SF-613 Air cooler is our latest design with microcomputer control system. It has device for storing water and ice cubes. It can lower surrounding temperature, freshen the air with equipped anion, humidify the air through the principle of water evaporation and melting ice. -
Page 4: Control Panel, Lcd & Construction Diagram
C. CONTROL PANEL, LCD DISPLAY AND CONSTRUCTION DIAGRAM 1. Control panel and functions (Same with remote controller) CONTROL PANEL TIMER LCD DISPLAY COOL SPEED Sleep Mode Indicator Timer Indicator SWING MODE POWER POWER Cool Indicator Fan Speed Indicator Auto Swing Indicator 2. -
Page 5: Selection Of Functions
D. SELECTION OF FUNCTIONS 1. ON/OFF: Turns unit ON or OFF Press once to turn ON. Following indicator lights will illuminate: POWER, IONIZER, and SPEED. Unit operates in default High fan speed. LCD panel will display rotating fan at High speed. Press again to turn OFF. -
Page 6: Care And Maintenance
Open the front door by the pulling gently on the handle. Add water to the tank. Do not overfill. For added cooling, add ice to the tank. (Fig. 1) Power supply should be disconnected before filling to prevent electrical parts from damage. -
Page 7: Cautions
Cleaning the Dust Filter 1. Disconnect the power supply. 2. Push down on the two handles of the filter and pull outwards. (Fig 2) 3. Clean under lukewarm water and mild detergent. 4. Make sure filter is completely dry before operating unit. Cleaning the Water Curtain 1. - Page 8 12. Do not use the COOL function if unit is used in a damp and closed space. 13. Do not place fingers or insert foreign objects into the louver during operation. 14. Do not operate unit with a damage power cord or plug. Contact Sunpentown, do not attempt to repair on your own.
-
Page 9: Packing List
G. PACKING LIST NAME QUANTITY Air Cooler Remote Controller Instructions Manual DEFECTIVE NOTICE If this product is defective or not working properly Please DO NOT return to your retail store Please contact us directly with any Service or T echnical Assistance Contact us toll free at: 1-800-330-0388... -
Page 10: Warranty
This guarantee is subject to the following terms: Sunpentown must be notified of the fault. Proof of purchase must be presented to Sunpentown’s nominated representative. The warranty will be void if the product if modified, misused or repaired by an unauthorized person.
