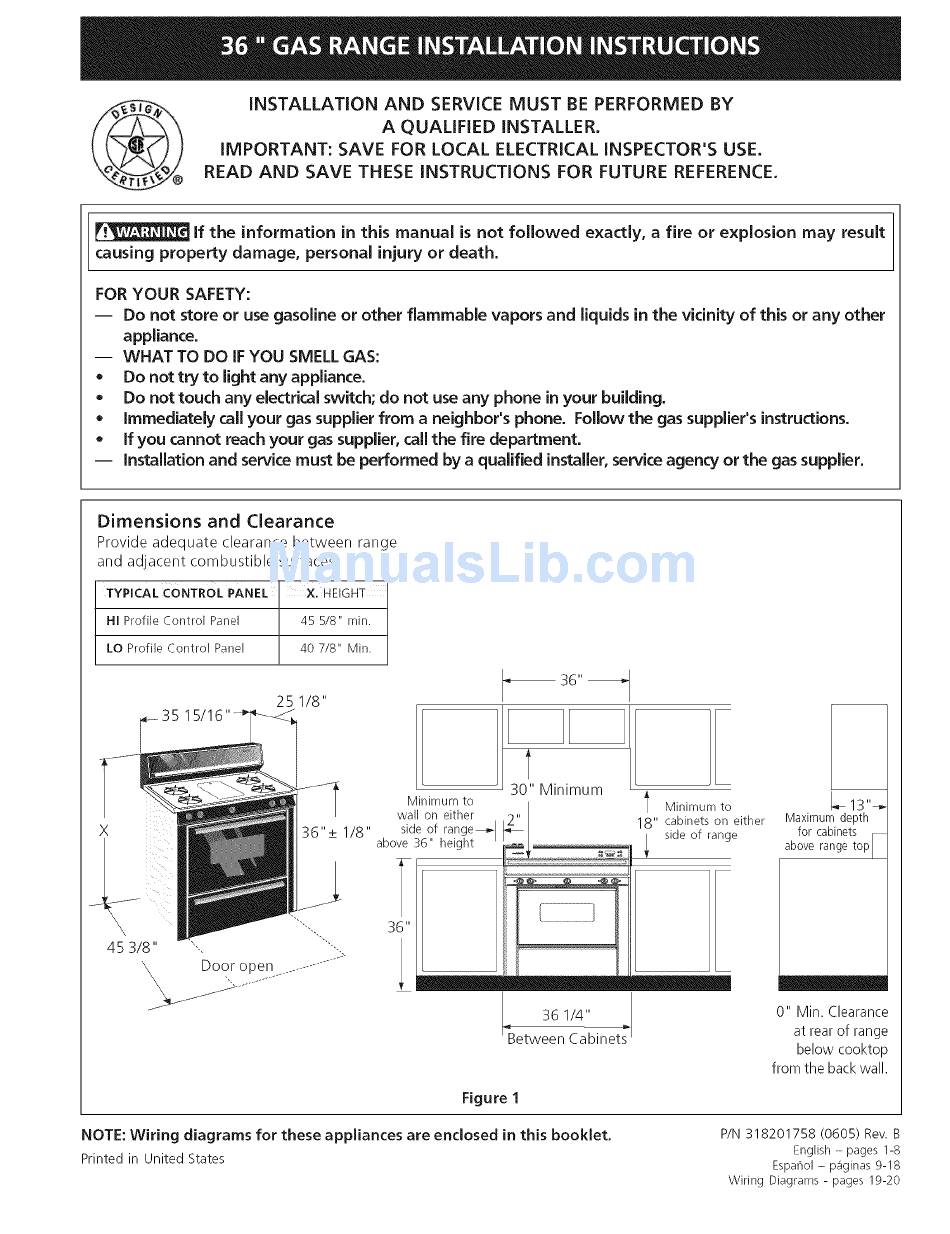

Tappan TGF605EW2 Installation Instructions Manual

@
iNSTALLATiON AND SERVICE MUST BE PERFORMED BY
A QUALiFiED iNSTALLER.
iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.
READ AND SAVE THESE iNSTRUCTiONS FOR FUTURE REFERENCE.
If the information in this manual is not followed exactly, a fire or explosion may result
causing property damage, personal injury or death.
FOR YOUR SAFETY:
-- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
-- WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
If you cannot reach your gas supplier, call the fire department.
-- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Dimensions and Clearance
Provide adequate clearance between range
and adjacent combustible surfaces.
TYPICAL CONTROL PANEL X. HEIGHT
HI Profile Control Panel 45 5/8" min.
LO Profile Control Panel 40 7/8" Min.
25 1/8"
35
X
Minimum to
wall on either
36"+ _ I/8" side of range_
above 36" heigilt
"-,..
45 318 .... " ....
' Door open ................. :"
\_ , _°-
36"
_36"
30" Minimum
Minimum to
18"
cabinets on either
side of range
I 36 1/4"
Between Cabinets
I_ 13"-_
Maximum depth
for cabinets
above range top |
0" Min. Clearance
at rear of range
below cooktop
from the back wall.
Figure 1
NOTE: Wiring diagrams for these appliances are enclosed in this booklet.
Printed in United States
PIN 318201758 (0605) Rev. B
English - pages 1-8
Espahol - paginas g-18
Wiring Diagrams- pages 19-20
