Tappan 318200764 Owner's Manual

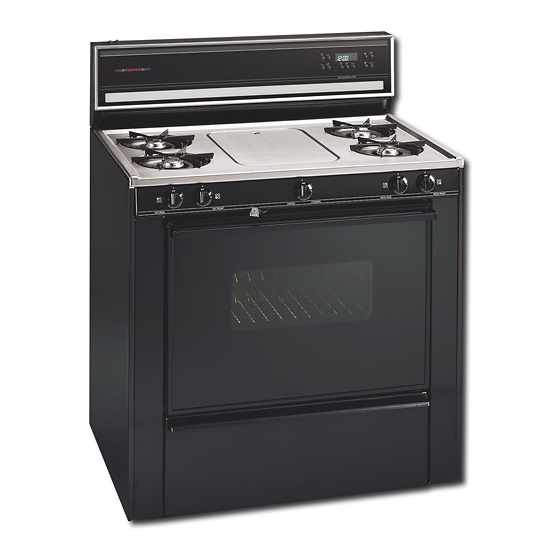

Tappan gas range owner's guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

P/N 318200764 (0703) Rev. A
Recycled paper
P/N 318200753 (0203) Rev. C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 318200764 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tappan 318200764

Summary of Contents for Tappan 318200764

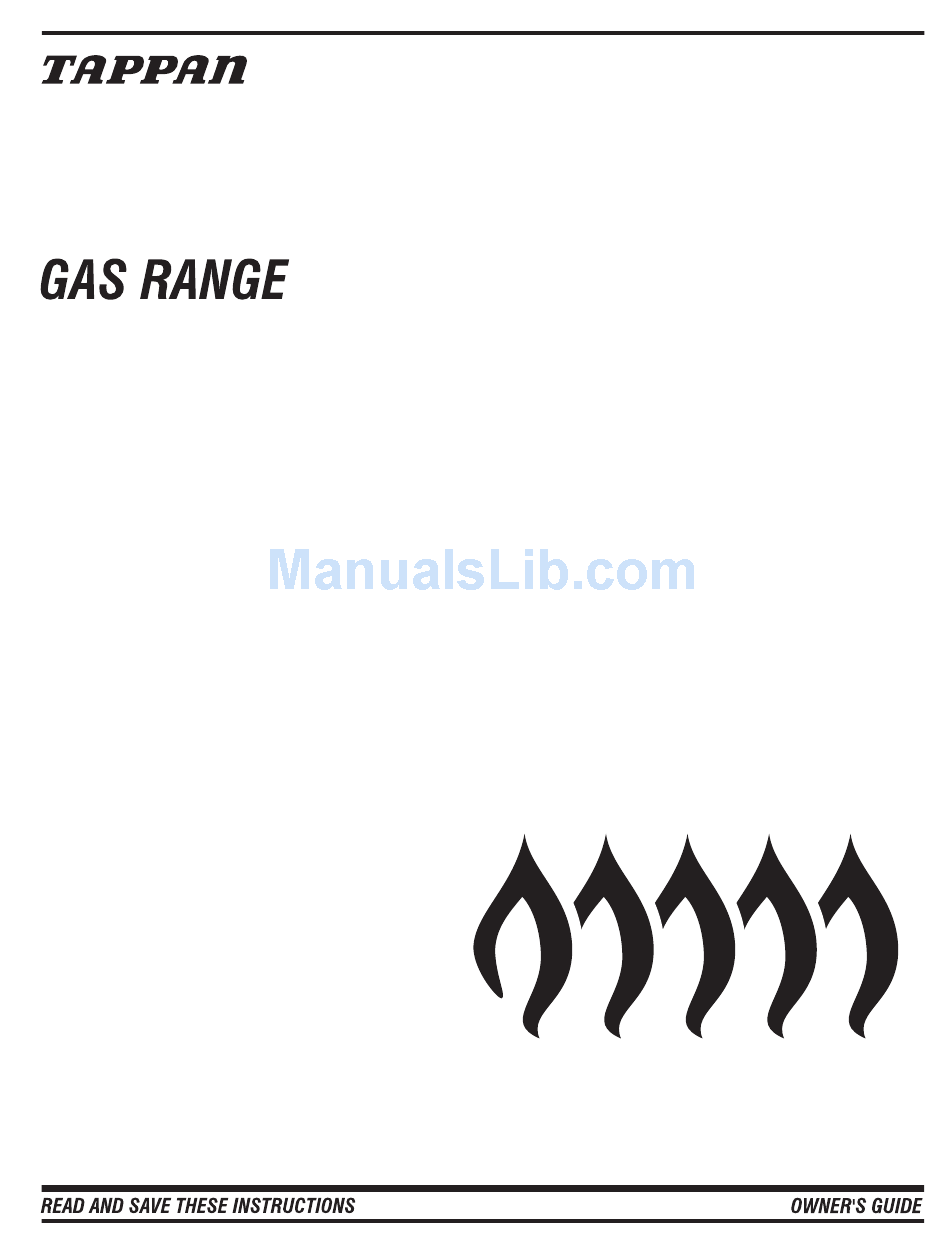

  • Page 1 P/N 318200764 (0703) Rev. A Recycled paper P/N 318200753 (0203) Rev. C...

  • Page 2: Table Of Contents

    Product Registration Register Your Product The PRODUCT REGISTRATION CARD should be filled in completely, signed and returned to Electrolux Home Products North America. Contents This Owner's Guide contains general operating instructions for your appliance and feature information for several models. Your appliance may not have all the described features.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read all instructions before using this appliance. Save these instructions for future reference. This guide contains important safety symbols and instructions. Please pay special attention to these symbols and follow all instructions given. Here is a brief explanation of the use of these symbols. This symbol will help alert you to situations that may cause serious bodily harm, death or property damage.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS NEVER use this appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning and overheating of the oven. • Do Not Use Water or Flour on Grease Fires—Smother the fire with a pan lid, or use baking soda, a dry chemical or foam-type extinguisher.

  • Page 5: Important Instructions For Cleaning Your Range

    IMPORTANT SAFETY INSTRUCTIONS • Do not use a broiler pan without its insert. Broiler pan and grid allow dripping fat to drain and be kept away from the high heat of broiler. • Do not cover broiler grid with aluminum foil. Exposed fat and grease could ignite.

  • Page 6: Liquefied Petroleum (Propane) Gas Conversion

    Liquefied Petroleum (Propane) Gas Conversion Grounding Instructions (electric ignition models only) Avoid fire hazard or electrical shock. Do not use an adaptor plug, an extension cord, or remove grounding prong from electrical power cord. Failure to follow this warning can cause serious injury, fire or death.

  • Page 7: Flame Size

    Flame Size Never extend the flame beyond the outer edge of the utensil. A higher flame simply wastes heat and energy, and increases your risk of being burned by the flame. RIGHT WRONG Proper Burner Adjustments Selecting Surface Cooking Utensils Pans should have flat bottoms.

  • Page 8: Specialty Pans & Trivets

    Specialty Pans & Trivets Canning Tips & Information Canning can generate large amounts of steam. Use extreme caution to prevent burns. Always raise the lid to vent steam away from you. Woks with flat bottoms suitable for use on your cooktop are available in most cookshop or hardware stores.

  • Page 9: Setting Surface Controls

    Setting Surface Controls Surface Control Knob Griddle Griddle Burner Reflection Plate Observation Hole The hole in the griddle cover should be toward the backguard. Make sure to locate the griddle observation hole toward the front of the range to observe the burner flame. Do not use the griddle cover over a lit burner or for cooking.

  • Page 10: Before Setting Oven Controls

    Before Setting Oven Controls Oven Vent Location The oven is vented through the center rear of the cooktop. When the oven is on, warm air is released through the vent. This venting is necessary for proper burner operation in the oven. DO NOT block the vent.

  • Page 11: Air Circulation In The Oven

    Air Circulation in the Oven Oven Baking Baking Problems and Solutions Chart (Below) Baking Problems Causes Cookies and • Cookies and biscuits put into the oven biscuits burn on the before the preheating time is bottom. completed. • Oven rack overcrowded. •...

  • Page 12: Oven Cleaning

    Oven Cleaning (continued) Adhere to the following cleaning precautions: • Allow the oven to cool before cleaning. • Wear rubber gloves when cleaning the range manually. REMOVE SPILLOVERS AND HEAVY SOIL- ING AS SOON AS POSSIBLE. REGULAR CLEANINGS WILL REDUCE THE NUM- BER OF MAJOR CLEANINGS LATER.

  • Page 13: Continuous Cleaning Oven

    Oven Cleaning (continued) Adhere to the following cleaning precautions: • Allow the oven to cool before cleaning. • Wear rubber gloves when cleaning the range manually. REMOVE SPILLOVERS AND HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANINGS WILL REDUCE THE NUMBER OF MAJOR CLEANINGS LATER.

  • Page 14: General Cleaning

    General Cleaning How to Clean Surfaces Use hot, soapy water and a cloth. Dry with a clean cloth. Aluminum (Trim Pieces) & Vinyl For general cleaning, use hot, soapy water and a cloth. For more difficult soils and built-up grease, Glass, Painted and Plastic apply a liquid detergent directly onto the soil.

  • Page 15: Raise/Lower Top For Cleaning

    General Cleaning (continued) When lowering the top, grasp the sides with fingertips only. Be careful not to pinch fingers. Also, DO NOT drop or bend the rangetop when raising or lowering. This could damage the surface. DO NOT turn the burners on when the cooktop is raised for cleaning.

  • Page 16: General Cleaning

    General Cleaning (continued) The door is heavy. For safe, temporary storage, lay the door flat with the inside of the door facing down. Removing the Oven Door Broiler Compartment Roller Guide Stop Front Frame Griddle Griddle Burner Reflection Plate Observation Hole Storage Drawer Storage Drawer Roller...

  • Page 17: Changing Cooktop And Oven Lights

    Changing Cooktop and Oven Lights (some models) Adjusting Oven Temperature (Easy and continuous cleaning models only, Self-cleaning model refer to the electronic timer guide) Figure 1: Back of Control Knob Be sure the oven is unplugged and all parts are COOL before replacing the oven light.

  • Page 18: Avoid Service Checklist

    Avoid Service Checklist OCCURRENCE Oven Control Beeps and Displays -F1- through -F8- (some models). Range is not level. Cannot move appliance easily. Appliance must be accessible for service. Surface burners do not light. Flame burns half way around. Surface burner flame is orange. Oven does not operate Before you call for service, review this list.
  • Page 19 Entire oven does not operate. Oven and/or cooktop light does not work. Oven smokes excessively during broiling. Poor baking results. Self-Cleaning Cycle does not work. Soil is not completely removed after self- cleaning cycle. Flames inside oven or smoke from vent. Controls are not set properly.

  • Page 20: P.o. Box

    Major Appliance Warranty Information Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.
