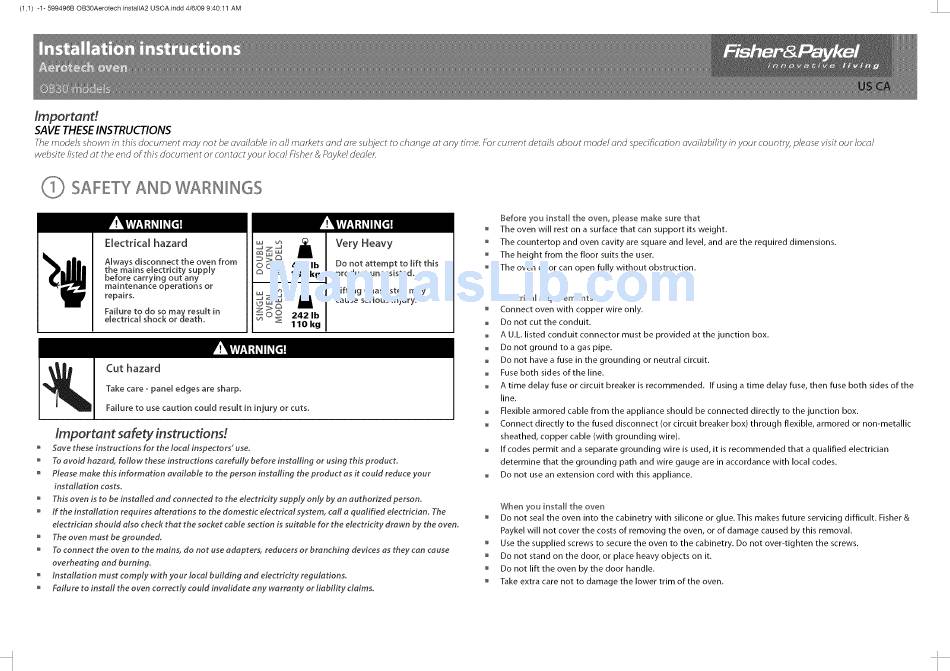

Fisher & Paykel OB30 Installation Instructions
Hide thumbs Also See for OB30:

Advertisement

(1,1)
-1- 599496B
OB30Aerotech
installA2
USCA.indd
4/6/09 9:40:11
AM
Importand
SAVE THESEINSTRUCTIONS
l h_÷ models
shown
in thLs docum_÷nt
mcJy not b_÷c_vc2ilc2bl_÷in c211 mc2rk_÷ts and
c2r_÷ subj,÷or to c hc2ng_÷ c2t c2ny tim_÷, f::or c urr_÷nt cDtoi/s
c2bout mocDI
c2nd sp_÷cificotion
c2vc2ilc2bility in your
country,
pl_÷c2s_÷ visit our/oco/
w_÷bsit_÷ /ist_÷d at the÷ _÷nd of this docum_÷nt
or con
toct your /ocol
FTsh_÷r&
Pc2ykd
d_÷ol_÷r.
SAFETY AND WARNINGS
Electrical
hazard
Always
disconnect
the oven
from
the mains
electricity
supply
before
carrying
out any
maintenance
operations
or
repairs.
Failure
to do so may result
in
electrical
shock
or death.
Cut hazard
4o9,b
186 kg
szs
_
2421b
110
kg
Very Heavy
Do not attempt to lift this
product unassisted.
Lifting
unassisted
may
cause
serious
injury.
Take care o panel
edges
are sharp.
Failure
to use caution
could
result
in injury
or cuts.
Important
safety instruction!!
Save these instructions
for the local inspectors"
use.
To avoid
hazard,
follow
these instructions
carefully
before
installing
or using
this product.
Please make this information
available
to the person
instafling
the product
as it could
reduce your
installation
casts,
This oven is to be instafled
and connected
to the electricity
supply
only by an authorized
person.
If the installation
requires
alterations
to the domestic
electrical
system,
carl a qualified
electrician.
The
electrician
should
also check
that the socket
cable section
is suitable
for the electricity
drawn
by the oven.
The oven must be grounded.
To connect
the oven to the mains,
do not use adapters,
reducers
or branching
devices as they can cause
overheating
and burning.
Installation
must comply
with your
local building
and electricity
regulations.
Failure
to install
the oven correctly
could invalidate
any warranty
or liability
claims.
Before you install the oven, please make sure that
The oven will rest on a surface that can support its weight.
The countertop and oven cavity are square and level, and are the required dimensions.
The height from the floor suits the user.
The oven door can open fully without obstruction.
Electrical requirements
Connect oven with copper wire only.
Do not cut the conduit.
A U.L. listed conduit connector must be provided at the junction box.
Do not ground to a gas pipe.
Do not have a fuse in the grounding or neutral circuit.
Fuse both sides of the line.
A time delay fuse or circuit breaker is recommended.
If using a time delay fuse, then fuse both sides of the
line.
Flexible armored cable from the appliance should be connected directly to the junction box.
Connect directly to the fused disconnect (or circuit breaker box) through flexible, armored or non-metallic
sheathed, copper cable (with grounding wire).
If codes permit and a separate grounding wire is used, it is recommended that a qualified electrician
determine that the grounding path and wire gauge are in accordance with local codes.
Do not use an extension cord with this appliance.
When
you
install
the oven
Do not seal the oven into
the cabinetry
with
silicone
or glue. This makes
future
servicing
difficult.
Fisher &
Paykel will not cover
the costs of removing
the oven,
or of damage
caused
by this removal.
Use the supplied
screws
to secure the oven to the cabinetry.
Do not over-tighten
the screws.
Do not stand
on the door,
or place heavy objects
on it.
Do not lift the oven by the door handle.
Take extra care not to damage
the lower trim
of the oven.
