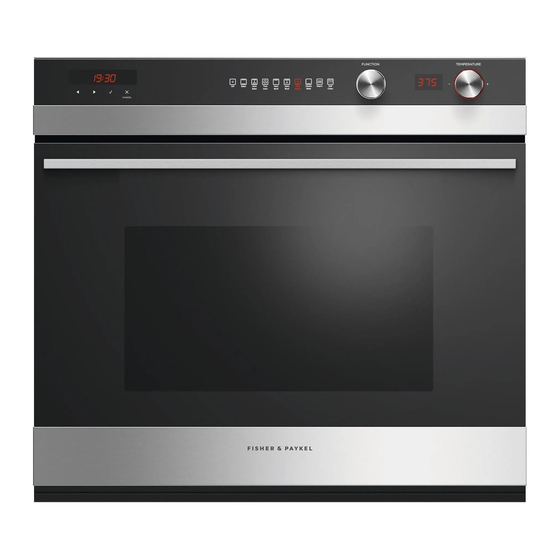

AEROTECH OVEN
OB30 models
USER GUIDE
US CA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OB30SCEPX3 N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fisher & Paykel OB30SCEPX3 N

Summary of Contents for Fisher & Paykel OB30SCEPX3 N

  • Page 1 AEROTECH OVEN OB30 models USER GUIDE US CA...
  • Page 2 This user guide is an accompaniment to your ‘Quick start guide’ which is included with your oven. For operating instructions, see your ‘Quick start guide’. If you no longer have your ‘Quick start guide’, you can download it from our local website, listed on the back cover. Refer to your ‘Quick start guide’...

  • Page 3: Table Of Contents

    CONTENTS Safety and warnings Cooking guide Oven functions Cooking charts Automatic cooking Using the meat probe User preference settings Sabbath setting Care and cleaning Using the Self Clean function Troubleshooting Alert codes Warranty and service IMPORTANT! SAVE THESE INSTRUCTIONS The models shown in this user guide may not be available in all markets and are subject to change at any time.

  • Page 4: Safety And Warnings

    SAFETY AND WARNINGS Your oven has been carefully designed to operate safely during normal cooking procedures. Please keep the following safety instructions in mind when you are using it: WARNING! Electrical Shock Hazard Turn the oven off at the wall before replacing the oven lamp. Failure to follow this advice may result in electrical shock or death.
  • Page 5 SAFETY AND WARNINGS WARNING! Cut Hazard Take care - some edges are sharp. Failure to use caution could result in injury or cuts. IMPORTANT SAFETY INSTRUCTIONS! To reduce the risk of fire, electrical shock, injury to persons or damage when using the oven, follow the important safety instructions listed below: Read all the instructions before using the oven.
  • Page 6 SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTIONS! Use only dry oven mitts or potholders. Moist or damp potholders on hot surfaces ● could result in burns from steam. Do not let potholders touch hot areas or heating elements. Do not use a towel or a bulky cloth for a potholder. It could catch fire. Do not heat unopened food containers.
  • Page 7 SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTIONS! Before starting a Self Clean cycle, remove oven shelves, side racks, and all other ● cookware/utensils, and wipe up large food spills or grease deposits. Before starting a Self Clean cycle, make sure you move any pet birds to another, ●...

  • Page 8: Cooking Guide

    COOKING GUIDE Congratulations on your new purchase. Your Fisher & Paykel oven has a number of features to make cooking a great experience for you: a wide choice of oven functions ● a convenient Self-Clean function – see ‘Using the Self Clean function’ ●...
  • Page 9 COOKING GUIDE BAKING For best results when baking, always pre heat your oven. The broil element may come ● on for a short time while the oven is heating up. The halo will turn from red to white when the preset temperature is reached. Do not open the door until at least of the way through cooking.
  • Page 10 COOKING GUIDE BROILING This is a healthier alternative to frying. ● Always broil with the oven door completely shut. ● If you use glass or ceramic pans, be sure they can withstand the high temperatures of ● broiling. To avoid piercing the meat and letting juices escape, use tongs or a spatula to turn the ●...

  • Page 11: Oven Functions

    OVEN FUNCTIONS Bake upper outer and lower elements Heat comes from both the upper and lower elements. The fan is not used in this ● function. Ideal for cakes and foods that require baking for a long time or at low temperatures. ●...
  • Page 12 OVEN FUNCTIONS True Aero fan and rear element By using the central rear heating element and fan, hot air is blown into the cavity, ● providing a consistent temperature at all levels, making it perfect for multi-shelf cooking. Trays of cookies cooked on different shelves are crisp on the outside and chewy in the ●...
  • Page 13 OVEN FUNCTIONS Maxi Broil upper inner and outer elements Intense radiant heat is delivered from both top elements. There are 9 steps between ‘Lo’ ● and ‘Hi’ (100% power). Preheating is not essential although some people prefer to allow the element to heat for ●...
  • Page 14 OVEN FUNCTIONS Aero Pastry fan plus lower element The fan circulates heat from the lower element throughout the oven. ● Excellent for cooking pizza as it crisps the base beautifully without overcooking the ● topping. Ideal for foods such as sweet and savory pastry foods and delicate foods that require some top browning eg frittata, quiche.
  • Page 15 OVEN FUNCTIONS this is not a cooking function Provides a constant low heat of less than 195°F / 90°C. ● Use to keep cooked food hot, or to warm plates and serving dishes. ● To reheat food from cold, use another oven function to heat the food Warm piping hot and only then change to Warm, as this function alone will not bring cold food up to a high enough temperature to kill any...

  • Page 16: Cooking Charts

    COOKING CHARTS The recommendations in the following charts are guidelines. A lot of factors affect the exact time and temperature required for baking, roasting and broiling. Follow the instructions in your recipe or on packaging and be prepared to adjust the oven settings and cook times to achieve the best possible results for you.
  • Page 17 COOKING CHARTS This chart will help you to match your cooking requirements to the most appropriate cooking function. Note: Recommended method Alternative method ROASTING Roast beef/pork/lamb** Roast chicken (whole) Roast chicken (pieces) Roast turkey Vegetables BROILING Steak/Chops/Cutlets Fish Ground meat patties Vegetables Toast * Some models only...
  • Page 18 COOKING CHARTS Shelf True Aero Temp °F Temp °C Time (min) (single; multi) BAKING American sandwich loaf - Bread 40-50 9”x5”/23x13cm loaf pan wholewheat loaf Bread 35-45 - 9”x5”/23x13cm loaf pan Cornbread 22-28 Cookies 425-450 215-230 10-12 Muffins, large 23-30 English scones 425-450 215-230...
  • Page 19 COOKING CHARTS Shelf Aero Bake Temp °F Temp °C Time (min) (single; multi) BAKING American sandwich loaf - Bread 325-350 170-175 35-50 9”x5”/23x13cm loaf pan wholewheat loaf Bread 2 or 3 350-375 180-190 30-45 - 9”x5”/23x13cm loaf pan Cornbread 400-425 210-215 20-25 Cookies 400-425 210-215...
  • Page 20 COOKING CHARTS Shelf Bake Temp °F Temp °C Time (min) (single; multi) BAKING American sandwich loaf - Bread 2 or 3 40-50 9”x5” /23x13cm loaf pan wholewheat loaf Bread 2 or 3 35-45 - 9”x5” /23x13cm loaf pan Cornbread 22-28 Cookies 425-450 215-230...
  • Page 21 COOKING CHARTS Aero Pastry Shelf Temp °F Temp °C Time (min) BAKING Pastry shell 20-30 baked ‘blind’ 4 then 20-30 then bake pastry ‘blind’ then Pumpkin pie then then add filling 30-35 Baked cheesecake 55-60 (in ‘water bath’) 20-30 then bake pastry ‘blind’...
  • Page 22 COOKING CHARTS Maxi Broil & Broil* Shelf Broil setting Time (min) Beef Steaks - rare 8-10 Steaks - medium 6 or 7 10-15 Hamburger ground - patties 6 or 7 12-15 Lamb Chops - medium 15-20 Chops - well done 20-25 Pork Chops - well done...
  • Page 23 COOKING CHARTS Aero Broil Shelf Temp °F Temp °C Time (min) Beef 18-32 per rare lb/450g Boneless roast 1-4 25-40 per medium lb/ 450-1800g lb/450g 30-55 per well done lb/450g Lamb Chops - medium 6 or 7 400-440 200-225 15-20 Chops - well done 6 or 7 400-440 200-225...
  • Page 24 COOKING CHARTS...
  • Page 25 COOKING CHARTS...

  • Page 26: Automatic Cooking

    AUTOMATIC COOKING You can set the oven(s) to automatically turn on later, cook for a preset time (cooking ● time), then automatically turn off at a preset stop time. See the example and instructions below (steps 1 to 7). If you start cooking manually and only want the oven to turn off automatically after a ●...
  • Page 27 AUTOMATIC COOKING Select function and temperature Double oven models only: To set automatic cooking for an oven - press the UPPER or LOWER selector button. 1 Select a function. 2 Adjust the temperature. The function halo will glow white. 5APress the right scroll 3 Check the clock shows 4APress the right scroll the correct time of day.
  • Page 28 AUTOMATIC COOKING Set the stop time 6APress the right scroll button to scroll 7APress the right scroll button to set to the stop time indicator. the time you would like your food to 6BPress the select button to confirm. be ready by (ie the stop time). 7BPress the select The display will flash.
  • Page 29 AUTOMATIC COOKING Double oven models only: To set automatic cooking for the second oven - press the UPPER or LOWER selector button to select the second oven and repeat steps 1-7 above. When automatic cooking is set The oven and the lights will stay off, the halos will be unlit, but your oven is now set for ●...

  • Page 30: Using The Meat Probe

    USING THE MEAT PROBE The meat probe is supplied with some models only. For other models it may be purchased separately. For further information or to purchase a meat probe, contact Customer Care, your authorized service centre or visit our website www.fisherpaykel.com.
  • Page 31 USING THE MEAT PROBE 4APress the right scroll 5 Use the scroll button 4 times buttons to set the and the meat probe indicator will required meat temperature come on and the display will show (eg 167 F / 75 148.

  • Page 32: User Preference Settings

    USER PREFERENCE SETTINGS You can set your oven to: display the temperature in degrees Celsius or Fahrenheit ● give audio feedback (tones and beeps) or operate quietly ● display time as 12-hr or 24-hr ● operate with the display off ●...
  • Page 33 USER PREFERENCE SETTINGS 5 Press the right scroll button to scroll 6 Press the select button to save the through the options for that particular new option . setting. Refer to the table below. 7 For all options except ‘Display off’ : press the cancel button to quit the user preference menu.

  • Page 34: Sabbath Setting

    SABBATH SETTING This setting is designed for religious faiths that observe a ‘no work’ requirement on the Sabbath. While your oven is in Sabbath setting The display, dial halos and indicators will be unlit, the controls will be unresponsive. ● No tones or beeps will sound.
  • Page 35 SABBATH SETTING 3 Press the select 4APress the scroll button to activate buttons to set the the option. time (hrs). You may set the time for up   The display will flash to 99 hours. ● 4BDouble oven models only: Select the oven(s) you wish to use by pressing the UPPER or LOWER oven selector button...

  • Page 36: Care And Cleaning

    CARE AND CLEANING Removing and replacing the oven door IMPORTANT! Do not lift the oven door by its handle. Doing so may damage the door. ● Make sure the oven and the door are cool before you begin to remove the door. ●...
  • Page 37 CARE AND CLEANING To replace the oven door Hinge slot Hinge tongue 1 Hold the door firmly in an approximately 2 Align the hinge tongue with the hinge halfway open position. slots and push the door until you feel the latches locate into position on each side.
  • Page 38 CARE AND CLEANING Removing and replacing the sliding shelves and side racks 1 To remove a sliding shelf, grip it by its two front corners (making sure you are gripping the wire shelf and the sliding frame together), tilt upwards and pull it out of the oven. 2 To remove the side racks, gently push the retaining wire from underneath the lock stud, then swing the lowest edge of the side rack up and out towards the center of the oven until the rack is almost horizontal.
  • Page 39 CARE AND CLEANING Changing the oven light bulbs The oven is illuminated by three 12 volt/20 watt halogen bulbs. These have a very long life, but if you should need to replace one, use only a replacement bulb purchased from your nearest Fisher &...
  • Page 40 CARE AND CLEANING Manual cleaning ALWAYS NEVER Before any manual cleaning or Never use a steam cleaner. ● ● maintenance, first wait for the oven to Never store flammable substances in the ● cool down to a safe temperature to oven.
  • Page 41 CARE AND CLEANING Manual cleaning WHAT? HOW? IMPORTANT! Clean with a solution of mild Dials Do not use stainless steel or detergent and hot water, then wipe oven cleaner on the dials, as dry. doing so may damage their coating. Clean with a solution of mild Stainless steel Always read the label...

  • Page 42: Using The Self Clean Function

    USING THE SELF CLEAN FUNCTION During the pyrolytic Self Clean cycle the extremely high temperature burns off and ● breaks down grime and grease deposits. All that is left is a small amount of gray ash that you can easily remove. There is a choice of Self Clean cycles: ●...
  • Page 43 USING THE SELF CLEAN FUNCTION To start a Self Clean cycle 1 Remove oven shelves, side racks and all other accessories, bakeware, and utensils. 2 Wipe up any spills. Failure to do so may discolor the oven surfaces. 3 Check the inner glass pane of the oven door. If it has soiling on it (eg stains from greasy splatter), you will need to clean it manually before starting a Self Clean cycle.
  • Page 44 USING THE SELF CLEAN FUNCTION 5 Select the Self Clean function.   The display will flash ● 6 Press the right scroll button once for the Self Clean cycle   - the display will flash (5 hours), Press the right scroll button a second time for Light Self Clean cycle ...
  • Page 45 USING THE SELF CLEAN FUNCTION When a Self Clean cycle has finished The oven will: emit a long tone ● automatically turn off ● automatically unlock the door. ● In a few seconds, the display will show the time of day. You need to: 1 wait for the oven to cool down completely 2 remove the gray ash with a small brush or damp cloth...

  • Page 46: Troubleshooting

    TROUBLESHOOTING Troubleshooting chart If there is a problem, check the chart below to see if you can fix it. If the problem cannot be fixed or persists, call your Authorized Repairer or Customer Care. PROBLEM POSSIBLE CAUSES WHAT TO DO General The oven does not work.
  • Page 47 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO General This is normal. For safety reasons the I can feel hot air cooling fans will continue blowing out of the vents after I have turned the to run even when you have oven off.
  • Page 48 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO General The oven is in ‘Demo’ mode. Call Customer Care. The displays work, and the function and temperature dials halos come on but the oven does not heat up. You are trying to use a You cannot use the meat The automatic cooking meat probe and automatic...
  • Page 49 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO Self Clean function (some models only) This is normal: the oven’s cooling fans operate at their highest During a Self Clean speed. cycle, the oven is louder than usual. The display shows - - The meat probe mode has Ensure the meat probe is been selected but the meat...
  • Page 50 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO Self Clean function (some models only) This is normal: if the function Wait until the cool-down I have cancelled a Self dial halo is unlit, you have phase has finished. A Clean cycle but cannot use the oven: successfully cancelled the long tone will sound...

  • Page 51: Alert Codes

    ALERT CODES If there is a problem, the oven will: automatically suspend all oven functions ● beep five times ● display an alert code. ● IMPORTANT! Do not turn off the mains power supply to the oven (wall switch) if you get an alert code, unless the instructions in the chart following specifically instruct you to.
  • Page 52 ALERT CODES ALERT CODE POSSIBLE CAUSES WHAT TO DO  The oven has overheated. 1 Allow the oven to cool down. 2 Once the oven has cooled down and the door has unlocked, the alert code will disappear. You can now use the oven again.

  • Page 53: Warranty And Service

    WARRANTY AND SERVICE Before you call for service or assistance ... Check the things you can do yourself. Refer to the installation instructions and your user guide and check that: 1 Your product is correctly installed. 2 You are familiar with its normal operation. If after checking these points you still need assistance or parts, please refer to the Service &...
  • Page 54 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2018. All rights reserved. The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Dealer to ensure this booklet correctly describes the product currently available.
