Fisher & Paykel OB30 Series Installation Instructions Manual

Installation instructions
Aerotech oven
OB30 models
Important!
SAVE THESE INSTRUCTIONS
The models shown in this document may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please go to our website
www.fisherpaykel.com or contact your local Fisher & Paykel dealer.

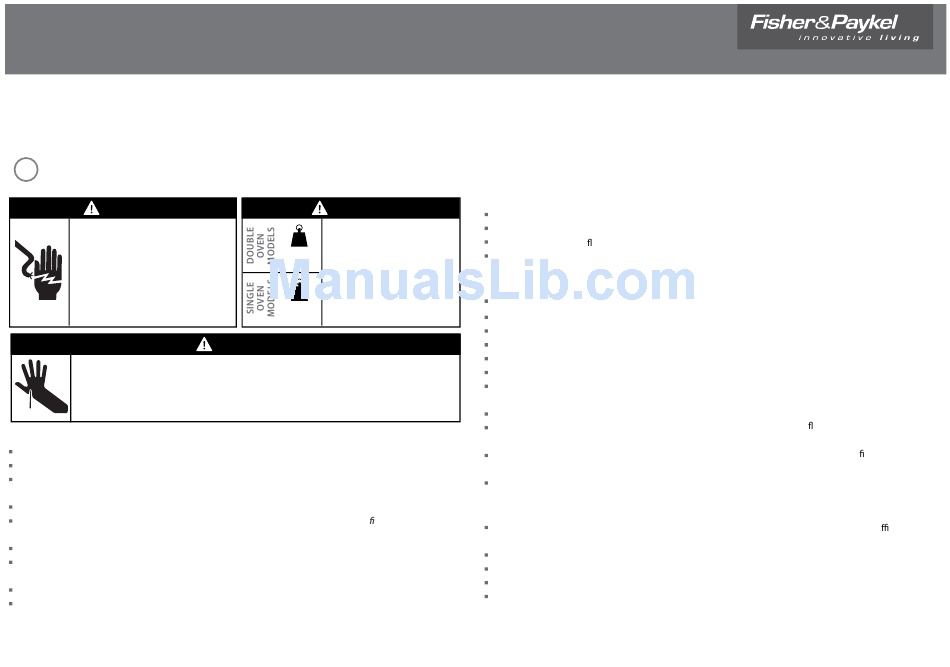

SAFETY AND WARNINGS

1
WARNING!
Electrical hazard
Always disconnect the oven from
the mains electricity supply
before carrying out any
maintenance operations or
repairs.
Failure to do so may result in
electrical shock or death.
Cut hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
Important safety precautions!
Save these instructions for the local inspectors' use.
To avoid hazard, follow these instructions carefully before installing or using this product.
Please make this information available to the person installing the product as it could reduce your
installation costs.
This oven is to be installed and connected to the electricity supply only by an authorized person.
If the installation requires alterations to the domestic electrical system, call a quali ed electrician. The
electrician should also check that the socket cable section is suitable for the electricity drawn by the oven.
The oven must be grounded.
To connect the oven to the mains, do not use adapters, reducers or branching devices as they can cause
overheating and burning.
Installation must comply with your local building and electricity regulations.
Failure to install the oven correctly could invalidate any warranty or liability claims.
WARNING!
Very Heavy
Do not attempt to lift this
409 lb
product unassisted.
186 kg
Lifting unassisted may
cause serious injury.
242 lb
110 kg
WARNING!
Before you install the oven, please make sure that
The oven will rest on a surface that can support its weight.
The countertop and oven cavity are square and level, and are the required dimensions.
The height from the oor suits the user.
The oven door can open fully without obstruction.
Electrical requirements
Connect oven with copper wire only.
Do not cut the conduit.
A U.L. listed conduit connector must be provided at the junction box.
Do not ground to a gas pipe.
Do not have a fuse in the grounding or neutral circuit.
Fuse both sides of the line.
A time delay fuse or circuit breaker is recommended. If using a time delay fuse, then fuse both sides of the
line.
Flexible armored cable from the appliance should be connected directly to the junction box.
Connect directly to the fused disconnect (or circuit breaker box) through exible, armored or non-metallic
sheathed, copper cable (with grounding wire).
If codes permit and a separate grounding wire is used, it is recommended that a quali ed electrician
determine that the grounding path and wire gauge are in accordance with local codes.
Do not use an extension cord with this appliance.
When you install the oven
Do not seal the oven into the cabinetry with silicone or glue. This makes future servicing di cult. Fisher &
Paykel will not cover the costs of removing the oven, or of damage caused by this removal.
Use the supplied screws to secure the oven to the cabinetry. Do not over-tighten the screws.
Do not stand on the door, or place heavy objects on it.
Do not lift the oven by the door handle.
Take extra care not to damage the lower trim of the oven.
US CA
