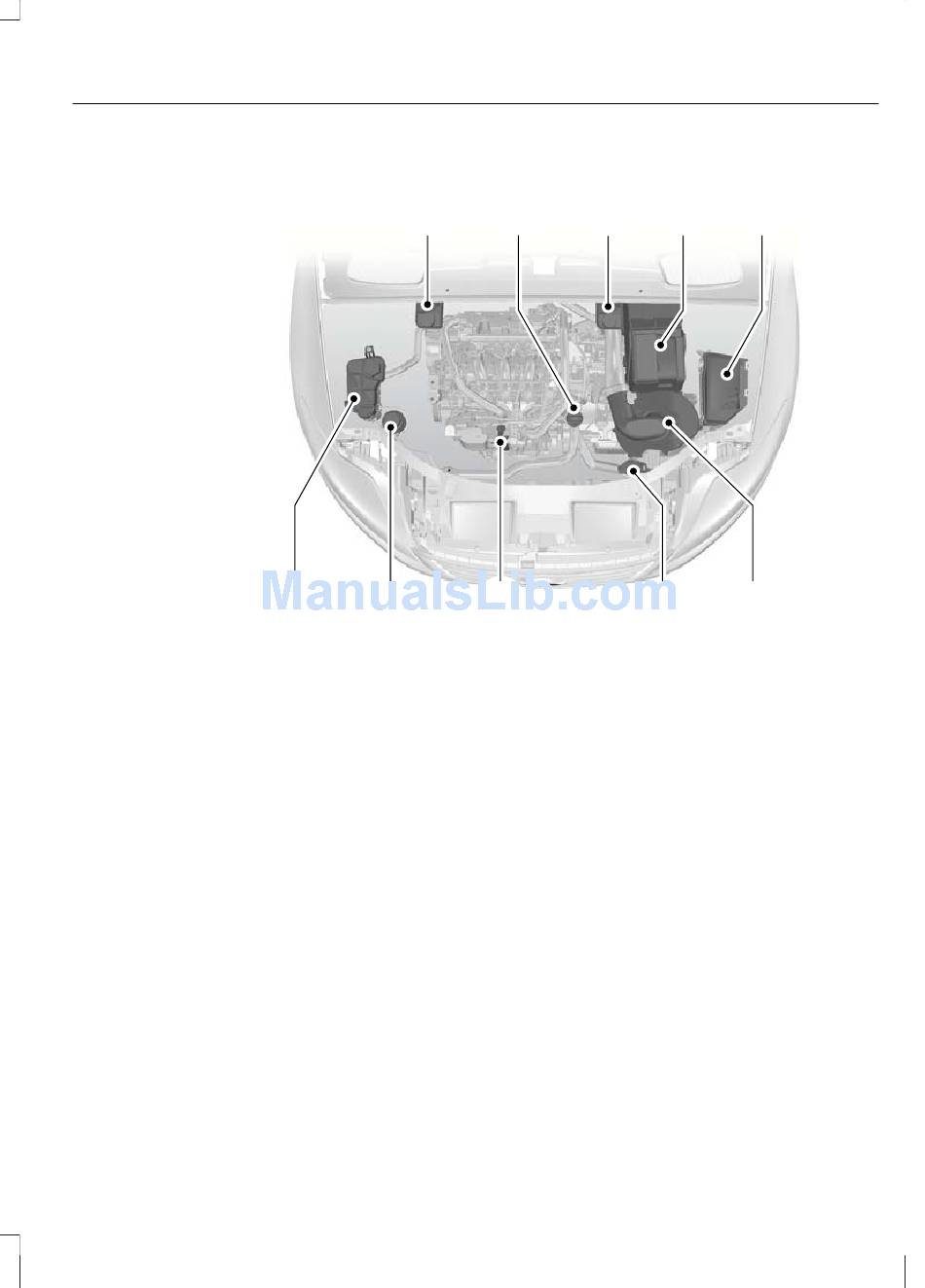

UNDER BONNET OVERVIEW - 2.2L DURATORQ-TDCI (DW) DIESEL
E87715
A Brake and clutch fluid reservoir (right-hand drive): See Brake and Clutch Fluid
Check (page 220).
B Engine oil filler cap
C Brake and clutch fluid reservoir (left-hand drive): See Brake and Clutch Fluid
Check (page 220).
D Battery: See Vehicle battery (page 226).
E Engine compartment fuse box: See Fuses (page 193).
F Air cleaner: No maintenance necessary.
G Screen washer fluid reservoir: See Washer Fluid Check (page 221).
H Engine oil dipstick
I Power steering fluid reservoir: See Power Steering Fluid Check (page 220).
J Engine coolant reservoir: See Engine Coolant Check (page 219).
1
The filler caps and the engine oil dipstick are coloured for easy identification.
