Page 1: Server Devices
Tesira ® SERVER & SERVER-IO Server Devices Operation Manual May 2012 Biamp Systems, 9300 SW Gemini Drive, Beaverton, Oregon 97008 U.S.A. (503) 641-7287 www.biamp.com... -
Page 2: Table Of Contents
TESIRA SERVER-IO SPECIFICATIONS . . . . . . . . . . . . . . . . . . . -
Page 3: Tesira Server
Tesira network as well as General Purpose Input/Output (GPIO) connections. In cases where local I/O is advantageous, a Tesira standard I/O card may be installed. The modular DSP features two new Biamp algorithms, SpeechSense™ and AmbientSense™, which enhance speech processing by more accurately distinguishing between human speech and noise. -
Page 4: Tesira Server-Io
SERVER-IO can support up to 12 standard Tesira I/O cards for up to 48 channels of audio I/O (e.g. mic and line level, VoIP, and telephone interface). The on-board DSP features two new Biamp algorithms, SpeechSense and AmbientSense, both of which enhance speech processing by more accurately distinguishing between human speech and noise. -

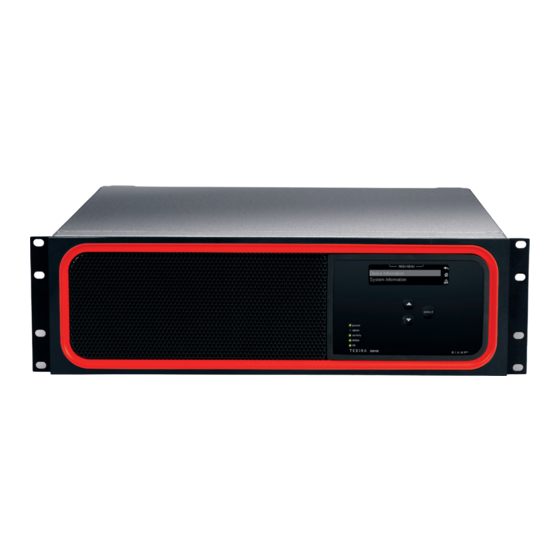

Page 5: Front Panel
TESIRA SERVER & TESIRA SERVER-IO FRONT PANEL The SERVER-IO front panel is shown below and is identical to the SERVER panel. 1 – Ventilation filter cover 2 – Multi-color LEDs 3 – Display navigation buttons 4 – OLED Display DISPLAY The Servers feature an OLED display that provides information about the server device as well as the Tesira system that is connected to the server. -
Page 6: Menu Screen
TESIRA SERVER & TESIRA SERVER-IO FRONT PANEL Menu Screen 1 – Menu title bar 2 – Scroll indicator 3 - Previous screen 4 – Home screen 5 – Fault menu A menu screen contains a list of items from which navigation to other menus can be selected. At the right are icons that provide quick navigation to other screens. -
Page 7: Dim Mode
TESIRA SERVER & TESIRA SERVER-IO FRONT PANEL Dim Mode The display is at the [Dim display brightness] and should appear the same except for the brightness level. Pressing any button will transition back to the previous mode and respond to the control movement (i.e. move the cursor, make a selection, etc.). -
Page 8: Rear Panel
TESIRA SERVER & TESIRA SERVER-IO REAR PANEL TESIRA SERVER 1 – AC Power inlet 2 – Serial Port 1 3 – Serial Port 2 4 – Secondary Ethernet control port (RJ-45) 5 – Primary Ethernet control port (RJ-45) 6 – GPIO connections 7 –... -
Page 9: Audio Card Options
TESIRA SERVER & TESIRA SERVER-IO AUDIO CARD OPTIONS SIC-4 The Tesira SIC-4 is a modular analog input card for use with Tesira SERVER and SERVER-IO devices. Each SIC- 4 provides four channels of mic or line level audio input. The inputs are electrically balanced and provided on plug-in barrier strip connectors. -
Page 10: Tesira Server Specifications
TESIRA SERVER SPECIFICATIONS Tesira SERVER Specifications (audio specifications given reflect use of SIC-4 and SOC-4) Frequency Response +0/-0.25dB Phantom Power: +48 VDC (20Hz~20kHz @ +4dBu): (7mA/input) THD+N (20Hz~20kHz): Cross Talk (channel to channel @ 1kHz): @ 0dB Gain, +4dBu In <... -
Page 11: Tesira Server-Io Specifications
TESIRA SERVER-IO SPECIFICATIONS Tesira SERVER-IO Specifications (audio specifications given reflect use of SIC-4 and SOC-4) Frequency Response +0/-0.25dB Phantom Power: +48 VDC (20Hz~20kHz @ +4dBu): (7mA/input) THD+N (20Hz~20kHz): Cross Talk (channel to channel @ 1kHz): @ 0dB Gain, +4dBu In <... -
Page 12: Fcc Compliance
Service - This equipment is not user serviceable. If trouble is experienced with this equipment US:6RMBR00BSTC-2, for repair or warranty information, please contact Biamp Systems Corporation, phone number 503.641.7287. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved. -
Page 13: Warranty
ORIGINAL PURCHASER OF THE PROFESSIONAL SOUND EQUIPMENT DESCRIBED IN THIS MANUAL 1. Biamp Systems warrants to the original purchaser of new products that the product will be free from defects in material and workmanship for a period of 5 YEARS from the date of purchase from an authorized Biamp Systems dealer, subject to the terms and conditions set forth below. -
Page 14: Ec Declaration
DIRECTIVES below except as noted herein. Any alterations to the product not agreed upon and directed by Biamp Systems Corporation will invalidate this declaration. ®... -
Page 15: Eu Rohs Compliant
COMPLIANCE RoHS COMPLIANT This Biamp product, including all attendant cables and accessories supplied by Biamp, meets all requirements of EU Directives 2002/95/EC of January 27, 2003, and 2005/618/EC of August 18, 2005, the EU RoHS Directives. An EU RoHS Materials Content Declaration document may be obtained at www.biamp.com...
Need help?
Do you have a question about the Tesira SERVER and is the answer not in the manual?
Questions and answers

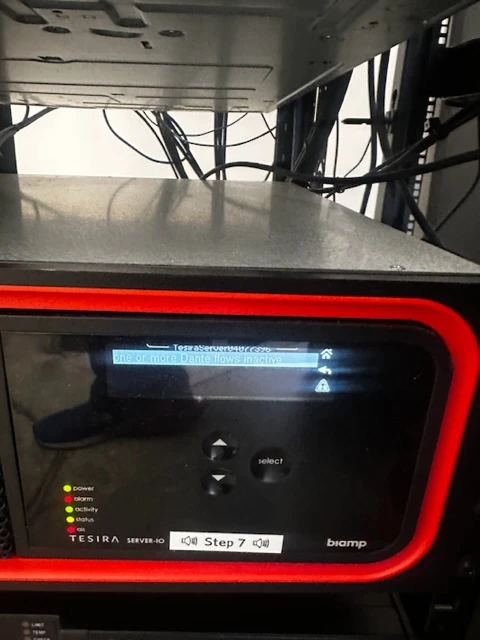

How do I clear error message one or more Dante flows inactive
To clear the "One or more Dante flows inactive" error message on a Biamp SERVER, follow these steps:
1. Open your Tesira design.
2. Right-click on the Dante blocks and select "Edit block parameters."
3. Deselect the "Fault when inactive" checkbox to disable the fault warning.
Additionally, check for possible fault causes:
- Ensure all Dante routes are active and used.
- Change Dante Input blocks to match the number of channels actually used (e.g., use a 1-channel block if only 1 channel is needed).
- Set all Dante Input and Output blocks to "Fixed in Unit."
- Confirm that Dante devices are connected and routing is correct in Dante Controller.
- If needed, clear Dante subscriptions and reload the Tesira system file.
This answer is automatically generated
