MS-1E
OPERATION MANUAL
585.0394.90A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vocia MS-1E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Biamp Vocia MS-1E

  • Page 1 MS-1E OPERATION MANUAL 585.0394.90A...

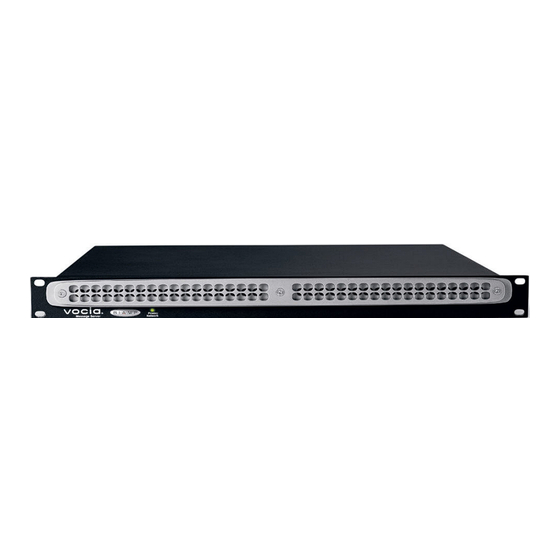

  • Page 2 MS-1e Product Description The MS-1e is a networked message server that supports multiple paging functions within a Vocia system—including message playback, event scheduling, VoIP paging interface, logging and remote access.
  • Page 3 MS-1e Setup and Installation Setup and Use The Vocia software provides an intuitive interface for configuration of the MS-1e. The information supplied by this manual relates to physical connections and assignment. For more details on software setup, please consult the Vocia Help File. Installation The unit requires one 1.75 inch (44.45 mm) high and 19 inch wide rack space with 17 inch (432 mm) depth.
  • Page 4 MS-1e Front MS-1e Front Panel The Unit features one power indication LED on the front panel: Not illuminated: The device is not powered. • Flashing green: The unit is receiving power but not data, or the unit has not been configured •...
  • Page 5 This plug is the main disconnecting device and should remain readily operable. There are no user interchangeable parts. Please contact Biamp Technical Support or your local distributor for all service requirements.
  • Page 6 4 - Inactive These ports are inactive at this time. 5 - Inactive This port is inactive at this time NOTE Connection of external devices to inactive ports is not required or recommended. 6 - Device ID The rotary ID switches give the unit a unique Device ID. The switches are in hexadecimal format. All units of the same device type must have a unique Device ID to function properly within a Vocia Paging World.
