- Page 1 SERVER SERVER IO OPERATION MANUAL April 2019 585.0278.90C...
- Page 2 Tesira SERVER and SERVER IO PRODUCT DESCRIPTION The Tesira SERVER is a digital network server. It is factory configured with one DSP-2 card and can accept up to a total of eight DSP-2 cards. The SERVER is also factory configured with one AVB-1 card and has a second slot that can be outfitted with an additional AVB-1 card, a 32 x 32 channel SCM-1 CobraNet card, a 64 x 64 channel DAN-1 Dante™...

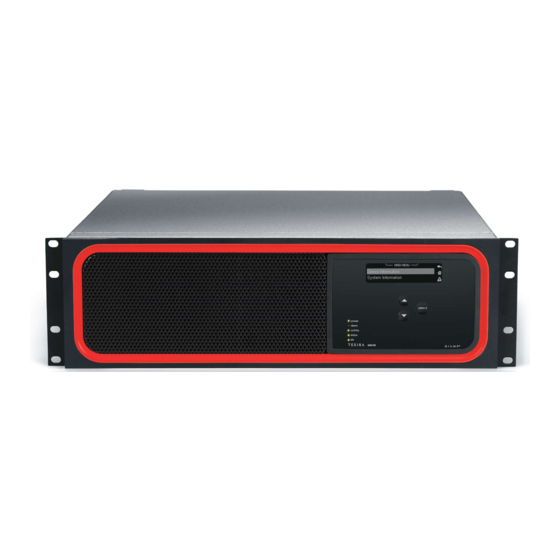

- Page 3 Tesira SERVER and SERVER IO FRONT PANEL Tesira SERVER and SERVER IO front panel (identical) 1 – Ventilation fan cover 2 – LED status indicators 3 – Display navigation buttons 4 – OLED display Ventilation fan cover Each device has a perforated cover to allow cool air into the chassis. A variable speed temperature controlled fan allows air into the front of the unit and out of the rear left side.
- Page 4 Tesira SERVER and SERVER IO FRONT PANEL Display Navigation Buttons Capacitive-touch buttons allow navigation through the OLED display menu to view and configure device and networking information, as well as see system-wide faults. Navigating the display is accomplished by touch-sensitive UP and DOWN and SELECT buttons.
- Page 5 Tesira SERVER and SERVER IO FRONT PANEL Network Parameters The network parameters screen shows the following information Host name • IP address • Subnet mask • Gateway • Display Settings The display settings operations include the following: Change brightness and contrast •...
- Page 6 Tesira SERVER and SERVER IO REAR PANEL Tesira SERVER 1. AC Power inlet 2. Serial Port 1 3. Serial Port 2 4. Secondary Ethernet control port (RJ-45) 5. Primary Ethernet control port (RJ-45) 6. GPIO connections 7. Slot 2; always loaded with AVB-1 digital audio networking card for AVB 8.
- Page 7 SIC-4 The Tesira SIC-4 is a modular analog input card for use with Tesira SERVER and SERVER-IO devices. Each SIC-4 provides four channels of mic or line level audio input. The inputs are electrically balanced and provided on plug-in barrier strip connectors.
