- Page 1 TesiraFORTÉ® OPERATION MANUAL 585-0393-90C January 2016 BIAMP SYSTEMS 9300 SW GEMINI DRIVE, BEAVERTON, OREGON 97008 U.S.A. 503.641.7287 BIAMP.COM...

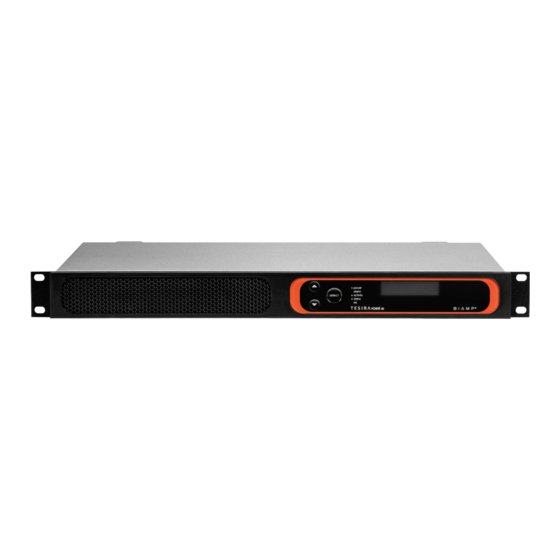

- Page 3 TesiraFORTÉ FIXED I/O SERVER DEVICES PRODUCT DESCRIPTION The TesiraFORTÉ products are server-class devices that are designed to operate as standalone processing devices, with Tesira expanders and controllers, or as part of a full set of Tesira devices. All TesiraFORTÉ models feature 12 analog mic/line level inputs and 8 analog mic/line level outputs in a fixed configuration.
-
Page 4: Led Status Indicators
TesiraFORTÉ FIXED I/O SERVER DEVICES FRONT PANEL TesiraFORTÉ AVB AI model shown 1 – Ventilation fan cover 2 – Display navigation buttons 3 – LED status indicators 4 – OLED display Ventilation fan cover Each device has a perforated cover to allow cool air into the chassis. A variable speed temperature controlled fan allows air into the front of the unit and out of the rear left side. -
Page 5: Oled Display
TesiraFORTÉ FIXED I/O SERVER DEVICES FRONT PANEL Green Yellow Power Unit is not powered Unit is powered Not applicable Not applicable Alarm Not applicable No fault is active in the Minor fault is active in Major fault is active device the device in the device Activity... - Page 6 TesiraFORTÉ FIXED I/O SERVER DEVICES FRONT PANEL System Information The system information screen shows the following information: Device audio state (on/off) • System description • Network Parameters The network parameters screen shows the following information Host name • IP address •...
-
Page 7: Gigabit Ethernet Port
TesiraFORTÉ FIXED I/O SERVER DEVICES REAR PANEL TesiraFORTÉ AVB TI model shown 1. AC power inlet 6. GPIO connections 7. Mic/line level output balanced analog 2. Gigabit Ethernet control port (RJ-45) connections 3. AVB port (RJ-45) – AVB models only 8. -
Page 8: Minimum Pc Requirements
Before getting started please 1. Install Tesira software on a Windows PC. The software must be Tesira version 2.0 or later. • The most up to date version can be downloaded from the Biamp website here: • http://www.biamp.com/products/tesira/downloads.aspx. 2. Minimum PC requirements: ®... - Page 9 TesiraFORTÉ FIXED I/O SERVER DEVICES QUICK START Assigning your computer’s IP address Go to Control Panel > Network and Sharing Center. Click on Local Area Connection. The Local Area Connection Status Dialog will open. Select Properties. The Local Area Connection Properties Dialog will open. Double-Click Internet Protocol Version 4 (TCP/IPv4).
-
Page 10: Manually Assigning An Ip Address
TesiraFORTÉ FIXED I/O SERVER DEVICES QUICK START The Internet Protocol Version 4 (TCP/IPv4) Properties will open. Update the IP address and Subnet mask to ‘Obtain an IP address automatically’ Click OK when complete. Click OK on the Local Area Connection properties dialog to confirm the changes. The PC may take up to one minute to resolve an IP address. - Page 11 TesiraFORTÉ FIXED I/O SERVER DEVICES SPECIFICATIONS TesiraFORTÉ AVB AI and TesiraFORTÉ AI Specifications Frequency Response: Phantom Power: +48 VDC (7mA/input) +0.25dB/-0.5dB 20Hz to 20kHz ,+4dBu output Crosstalk, channel to channel, 1kHz: < -85dB THD+N (22Hz to 22kHz): < 0.006% 0dB gain, +4dBu input <...
- Page 12 TesiraFORTÉ FIXED I/O SERVER DEVICES SPECIFICATIONS TesiraFORTÉ AVB TI and TesiraFORTÉ TI Specifications Frequency Response: Phantom Power: +48 VDC (7mA/input) 20Hz to 20kHz ,+4dBu output +0.25dB/-0.5dB Crosstalk, channel to channel, 1kHz: < -85dB THD+N (22Hz to 22kHz): < 0.006% 0dB gain, +4dBu input <...
-
Page 13: Important Safety Instructions
To reduce the risk of fire, use only No. 26 AWG solid copper wire for telecom circuit connections. Intended for Installation and Service by Skilled Personnel Only: CAUTION – To reduce the Risk of Electric Shock, Installation and Service of Biamp Products should be conducted only by Skilled Persons who are Biamp Qualified Audio Installation Professionals. -
Page 14: Instrucciones De Seguridad Importantes
Para la instalación y mantenimiento solo por parte de personal calificado: PRECAUCIÓN – Para reducir el riesgo de descarga eléctrica, la instalación y el mantenimiento de los productos Biamp deben ser realizados por personas calificados que formen parte de los Profesionales capacitados en la instalación de audio de Biamp. -
Page 15: Consignes De Sécurité Importantes
Installation et interventions réservées au personnel compétent: MISE EN GARDE – Pour limiter les risques d’électrocution, l’installation des produits Biamp et les interventions sur ces produits doivent être réalisées uniquement par du personnel compétent faisant partie des professionnels d’installation audio qualifiés de Biamp. -
Page 16: Wichtige Sicherheitshinweise
Brandrisiko zu reduzieren. Ausschließlich für Einbau und Wartung durch geschultes Personal vorgesehen: VORSICHT – Zur Verringerung der Stromschlaggefahr sind Einbau und Wartung von Biamp-Geräten ausschließlich durch geschulte Personen, bei denen es sich um von Biamp geschulte Audio-Fachleute handelt, vorzunehmen. Führen Sie keine anderen als die in der Betriebsanleitung angegebenen Wartungsarbeiten aus, vorausgesetzt, Sie wurden hierfür geschult. - Page 17 警告 – 由市电供电的产品采用了安全接地技术，必须与正确接地的市电插座连接，才能提供接地防护。 断开设备连接 – 市电插头可用于断开 市电电源且必须保持时刻可运行状态。 小心 – 在提供了 POTS 电话接口选项时，必须由训练有素的人员将电话接口与本设备的电信回路进行连接。为减少火灾风险，只能使用 26 号 AWG 实心铜线连接电话端口。 只适用于专业技术人员来执行的安装和服务： 小心 – 为减少电击带来的风险，Biamp 产品的安装和服务应该只能由 Biamp 音频安装专业技术人员来执行。 除非您是专业技术人员，否则不能执行未包含在操作说明中的任何服务。 在打开产品之前，专业人员必须先断开交流市电电源。 小心 – “辅助电源”的安装步骤只适用于专业技术人员，而且必须遵循所有的本地法规。 • 对于美国，国家电气法规 ANSI/NFPA 70。 • 对于加拿大，加拿大电气法规第 1 部 CSA C22.1 第 2-128、12-010(3) 和 12-100 节。...
- Page 18 위험을 줄이기 위해서는 전기 통신 회로 연결은 26번 AWG 솔리드 동선만 이용하십시오. 공인 전문가의 설치 및 서비스: 주의 – 전기 충격의 위험을 줄이기 위해, Biamp 제품의 설치 및 서비스는 Biamp 공인 오디오 설치 전문가에게 의뢰해야 합니다. 전문 인력이 아닌 경우, 작업 지침에 담긴 내용 이외의 사항에 대해 서비스를 제공하면 안됩니다.
- Page 19 .لتمديدات روابط دائرة االتصاالت AWG 26 :هذا الجهاز معد للتركيب والصيانة من قبل الموظفين الماهرين فقط Biamp إال من قبل األشخاص المهرة وهم المهنيون المؤهلون تنبيه - للحد من خطر حدوث صدمة كهربائية، ينبغي أال يتم تركيب وصيانة منتجات .Biamp في...
-
Page 20: Importantes Instruções De Segurança
Destinado para Instalação e Manutenção apenas por Pessoal Qualificado: ATENÇÃO – Para reduzir o risco de choque elétrico, a instalação e a manutenção dos produtos Biamp devem ser realizadas somente por pessoas qualificadas, que são profissionais de instalação de áudio qualificados da Biamp. -
Page 21: Важные Инструкции По Технике Безопасности
одножильный медный провод типа 26 AWG. Предназначено для установки и обслуживания только опытным персоналом ПРЕДОСТЕРЕЖЕНИЕ! Для снижения риска поражения электрическим током установку и обслуживание устройств Biamp должны выполнять только лица, которые являются опытными специалистами по установке аудиосистем Biamp. Не проводите какое-либо обслуживание, помимо указанного в инструкциях по эксплуатации, если вы не обладаете соответствующим опытом и... -
Page 22: Eu Rohs Compliant
EU RoHS COMPLIANT This Biamp product, including all attendant cables and accessories supplied by Biamp, meets all requirements of EU Directives 2011/65/EU. The information below is presented in accordance with similar requirements of Chinese law SJ/T11363-2006. 有害物质表 (Hazardous Substances Table) Biamp Systems Corporation 数字信号处理器... - Page 23 Within the Warranty Period, Biamp Systems will repair or replace, at Biamp Systems' option, nonconforming product, provided that Biamp Systems is notified within 30 days of the identification of such defect or failure. Replacement products may be new or reconditioned. If the repair or replacement of your nonconforming product is not reasonably available, at Biamp Systems’...
