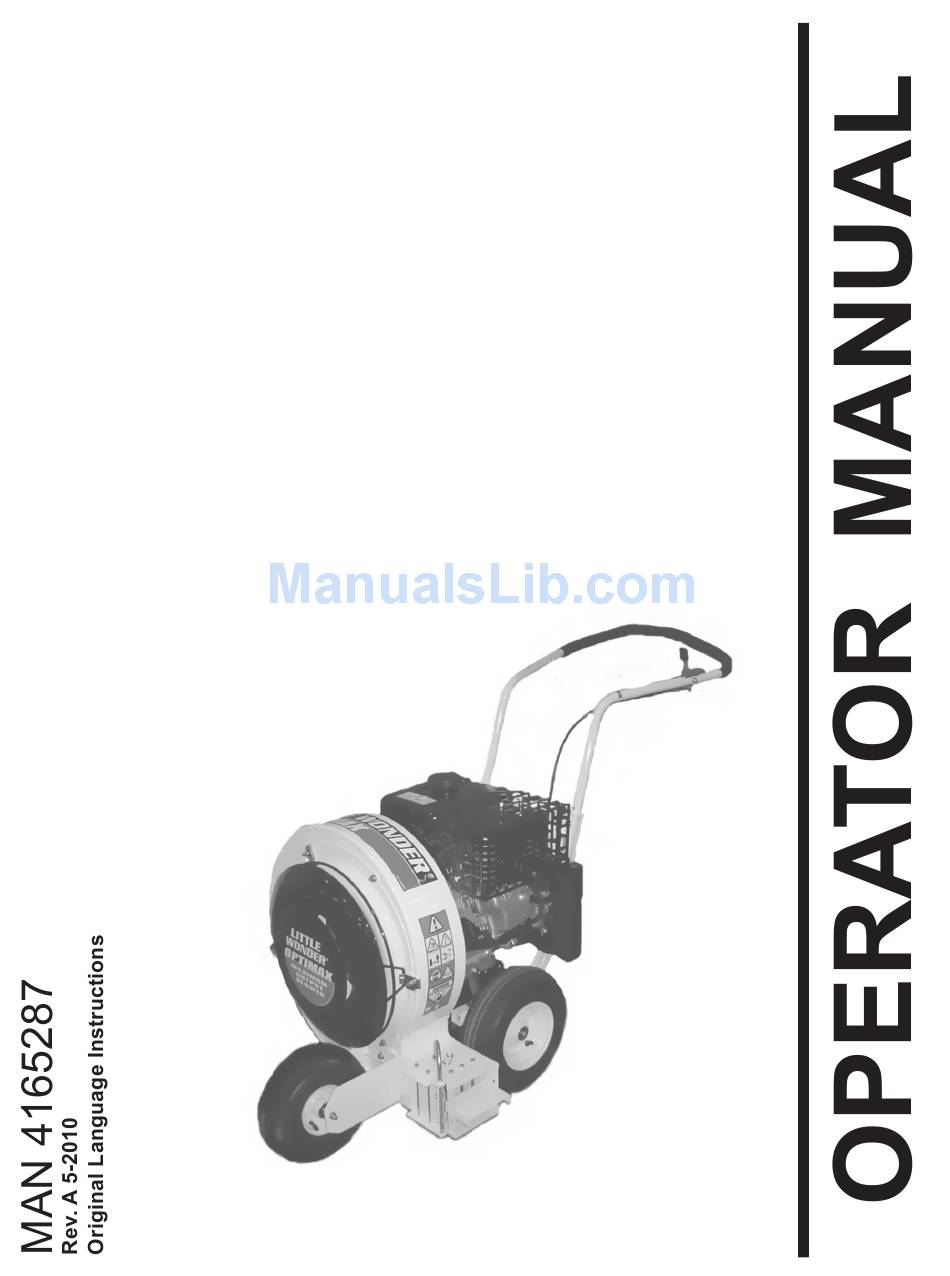

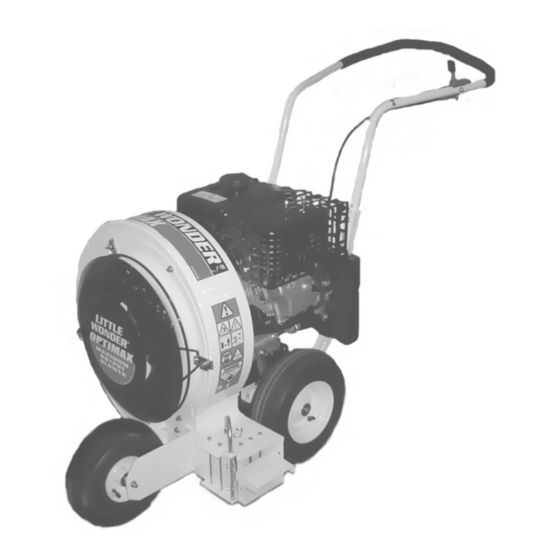

- Page 1 LITTLE WONDER BLOWER MODELS: LB601-00-59 6HP Subaru LB900-00-59 GX270 Honda LB901-00-59 9HP Subaru LB1401-00-59 14HP Subaru 9131-00-59 CX390 Honda Owners Manual and Safety Instructions for MAXIMUM OUTPUT BLOWER...
- Page 2 CALIFORNIA WARNING Proposition 65 Warning Diesel engine exhaust and some The engine exhaust from this product of its constituents are known to the contains chemicals known to the State State of California to cause cancer, of California to cause cancer, birth birth defects and other reproductive defects or other reproductive harm.
- Page 3 BLOWER IMPORTANT MESSAGE On behalf of everyone at Little Wonder, we would like to thank you for your purchase of a Little Wonder Gasoline Powered Optimax Blower. This professional blower was designed to the highest standards to ensure you many hours of uninterrupted service.
- Page 4 LITTLE SAFETY WONDER BLOWER This symbol means: NOTICE !!! ATTENTION! Unauthorized modifications may present extreme BECOME ALERT! safety hazards to operators and bystanders and could also result in product damage. Your safety and the safety of others is involved. Schiller-Pfeiffer, Inc. strongly warns against, rejects Signal word definitions and disclaims any modifications, add-on accessories or product alterations that are not designed,...
- Page 5 LITTLE SAFETY WONDER BLOWER MACHINE PREPARATION Operator preparation and training SITE PREPARATION AND CIRCUMSTANCES Read the Operation & Safety – Evaluate the terrain to determine how to safely Manual perform the job. Only use accessories and – If an operator or mechanic attachments approved by the manufacturer.
- Page 6 LITTLE WONDER BLOWER OPERATING SAFELY INTERRUPTING OPERATION Before leaving the operator's position: IN GENERAL - Park on level ground. – Use extra care when loading or unloading the - Shut off the engine. machine into a trailer or truck. Stop the engine, and wait until the fan stops –...
- Page 7 LITTLE WONDER BLOWER MAINTENANCE SAFETY When refueling or checking fuel level: - Stop the engine and allow to cool; In general - Do not smoke; Maintain machine according to manufacturer's - Refuel outdoors only; schedule and instructions for maximum safety - Use a funnel;...
- Page 8 LITTLE SAFETY WONDER BLOWER SAFETY DECALS An important part of the safety system incorporated in this blower is the warning label found on the blower. Replace this label if it is damaged or becomes illegible. Caution: Thrown objects. Keep bystanders away. Do not blow towards <...
- Page 9 LITTLE CONTROLS WONDER BLOWER (BLOWER SHOWN WITH SUBARU EX40 ENGINE. OTHER ENGINES ARE SIMILAR.) SWITCH (A) Move to the “OFF” position to stop the engine. Move to the “ON” position before starting engine. THROTTLE (B) Controls engine speed and the amount of air being blown.
-
Page 10: Before Starting The Engine
2. Replace drain plug, remove fill plug and fill with Moving the deflector to the upper hole allows for a new oil. Little Wonder recommends SAE 30 oil greater volume of air to be directed downward. whenever applicable. 3. Start and run engine for 30 seconds. Stop Moving the deflector to the lower hole allows for a engine. - Page 11 LITTLE STORAGE WONDER BLOWER STORAGE To prevent possible explosion or ignition of vaporized fuel, do not store equipment with fuel in tank or carburetor in an enclosure with open flame (for example, a furnace or water heater pilot). Before the equipment is put into storage for any period exceeding 30 days, the following steps should be completed.
-
Page 12: Ec Declaration Of Conformity
Station Road Industrial Estate Managing Director Wombwell, Barnsley, South Yorkshire, S73 OBS UK Date: May 15th, 2010 Declare that the machine described below: Make & Type:...........Little Wonder, Leaf blower Category:............Leaf blower, walk behind Series:.............LB601-00-59 Engine:............Subaru EX17 Speed:.............3600 rpm Net Installed Power.........5.5 hp (4.1 KW) Declare that the machine described below: Make &... - Page 13 Non Road Emissions..............2002/88/EC Sound: Sound levels were determined in accordance with Directive 2000/14/EC and standards EN/ISO 3744:1995 and ISO 11094:1991 Measured Sound power level:......Model LB601-00-59 …… 108 dB Model LB900-00-59 …… 111 dB Model LB901-00-59 …… 114 dB Model 9131-00-59 ..…… 115 dB Model LB1401-00-59 .…...
- Page 14 THIS WARRANTY shall only be effective if the enclosed Warranty/Registration card is properly filled out and returned to Little Wonder, Schiller Grounds Care, Inc. at time of purchase.
