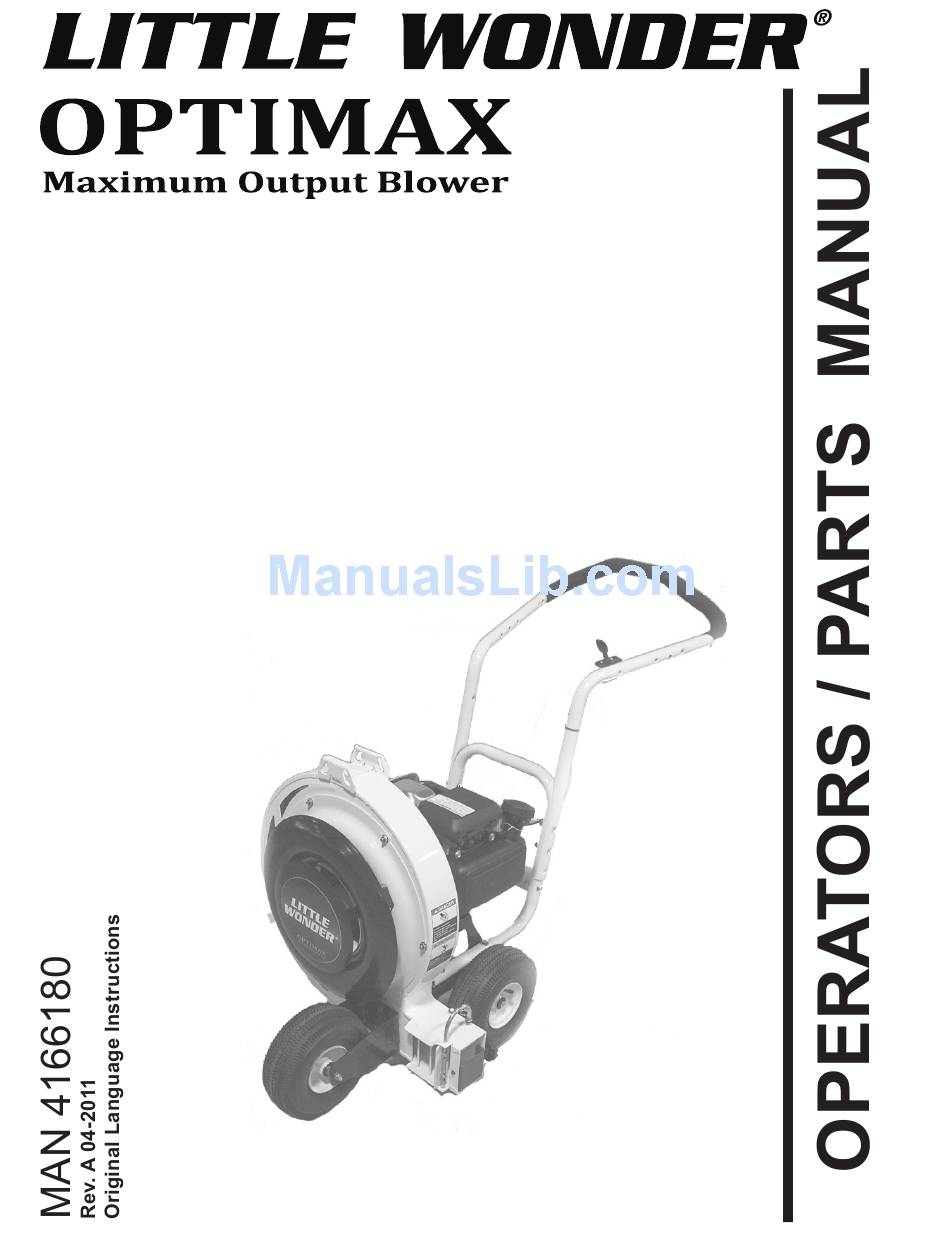

- Page 1 MODELS: 9160-02-01 GC160 HONDA 9170-03-01 EX170 SUBARU 91270-03-01 EX270 SUBARU CLASSIC Owners Manual and Safety Instructions for OPTIMAX BLOWER...
- Page 2 CALIFORNIA WARNING Proposition 65 Warning Diesel engine exhaust and some The engine exhaust from this product of its constituents are known to the contains chemicals known to the State State of California to cause cancer, of California to cause cancer, birth birth defects and other reproductive defects or other reproductive harm.
-
Page 3: Table Of Contents
BLOWER IMPORTANT MESSAGE On behalf of everyone at Little Wonder, we would like to thank you for your purchase of a Little Wonder Gasoline Powered Optimax Blower. This professional blower was designed to the highest standards to ensure you many hours of uninterrupted service. -
Page 4: Little Wonder
LITTLE SAFETY WONDER BLOWER This symbol means: NOTICE !!! ATTENTION! Unauthorized modifications may present extreme BECOME ALERT! safety hazards to operators and bystanders and could also result in product damage. Your safety and the safety of others is involved. Schiller Grounds Care, Inc. strongly warns against, Signal word definitions rejects and disclaims any modifications, add-on accessories or product alterations that are not... - Page 5 LITTLE SAFETY WONDER BLOWER MACHINE PREPARATION Operator preparation and training SITE PREPARATION AND CIRCUMSTANCES Read the Operation & Safety – Evaluate the terrain to determine how to safely Manual perform the job. Only use accessories and – If an operator or mechanic attachments approved by the manufacturer.
- Page 6 LITTLE WONDER BLOWER OPERATING SAFELY INTERRUPTING OPERATION IN GENERAL Before leaving the operator's position: – Use extra care when loading or unloading the - Park on level ground. machine into a trailer or truck. - Shut off the engine. – Do not run the engine in an enclosed area where Stop the engine, and wait until the fan stops dangerous carbon monoxide fumes can collect.
- Page 7 LITTLE WONDER BLOWER MAINTENANCE SAFETY When refueling or checking fuel level: - Stop the engine and allow to cool; In general - Do not smoke; Maintain machine according to manufacturer's - Refuel outdoors only; schedule and instructions for maximum safety - Use a funnel;...
- Page 8 LITTLE SAFETY WONDER BLOWER SAFETY DECALS An important part of the safety system incorporated in this blower are the warning labels found on the blower. Replace labels if damaged or illegible. WARNING ADVERTENCIA Antes de comenzar: -Lea y entienda el manual del operador y las etiquetas.
-
Page 9: Set Up Instructions
LITTLE SET-UP INSTRUCTIONS WONDER BLOWER SET-UP INSTRUCTIONS 1. Open box. Remove upper handle and cardboard insert. 2. Lay box down with blower housing up. Use lower handle to roll unit out of the box. 3. Locate hardware package. 4. Install upper handle to lower handle with (4) 3/8-16 x 1-3/4 carriage bolts and (4) 3/8-16 flanged nylon insert nuts from the hardware package. -
Page 10: Controls
LITTLE CONTROLS WONDER BLOWER (BLOWER SHOWN WITH HONDA GC160 ENGINE. OTHER ENGINES ARE SIMILAR.) SWITCH (A)-SUBARU ONLY (not shown) Move to the “OFF” position to stop the engine. Move to the “ON” position before starting engine. THROTTLE (B) Controls engine speed and the amount of air being blown. -
Page 11: Operation / Maintenance
LITTLE OPERATION / MAINTENANCE WONDER BLOWER BEFORE STARTING THE ENGINE 1. Read the Operator Manual and Engine Manual. MAINTENANCE INSTRUCTIONS Become familiar with the controls, how each func- tions, and what it operates. Stop engine and remove the spark plug wire before performing any maintenance. -
Page 12: Storage / Torque Specifications
LITTLE STORAGE / TORQUE SPECIFICATIONS WONDER BLOWER STORAGE details. To prevent possible explosion or ignition of vaporized To put the equipment into service after an extended fuel, do not store equipment with fuel in tank or period of storage. carburetor in an enclosure with open flame (for example, a furnace or water heater pilot). -
Page 13: Intake Guard Assy
LITTLE LITTLE INTAKE GUARD ASSY WONDER WONDER FIGURE 1 BLOWER BLOWER ITEM PART NO. DESCRIPTION 4166183 LABEL-INTAKE GUARD 4165218.7 ASSY-INTAKE GUARD 64123-54 BLT-HEX 5/16-18 X .75 64268-02 NUT-FL NYLON LOCK 5/16-18 64229-02 NUT 5/16-18 4165926.10 INTAKE PANEL-CENTER 64123-253 BLT-HEX 7/16-20 x 1-3/4 GR8 (USED ON 91270 MODELS) 64123-254 BLT-HEX 5/16-24 x 1-3/4 GR8... -
Page 14: Engine Assy
LITTLE ENGINE ASSY WONDER FIGURE 2 BLOWER ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 64229-02 LOCKNUT-NYL 5/16-18 64144-36 SNAP RING.625 64141-6 NUT 5/16-18 4164192-01 SPACER-PDR MTL 35X1.0X.25 910916 ENGINE 5HP HONDA 4164178 AXLE (USED ON 9160 MODEL) 4164591.10 HANDLE-LOWER 4165990 ENG-SUBARU EX27 64163-55... - Page 15 LITTLE LITTLE HOUSING ASSEMBLY WONDER WONDER FIGURE 3 BLOWER BLOWER ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 64141-6 NUT 5/16-18 910132 HANDLE-DEFLECTOR 4166329 S-HOUSING LG BLOWER 64229-03 NUT-NYLON LOCK 3/8-16 (USED ON 91270 MODEL) 64123-252 BLT-HEX 3/8-16 X 5-1/2 4166328 S-HOUSING SM BLOWER 4165178.7...
-
Page 16: Warranty
THIS WARRANTY shall only be effective if the enclosed Warranty/Registration card is properly filled out and returned to Little Wonder, Schiller Grounds Care, Inc. at time of purchase.
