5. Audio Connections

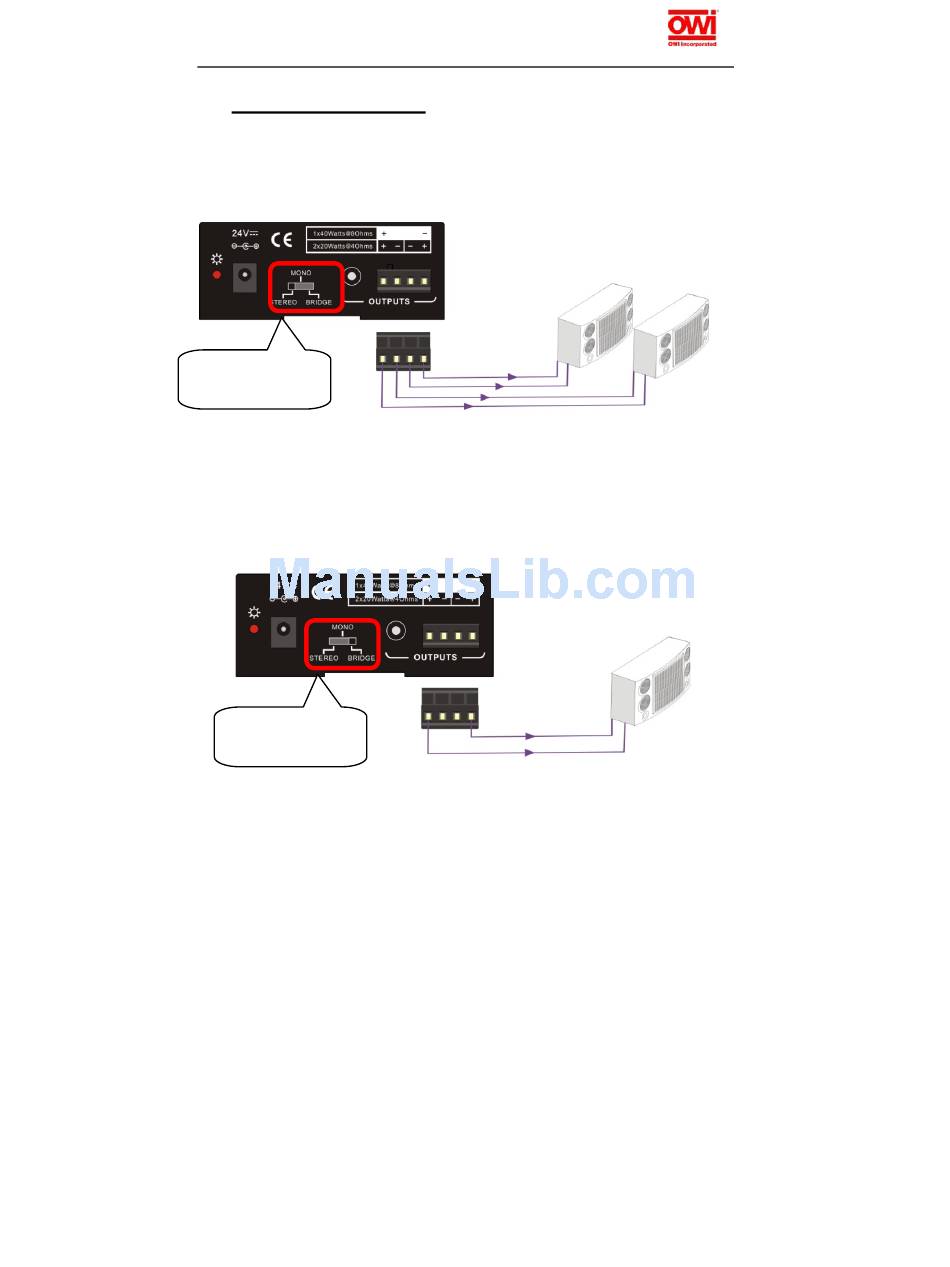

5.1 Default output: 2x20Watt@4Ω
The default output of amplifier is 2x20Watt@4Ω. So, the user can connect the amplifier
output in the regular way. As the picture below:
Switching to the
"STEREO"
Connecting the four pins, like this
5.2 Bridge connection: 1x40Watt@8Ω
The AMP-MA40 has the bridge connection, to double the output power at
1x40Watt@8Ω. It will sum up the input left channel and input right channel to be mono
output, and the power is up to 40Watts.
The bridge connection is:
Switching to the
"BRIDGE"
2x20Watt@4
1x40Watt@8
Connecting the two pins, like this
5
Ω
Ω
