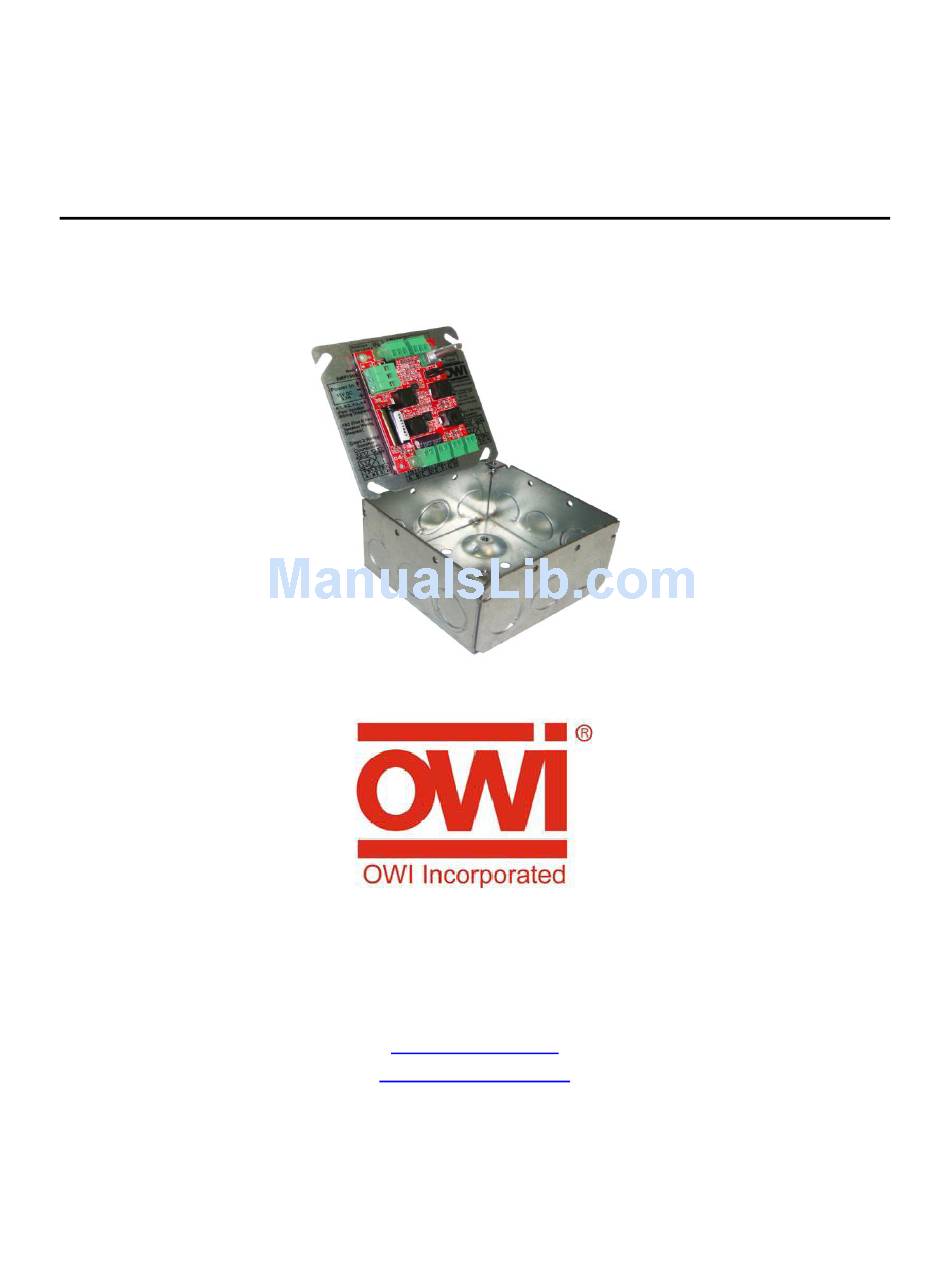

OWI User Manual: Model AMP1SGB Amplifier in a UL Rated Double Gangbox
OWI INC
USER MANUAL: Model: AMP1SGB
GANGBOX AMPLIFIER
Established 1978
OWI Incorporated
17141 Kingsview Ave. Carson CA 90746-1207 USA
Tel. 310-515-1900 Fax 310-515-1606
info@owi-inc.com
www.owi-inc.com
Technical Support 310-515-1900
OWI Model AMP1SGB Manual Page 1 of 12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for OWI AMP1SGB
Summary of Contents for OWI AMP1SGB
- Page 1 OWI User Manual: Model AMP1SGB Amplifier in a UL Rated Double Gangbox OWI INC USER MANUAL: Model: AMP1SGB GANGBOX AMPLIFIER Established 1978 OWI Incorporated 17141 Kingsview Ave. Carson CA 90746-1207 USA Tel. 310-515-1900 Fax 310-515-1606 info@owi-inc.com www.owi-inc.com Technical Support 310-515-1900...
-
Page 2: Proprietary, Copyright Notices
IT IS THE OWNERS’ RESPONSIBILITY TO ESTABLISH THE DATE OF PURCHASE BY ACCEPTABLE EVIDENCE AT TIME SERVICE IS SOUGHT. 2. Any unit, which in the judgment of OWI INC, is defective or develops defects under normal use will be replaced or repaired without cost within the warranty period. -
Page 3: Table Of Contents
OWI User Manual: Model AMP1SGB Amplifier in a UL Rated Double Gangbox Table of Contents Description Page Proprietary, Copyright Notices Unpacking and Inspection Warranty Information Return Shipping Instructions Table of Contents Important Safety Instructions 4 - 5 Introduction Specifications 7 - 8... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. All the safety and operation instructions should be read before this OWI product is operated. 2. Keep these instructions - The safety and operating instructions should be kept for future reference. - Page 5 18. OWI recommends that this apparatus be placed on a switched power outlet, one that switches both sides and has contact separation of at least 3 millimeters.
-
Page 6: Introduction
Introduction The OWI AMP1SGB is a self-powered amplifier. This unit can drive up to four speakers connected series parallel to have a net impedance of 8 ohms. With an included UL Listed, Level 5 (Energy Star), 15 volt, 3.5 ampere power supply, the amplifier can output 40 watts, or 10 watts per speaker in a four speaker hook-up. -
Page 7: Specifications
OWI User Manual: Model AMP1SGB Amplifier in a UL Rated Double Gangbox SPECIFICATIONS (MODEL AMP1SGB) 4”H x 4”W x 2.25”D Dimension of Amplifier Gangbox Assembly Weight of Amplifier Gangbox Assembly 1.3 pounds Power Supply Weight 0.45 pounds 4.7”H x 2”W x 1.2”D... - Page 8 OWI User Manual: Model AMP1SGB Amplifier in a UL Rated Double Gangbox DC Power, Short Circuit protected Over current protected Over voltage protected Over temperature protected 4.0 Ω (Two 8 Ω speakers in parallel) Minimum Load Impedance 20,000 Ω Minimum Input impedance, Priority in Minimum Input impedance, Bal.
-
Page 9: One Speaker Combination Wiring Diagram
OWI User Manual: Model AMP1SGB Amplifier in a UL Rated Double Gangbox OWI Model AMP1SGB Manual Page 9 of 12... -
Page 10: Two Speaker Combination Wiring Diagram
OWI User Manual: Model AMP1SGB Amplifier in a UL Rated Double Gangbox OWI Model AMP1SGB Manual Page 10 of 12... -
Page 11: Four Speaker Combination Wiring Diagram
OWI User Manual: Model AMP1SGB Amplifier in a UL Rated Double Gangbox OWI Model AMP1SGB Manual Page 11 of 12... -
Page 12: Warranty
OWI User Manual: Model AMP1SGB Amplifier in a UL Rated Double Gangbox OWI INCORPORATED Date Purchased: _____________________ 17141 Kingsview Ave. Model Number: ______________________ Carson, CA 90746-1207 USA Serial Number: ______________________ (Keep this part for your record) --------------------------------------------------------------------CUT AND MAIL----------------------------------------------------------------- OWI INCORPORATED...
