OWI INC

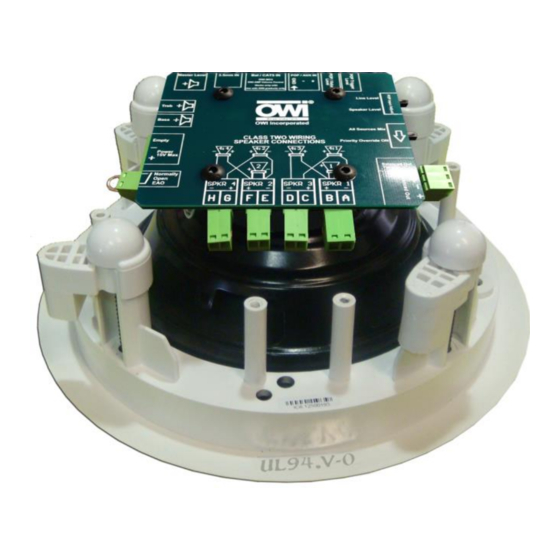

USER MANUAL: Model: AMP-HD2SIC5/6
Speaker Combination Models
AMP-HD2SIC51 / AMP-HD2SIC52 / AMP-HD2SIC54
AMP-HD2SIC51SVC / AMP-HD2SIC52SVC / AMP-HD2SIC54SVC
AMP-HD2SIC61 / AMP-HD2SIC62 / AMP-HD2SIC64
AMP-HD2SIC61SVC / AMP-HD2SIC62SVC / AMP-HD2SIC64SV
Established 1978
OWI Incorporated
17141 Kingsview Ave. Carson CA 90746-1207 USA
Tel. 310-515-1900 Fax 310-515-1606
info@owi-inc.com
www.owi-inc.com
Technical Support 310-515-1900
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for OWI AMP-HD2SIC51
Summary of Contents for OWI AMP-HD2SIC51
- Page 1 OWI INC USER MANUAL: Model: AMP-HD2SIC5/6 Speaker Combination Models AMP-HD2SIC51 / AMP-HD2SIC52 / AMP-HD2SIC54 AMP-HD2SIC51SVC / AMP-HD2SIC52SVC / AMP-HD2SIC54SVC AMP-HD2SIC61 / AMP-HD2SIC62 / AMP-HD2SIC64 AMP-HD2SIC61SVC / AMP-HD2SIC62SVC / AMP-HD2SIC64SV Established 1978 OWI Incorporated 17141 Kingsview Ave. Carson CA 90746-1207 USA Tel.
-
Page 2: Proprietary, Copyright Notices
IT IS THE OWNERS’ RESPONSIBILITY TO ESTABLISH THE DATE OF PURCHASE BY ACCEPTABLE EVIDENCE AT TIME SERVICE IS SOUGHT. 2. Any unit, which in the judgment of OWI INC, is defective or develops defects under normal use will be replaced or repaired without cost within the warranty period. -
Page 3: Table Of Contents
OWI User Manual: Model AMP-HD2SIC5 / AMP-HD2SIC6 Speaker Amplifier Table of Contents Description Page Proprietary, Copyright Notices Unpacking and Inspection Warranty Information Return Shipping Instructions Table of Contents Important Safety Instructions 4 - 5 Introduction Specifications 7 - 8 Illustration: Connection and Control... -
Page 4: Important Safety Instructions
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. - This OWI product should be situated so that its location or position does not interfere with its proper ventilation. For example, the component should not be situated on a bed, sofa, rug, or similar surface that may block any ventilation openings, or placed in a built-in installation such as a bookcase or cabinet that may impede the flow of air through ventilation openings. - Page 5 18. OWI recommends that this apparatus be placed on a switched power outlet, one that switches both sides and has contact separation of at least 3 millimeters.
-
Page 6: Introduction
Priority audio stops, the unit waits before returning to the Line In and Jack Line In audio input. Input # 3 Cat 5 input - Proprietary Cat 5 input for OWI Products only. Use only with OWI MC4. Future models will work with the OWI AMPSTVCW volume control. -
Page 7: Specifications
OWI User Manual: Model AMP-HD2SIC5 / AMP-HD2SIC6 Speaker Amplifier SPECIFICATIONS (MODEL AMP-HD2SIC5/6) Mechanical “UL rating is dependent upon use of the Backcan and Tile Bridge” SPECIFICATIONS AMP-HD2SIC5 AMP-HD2SIC6 Speaker Diameter 5.25 inches 6.5 inches Weight of Amplifier/Speaker 2.55 pounds 3.15 pounds... - Page 8 OWI User Manual: Model AMP-HD2SIC5 / AMP-HD2SIC6 Speaker Amplifier POWER SUPPLY PS15VDC35AL5 SPECIFICATIONS 100 to 240 VAC, 50-60 Hz, 1.4A Input Note: Be sure to use the correct polarity on the power input. Output 15 VDC, 3.5 amperes Wire gauge and length...
-
Page 9: Illustration: Connection And Control
OWI User Manual: Model AMP-HD2SIC5 / AMP-HD2SIC6 Speaker Amplifier Illustration: Connection and Control OWI INC. www.owi-inc.com... -
Page 10: Chained Self Amplified Speakers Wiring
OWI User Manual: Model AMP-HD2SIC5 / AMP-HD2SIC6 Speaker Amplifier AMP-HD TO ANOTHER AMP-HD SPEAKER WIRING SINGLE LINE DIAGRAM Chained Self Amplified Speakers Wiring OWI INC. www.owi-inc.com... -
Page 11: One, Two, Four Speaker Combination Wiring
OWI User Manual: Model AMP-HD2SIC5 / AMP-HD2SIC6 Speaker Amplifier One, Two, Four Speaker Combination Wiring OWI INC. www.owi-inc.com... -
Page 12: Input Connectors Wiring
OWI User Manual: Model AMP-HD2SIC5 / AMP-HD2SIC6 Speaker Amplifier INPUT CONNECTORS WIRING Note: Jack Line In is the same as STEREO LINE IN, immediately below. OWI INC. www.owi-inc.com... -
Page 13: Amp-Hd Wiring Diagram
OWI User Manual: Model AMP-HD2SIC5 / AMP-HD2SIC6 Speaker Amplifier OWI INC. www.owi-inc.com... -
Page 14: Volume Control Wiring Diagram
OWI User Manual: Model AMP-HD2SIC5 / AMP-HD2SIC6 Speaker Amplifier VOLUME CONTROL WIRING DIAGRAM OWI INC. www.owi-inc.com... -
Page 15: Installation
OWI speakers should be located above the primary listening area. Mounting your OWI speakers Determine the best area to mount your OWI speakers. It will be necessary to run your speaker wires to that location. This location must be free of obstructions, such as electrical conduits, HVAC ducts, or water lines. - Page 16 Turn the mounting tab 90° and push toward the grill. The grill will safely pop off. Be sure to position the four Mounting Tabs on your OWI speaker inward then insert the four (4) screws (supplied) from the front of the speaker into the screw opening.
- Page 17 OWI User Manual: Model AMP-HD2SIC5 / AMP-HD2SIC6 Speaker Amplifier OWI INC. www.owi-inc.com...
- Page 18 OWI User Manual: Model AMP-HD2SIC5 / AMP-HD2SIC6 Speaker Amplifier OWI INC. www.owi-inc.com...
-
Page 19: Warranty
However, we will pay the return shipping charges to any destination within the U.S.A. if the repairs are covered by the warranty. 3. Any unit which in the judgment of OWI Inc. is defective or develops defects under normal use will be replaced or repaired without cost within the warranty period. -
Page 20: Back Cover
OWI User Manual: Model AMP-HD2SIC5 / AMP-HD2SIC6 Speaker Amplifier Established 1978 OWI Incorporated 17141Kingsview Ave. Carson CA 90746-1207 USA Tel. 310-515-1900 Fax 310-515-1606 www.owi-inc.om 110916 OWI INC. www.owi-inc.com...
