USER MANUAL: Model: AMP-ER2TR6
Speaker Combination Models
AMP-ER2TR61 / AMP-ER2TR62 / AMP-ER2TR64
AMP-ER2TR61SVC / AMP-ER2TR62SVC / AMP-ER2TR64SVC
MULTI VOICE COIL WITH ER PAGING OVERRIDE
Established 1978
OWI Incorporated
17141 Kingsview Ave. Carson CA 90746-1207 USA
Tel. 310-515-1900 Fax 310-515-1606
info@owi-inc.com
www.owi-inc.com
Technical Support 310-515-1900
Advertisement
Table of Contents
Related Manuals for OWI AMP-ER2TR6
Summary of Contents for OWI AMP-ER2TR6

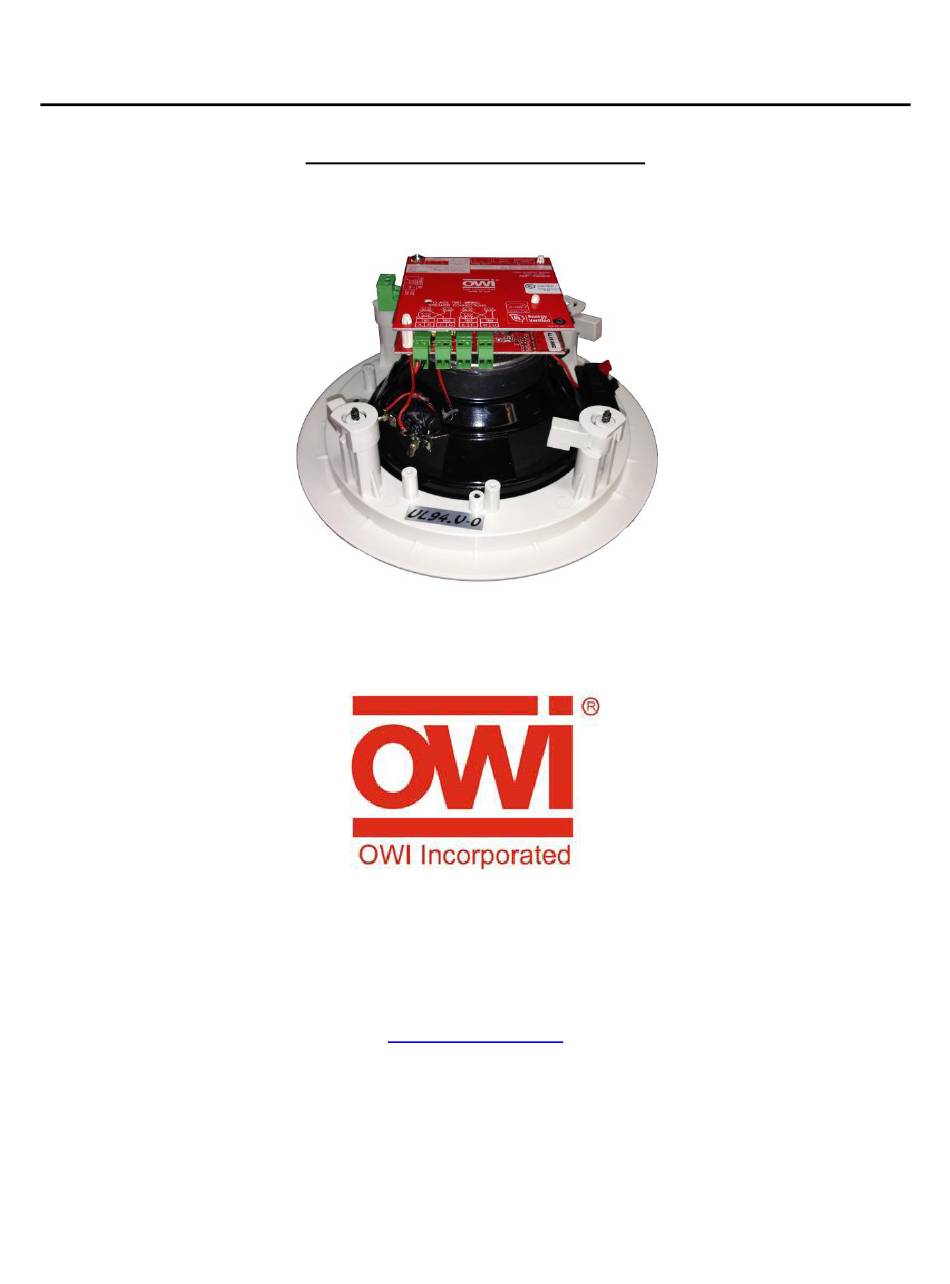

- Page 1 OWI INC USER MANUAL: Model: AMP-ER2TR6 Speaker Combination Models AMP-ER2TR61 / AMP-ER2TR62 / AMP-ER2TR64 AMP-ER2TR61SVC / AMP-ER2TR62SVC / AMP-ER2TR64SVC MULTI VOICE COIL WITH ER PAGING OVERRIDE Established 1978 OWI Incorporated 17141 Kingsview Ave. Carson CA 90746-1207 USA Tel. 310-515-1900 Fax 310-515-1606 info@owi-inc.com...
-
Page 2: Proprietary, Copyright Notices
IT IS THE OWNERS’ RESPONSIBILITY TO ESTABLISH THE DATE OF PURCHASE BY ACCEPTABLE EVIDENCE AT TIME SERVICE IS SOUGHT. 2. Any unit, which in the judgment of OWI INC, is defective or develops defects under normal use will be replaced or repaired without cost within the warranty period. -
Page 3: Table Of Contents
OWI User Manual: Model AMP-ER2TR6 Table of Contents Description Page Proprietary, Copyright Notices Unpacking and Inspection Warranty Information Return Shipping Instructions Table of Contents Important Safety Instructions 4 - 5 Introduction 7 – 9 Specifications Illustration: Connection and Control Chained Self Amplified Speakers Wiring... -
Page 4: Important Safety Instructions
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. - This OWI product should be situated so that its location or position does not interfere with its proper ventilation. For example, the component should not be situated on a bed, sofa, rug, or similar surface that may block any ventilation openings, or placed in a built-in installation such as a bookcase or cabinet that may impede the flow of air through ventilation openings. - Page 5 18. OWI recommends that this apparatus be placed on a switched power outlet, one that switches both sides and has contact separation of at least 3 millimeters.
-
Page 6: Introduction
OWI User Manual: Model AMP-ER2TR6 Introduction The OWI AMP-ER2TR6 is a multi voice coil, self powered speaker/amplifier. It is a two source/input speaker with ER paging override. This unit can drive up to four speakers connected series parallel to have a net impedance of 8 ohms. With an included UL Listed, Level 5 (Energy Star), 15 volt, 3.5 ampere power supply, the amplifier can output 40 watts, or 10 watts per speaker... - Page 7 OWI User Manual: Model AMP-ER2TR6 Energy Star Sleep Mode If no audio is present on any input of the power amplifier, the amplifier goes into a low power “shutdown, or sleep mode” within 30 minutes. During sleep mode, power consumption of the power supply and the amplifier is less than one (1) watt.
-
Page 8: Specifications
OWI User Manual: Model AMP-ER2TR6 SPECIFICATIONS (MODEL AMP-ER2TR6) Mechanical “UL rating is dependent upon use of the Backcan and Tile Bridge” AMP-ER2TR6 Speaker Diameter 6.5 inches Weight of Amplifier/Speaker Assembly 3.15 pounds Height of Amplifier/Speaker Assembly 4.5 inches Backcan “Suitable for use in air handling UL Listed Enclosure spaces”... - Page 9 Φ8.94*3.74 OVERALL DIMENSIONS (Diameter X Height): Inches Φ7.68 CUT OUT SIZE (Diameter): Inches WEIGHT: lbs. 2.28 MOUNTING HARDWARE: Mounting Clamps Optional OWI 2570TR transformer available – 25 volts / 70 volts / 100 volts. End of Specifications OWI INC. www.owi-inc.com...
-
Page 10: Illustration: Connection And Control
OWI User Manual: Model AMP-ER2TR6 Illustration: Connection and Control AMP-ER2TR6 AMP-ER2TR6 With 2570TR transformer OWI INC. www.owi-inc.com... -
Page 11: Chained Self Amplified Speakers Wiring
OWI User Manual: Model AMP-ER2TR6 AMP-ER2TR6 TO ANOTHER AMP-ER2TR6 SPEAKER WIRING SINGLE LINE DIAGRAM Chained Self Amplified Speakers Wiring One, Two, Four Speaker Combination Wiring OWI INC. www.owi-inc.com... - Page 12 OWI User Manual: Model AMP-ER2TR6 OWI INC. www.owi-inc.com...
-
Page 13: Input Connectors Wiring
OWI User Manual: Model AMP-ER2TR6 INPUT CONNECTORS WIRING Note: Jack Line In is the same as STEREO LINE IN, immediately below. OWI INC. www.owi-inc.com... -
Page 14: Volume Control Wiring Diagram
OWI User Manual: Model AMP-ER2TR6 VOLUME CONTROL WIRING DIAGRAM OWI INC. www.owi-inc.com... -
Page 15: Installation
Be sure the mounting surface is between 3/8 and 1 ¼ inches thick and that there is at least a 3 inch clearance behind the mounting surface (5 inch if using an OWI backcan). Make sure that no objects block the back of the speaker. - Page 16 Turn the mounting tab 90° and push toward the grill. The grill will safely pop off. Be sure to position the four Mounting Tabs on your OWI speaker inward then insert the four (4) screws (supplied) from the front of the speaker into the screw opening.
- Page 17 OWI User Manual: Model AMP-ER2TR6 OWI INC. www.owi-inc.com...
- Page 18 OWI User Manual: Model AMP-ER2TR6 OWI INC. www.owi-inc.com...
-
Page 19: Warranty
However, we will pay the return shipping charges to any destination within the U.S.A. if the repairs are covered by the warranty. 3. Any unit which in the judgment of OWI Inc. is defective or develops defects under normal use will be replaced or repaired without cost within the warranty period. -
Page 20: Back Cover
OWI User Manual: Model AMP-ER2TR6 Established 1978 OWI Incorporated 17141Kingsview Ave. Carson CA 90746-1207 USA Tel. 310-515-1900 Fax 310-515-1606 www.owi-inc.om 082516 OWI INC. www.owi-inc.com...
