- Page 1 OWI INC USER MANUAL: Model: 2X2AMP-BT2S61 Speaker Combination Models 2X2AMP-BT2S61 / 2X2AMP-BT2S62 / 2X2AMP-BT2S64 2X2AMP-BT2S61SVC / 2X2AMP-BT2S62SVC / 2X2AMP-BT2S64SVC Established 1978 OWI Incorporated 17141 Kingsview Ave. Carson CA 90746-1207 USA Tel. 310-515-1900 Fax 310-515-1606 info@owi-inc.com www.owi-inc.com Technical Support 310-515-1900...
-
Page 2: Proprietary, Copyright Notices
IT IS THE OWNERS’ RESPONSIBILITY TO ESTABLISH THE DATE OF PURCHASE BY ACCEPTABLE EVIDENCE AT TIME SERVICE IS SOUGHT. 2. Any unit, which in the judgment of OWI INC, is defective or develops defects under normal use will be replaced or repaired without cost within the warranty period. -
Page 3: Table Of Contents
OWI User Manual: Model 2X2AMP-BT2S61 Speaker Amplifier Table of Contents Description Page Proprietary, Copyright Notices Unpacking and Inspection Warranty Information Return Shipping Instructions Table of Contents Important Safety Instructions 4 - 5 Introduction Specifications 7 - 8 Illustration: Connection and Control... -
Page 4: Important Safety Instructions
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. - This OWI product should be situated so that its location or position does not interfere with its proper ventilation. For example, the component should not be situated on a bed, sofa, rug, or similar surface that may block any ventilation openings, or placed in a built-in installation such as a bookcase or cabinet that may impede the flow of air through ventilation openings. - Page 5 18. OWI recommends that this apparatus be placed on a switched power outlet, one that switches both sides and has contact separation of at least 3 millimeters.
-
Page 6: Introduction

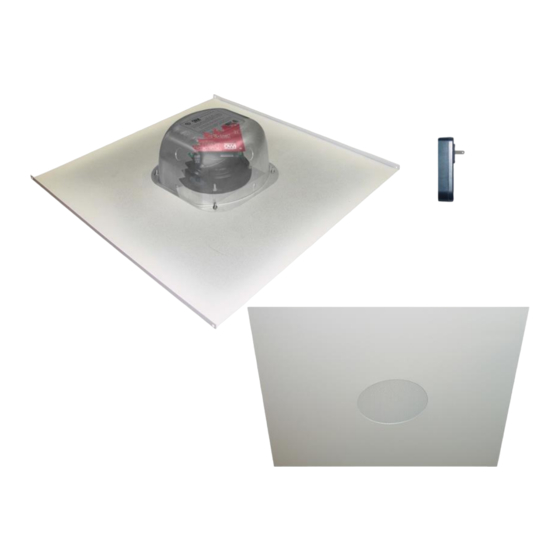

OWI User Manual: Model 2X2AMP-BT2S61 Speaker Amplifier Introduction The OWI 2X2AMP-BT2S61 is a self powered speaker/amplifier on a 2X2 Tile with backcan enclosure. This unit can drive up to four speakers connected series parallel to have a net impedance of 8 ohms. With an included UL Listed, Level 5 (Energy Star), 15 volt, 3.5 ampere power supply, the amplifier can output 40 watts, or 10 watts per speaker in a four speaker hook-up. - Page 7 OWI User Manual: Model 2X2AMP-BT2S61 Speaker Amplifier SPECIFICATIONS (MODEL 2X2AMP-BT2S61) BLUETOOTH SPECIFICATIONS 2X2AMP-BT2S61 Certified SIG Bluetooth Version 3.0 Frequency Range 2.40 – 2.48 MHz Supports A2DP, AVRCP, HFP/HSP and SPP Password Protected ELECTRICAL AMPLIFIER 2X2AMP-BT2S61 SPECIFICATIONS Input voltage, nominal (25 watts) 15 volts DC Input current, operating (15VDC) 1.667 amperes peak...
-
Page 8: Specifications
OWI User Manual: Model 2X2AMP-BT2S61 Speaker Amplifier POWER SUPPLY PS15VDC35AL5 SPECIFICATIONS 100 to 240 VAC, 50-60 Hz, 1.4A Input Note: Be sure to use the correct polarity on the power input. Output 15 VDC, 3.5 amperes Wire gauge and length... -
Page 9: Illustration: Connection And Control
OWI User Manual: Model 2X2AMP-BT2S61 Speaker Amplifier Illustration: Connection and Control OWI INC. www.owi-inc.com... -
Page 10: Chained Self Amplified Speakers Wiring
OWI User Manual: Model 2X2AMP-BT2S61 Speaker Amplifier 2X2AMP-BT2S61 TO ANOTHER 2X2AMP-BT2S61 SPEAKER WIRING SINGLE LINE DIAGRAM Chained Self Amplified Speakers Wiring OWI INC. www.owi-inc.com... -
Page 11: Bluetooth Operation
Open the device Bluetooth manager and review its list of discoverable Bluetooth devices. The speaker amp will appear as OWI-XXXX where XXXX is the last 4 digits of the speaker amp MAC address. Note: The speaker amp MAC address is identified on a label located on the speaker amp board. -
Page 12: One, Two, Four Speaker Combination Wiring
OWI User Manual: Model 2X2AMP-BT2S61 Speaker Amplifier One, Two, Four Speaker Combination Wiring OWI INC. www.owi-inc.com... -
Page 13: Input Connectors Wiring
OWI User Manual: Model 2X2AMP-BT2S61 Speaker Amplifier INPUT CONNECTORS WIRING Note: Jack Line In is the same as STEREO LINE IN, immediately below. OWI INC. www.owi-inc.com... -
Page 14: Volume Control Wiring Diagram
OWI User Manual: Model 2X2AMP-BT2S61 Speaker Amplifier VOLUME CONTROL WIRING DIAGRAM OWI INC. www.owi-inc.com... -
Page 15: Installation
The 2X2AMP-BT2S61 Speaker Combination carton includes items 1 to 3 above plus the following: 1. 8 ohms in-ceiling speaker on a 2X2 Tile and backcan Model 2X2IC6NA *Note: Quantity of 8 Ohms Ceiling speakers ON A 2x2 tile depends on the SKU of the 2X2AMP-BT2S61 Combination Program. Speaker Placement Before installing your OWI speakers, consider the placement carefully, taking into effect the location of electrical, plumbing and other fixtures. -
Page 16: Warranty
However, we will pay the return shipping charges to any destination within the U.S.A. if the repairs are covered by the warranty. 3. Any unit which in the judgment of OWI Inc. is defective or develops defects under normal use will be replaced or repaired without cost within the warranty period. -
Page 17: Back Cover
OWI User Manual: Model 2X2AMP-BT2S61 Speaker Amplifier Established 1978 OWI Incorporated 17141Kingsview Ave. Carson CA 90746-1207 USA Tel. 310-515-1900 Fax 310-515-1606 www.owi-inc.com 082516 OWI INC. www.owi-inc.com...
