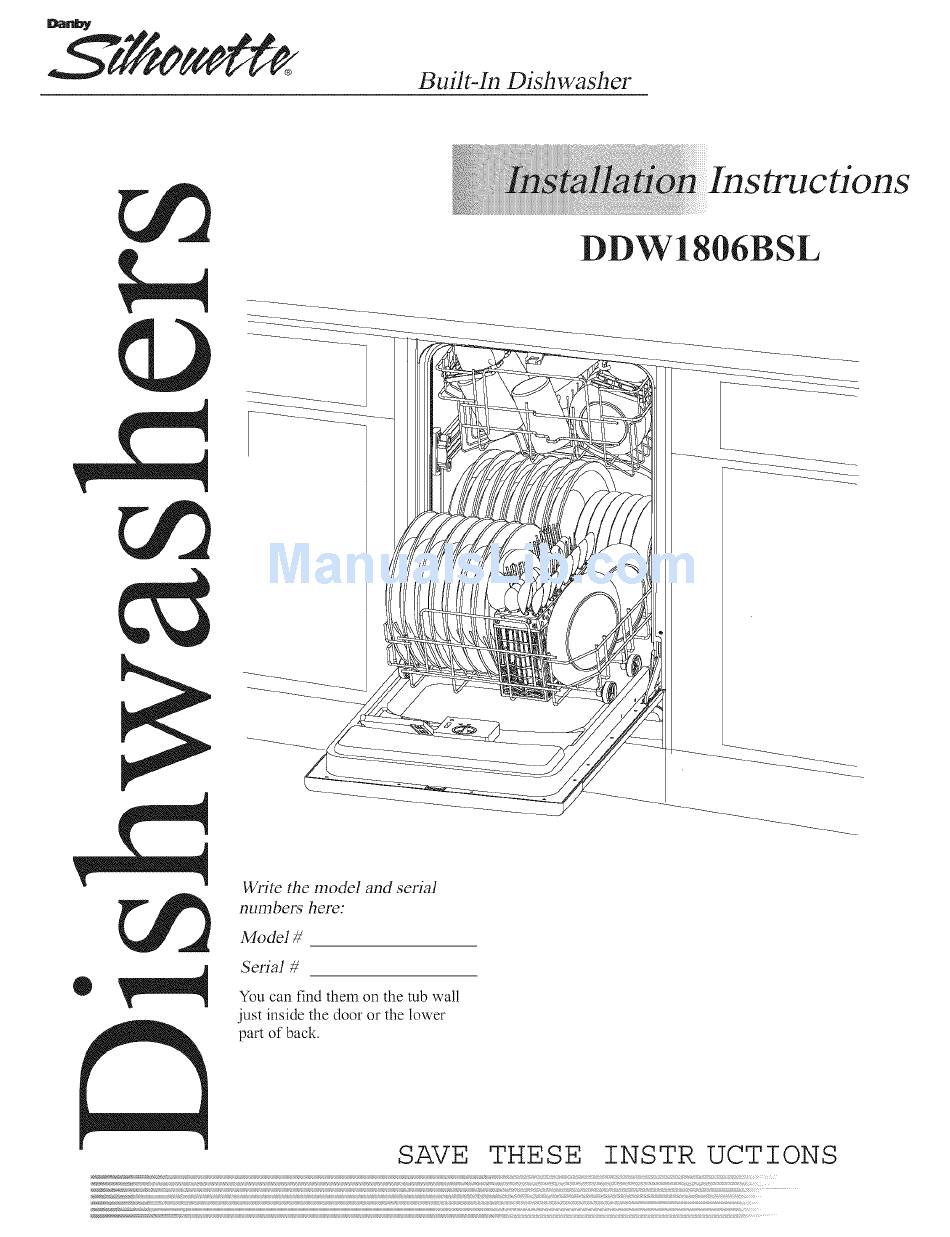

- Page 1 Built-In Dishwasher ;trucnons DDW1806BSL Write the model and serial munbers here: Model Serial You can find them on the tub wall just inside the door or the lower part of back. SAVE THESE INSTRUCTIONS...
- Page 2 BEFORE INSTALLATION CONTENTS Read these instructions cmnpletely and carefully. Materials You Will Need ......Tools ..........Electric Shock Hazard Unit Dimensions ........Disconnect electrical power at the fuse box or circuit breaker box before beginning installation. Failure to follow this warning could result...
-
Page 3: Tools
Installation Preparation MATERIALS WILL NEED (INCLUDED) Waste - 2 #8 x 5/8" flat head wood screws to secure dishwasher AirGap to underside of countertop. - Strain Relief for electrical connections. MATERIALS WILL NEED (NOT INCLUDED) lland Thread - 3/8" Male (N.P.T.) 90 °... -
Page 4: Unit Dimensions
Installation Preparation UNIT DIMENSIONS TYPE OF DRAIN CONNECTION: The dishwasher comes with a factory installed drain hose. Drill 2" diameter hole to allow the drain hose to pass through the cabinet and connect to drain. (under sink) Review the different ways of connecting the dishwasher to the... - Page 5 Installation Preparation PREPARE ELECTRICAL WIRING ELECTRICAL REQUIREMENT This dishwasher operates on a 120 volt, 60 llz electrical suppl'_,. YOU must provide a separate (individual) circuit with a fuse circuit breaker rated for at least 15 amps, not more than 20 amps. Your dishwasher circuit...
-
Page 6: Remove Kick-Plate
Installation Instructions Kick-Plate Scro_ REMOVE KICK-PLATE Figure 11 Before you can make the water/electrical connections to the dishwasher, tile " " kick-plate" must first be removed. To remove the kick-plate, lay the dishwasher on it's back. Remove screws (2 on each side) from the underside... - Page 7 Installation Instructions PREPARE DRAIN CONNECTION: dishwasher comes with a factory installed drain hose. Drill2 d_ameter hole to atlow the drain hose to pass through cabinet and connect to drain. (under sink) Revie_ the different ways of connecting the dishwasher to the drain system, (See Fig's...
-
Page 8: Level The Dishwasher
Installation Instructions LEVEL DISHWASHER IMPORTANT-- Dishwasher must be level for proper dish rack operation and wash performance. * Place level on door and raek track inside the tub as shown to check that the dishwasher is level. * Level the dishwasher by adjusting the four leveling legs. - Page 9 Installation Instructions CONNECT DRAIN LINE FOLLOW ALL LOCAL CODES AND ORDINANCES. lfalonger drain hose is required, add up to 42 ° of length for a total ofl0 ft. length to the factory installed hose. Use 5/8" or 7/8" inside diameter hose and a coupler to connect the two hose ends.
-
Page 10: Electrical Connections
Installation Instructions ELECTRICAL CONNECTIONS: PRE-TEST CHECK LIST WARNING: Make sure electrical power has been Review this list after installing your dishwasher to avoid disconnected at fuse box or circuit breaker box before charges J_r a service call that is not covered by your making electrical... - Page 11 Installation Instructions SLIDE DISHWASHER INTO CABINET: To avoid damage, do not push against front door panel with your knee when sliding dishwasher in|o cabinel. Slide the dishwasher into the cabinet by (slowly) pushing the unit from side to side (See Fig. 15) As the dishwasher is pushed back, carefully...
