Summary of Contents for Danby Designer DDW1802W

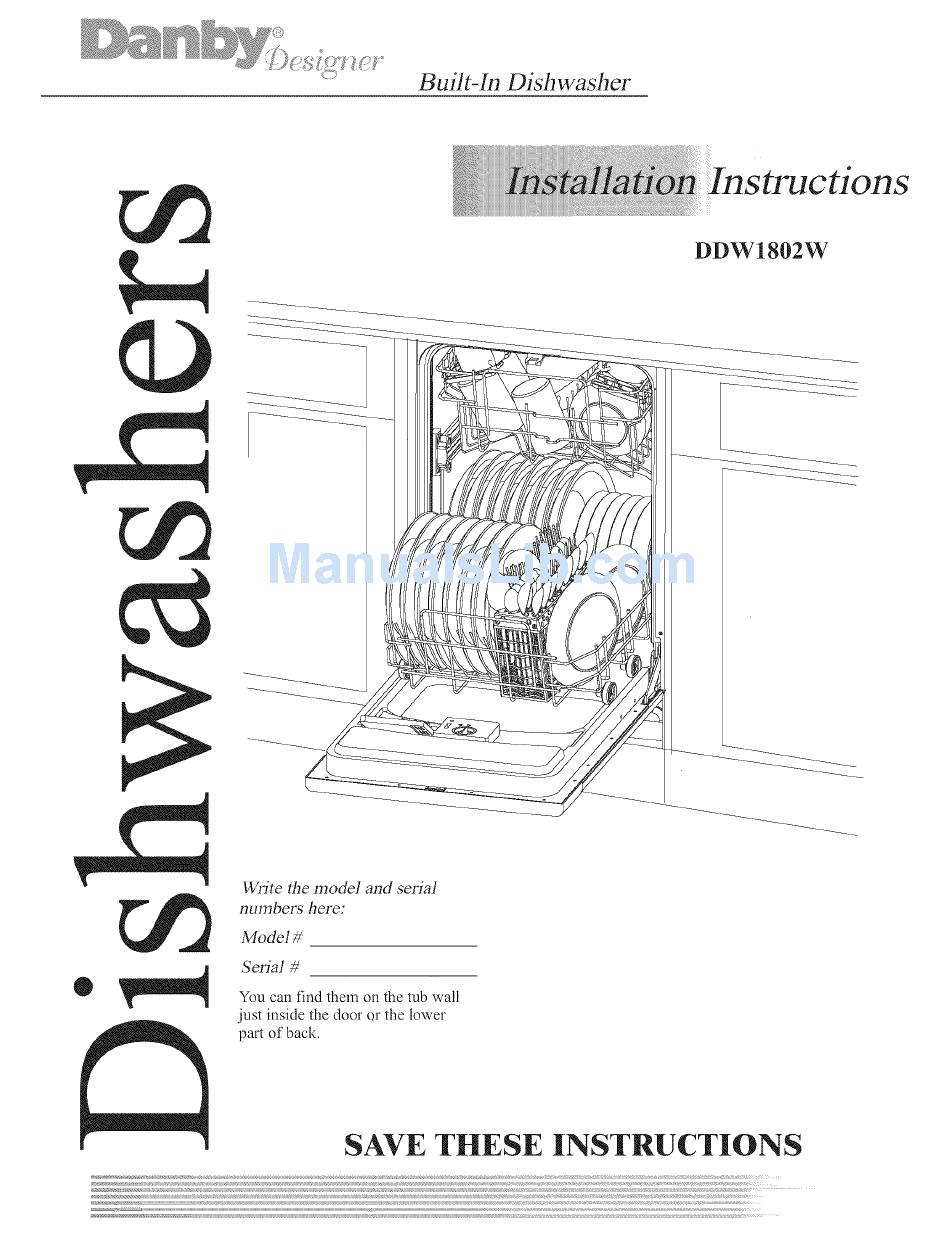

- Page 1 Built-in Dishwasher Instructions DDW1802W Write the model and serial numbers here: Model # Serial # You can find them on the tub wall just inside the door or the lower part of back. SAVE THESE INSTRUCTIONS...
- Page 2 Begin-Examine the dishwasher carefully, if the product is damaged, you should immediately Replace Kick-Plate ........contact one of the following: Literature ........* Danby Product Ltd. Customer Service Department @ 1-800-26-DANBY * Danby authorized service depot. (see authorized service depot...
- Page 3 Installation Preparation MATERIALS WILL NEED (INCLUDED) Waste " 2 #8 x 5/8" flat head wood screws to secure dishwasher AirGap to underside of countertop. - Strain Relief for electrical connections. MATERIALS WILL NEED (NOT INCLUDED) liand Thread .3/8" Male (N.P.T.) 90"...
- Page 4 Installation Preparation UNIT DIMENSIONS TYPE OF DRAIN CONNECTION: dishwasher comes with a factory installed drain hose. Drill 2" diameter hole to allow the drain hose to pass through cabinet connect to drain. (under sink) Review the different ways of connecting the dishwasher to the drain...
- Page 5 Installation Preparation PREPARE ELECTRICAL WIRING ELECTRICAL REQUIREMENT This dishwasher operates on a 120 volt, 60 llz electrical supply. You must provide a separate (individual) circuit with a fuse or circuit breaker rated for at least 15 amps, hut not more than 20 amps.
- Page 6 Installation Instructions REMOVE KICK-PLATE Figure Before you can make the water/electrical connections to the dishwasher, the "kick-plate" must first be removed. To remove the kick-plate, lay the dishwasher on it's hack. Remove screws (2 oil each side) from the underside of the kick-plate.
- Page 7 Installation Instructions PREPARE DRAIN CONNECTION: The dish_asher comes with a factory inslalled drain hose. Drill 2" diameter hole to allow the drain hose to pass through cabinet and connect to drain. (under sink) Review the different ways of connecting the dishwasher to the drain s)stem,...
- Page 8 Installation Instructions LEVEL DISHWASHER IMPORTANT-- Dishwasher must be level for proper dish rack operation and wash performance. * Place level on door and racktrackinside the tub as shown to check that the dishwasher is level. * Level the dishwasher by adjusting the four leveling legs.
- Page 9 Installation Instructions CONNECT DRAIN LINE FOLLOW ALL LOCAL CODES AND ORDINANCES. lfalonger drain hose is required, up to 42"of length for a total ofl0 ft. length to the factory installed hose. Use 5/8" or 7/8" inside diameter hose and a coupler to connect the two hose ends.
- Page 10 Installation Instructions ELECTRICAL CONNECTIONS: PRE-TEST CHECK LIST WARNING: Make sure electrical power has been Review this list after installing your dishwasher to avoid disconnected at fuse box or circuit breaker box before charges Jor a service call that is not covered by your making electrical...
