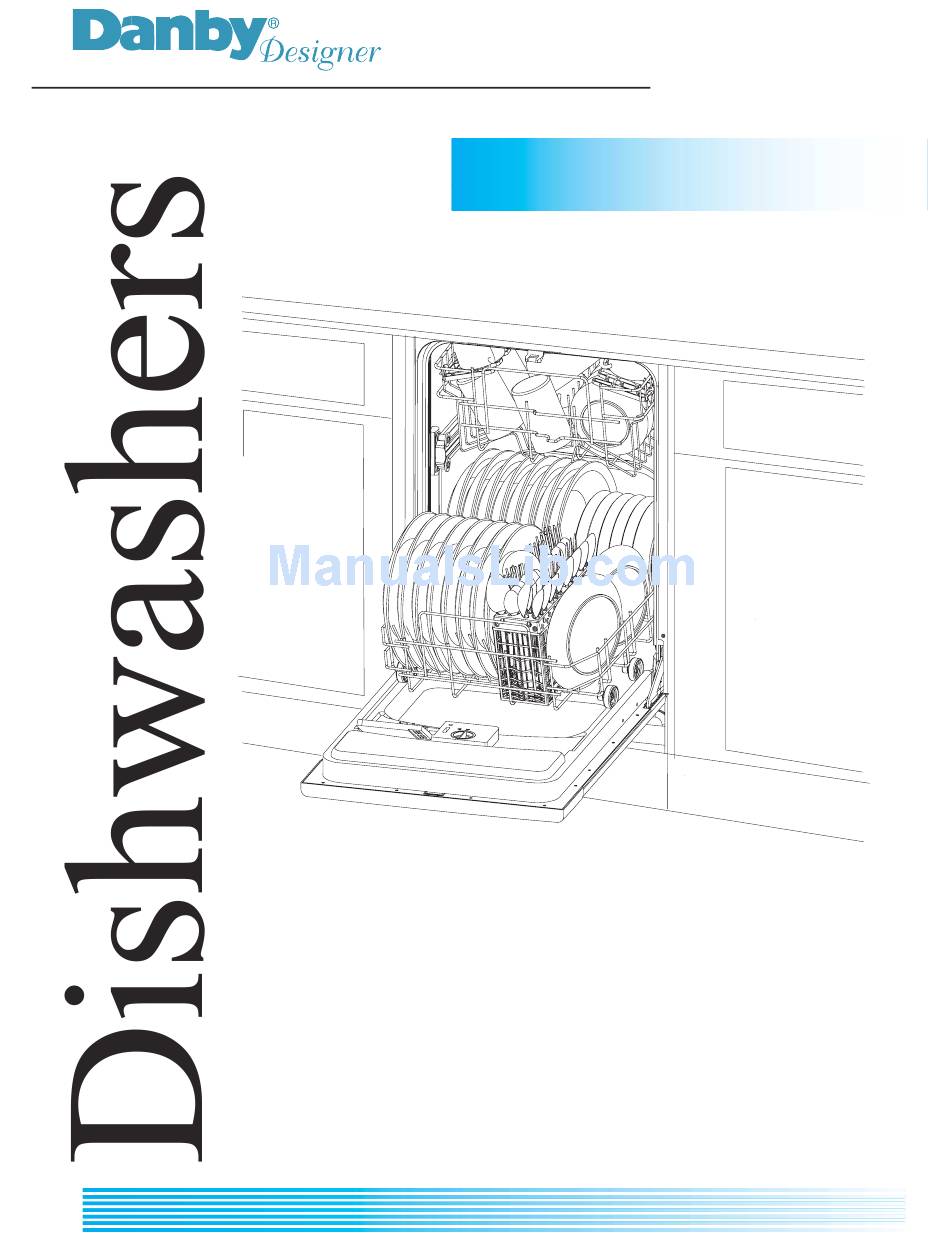

Page 1: Installation Instructions
Built-In Dishwasher Installation Instructions DDW1802W Write the model and serial numbers here: Model # __________________ Serial # __________________ You can find them on the tub wall just inside the door or the lower part of back. SAVE THESE INSTRUCTIONS... -
Page 2: Table Of Contents
BEFORE INSTALLATION BEFORE INSTALLATION CONTENTS Read these instructions completely and carefully. Material You Will Need ......1 Tools . -
Page 3: Material You Will Need
Installation Preparation MATERIALS YOU WILL NEED (INCLUDED) Waste Tee • 2 #8 x 5/8” flat head wood screws to secure dishwasher Wood Screws Air Gap to underside of countertop. • Strain Relief for electrical connections. MATERIALS YOU WILL NEED (NOT INCLUDED) Hand Thread •... -
Page 4: Unit Dimensions
Installation Preparation UNIT DIMENSIONS TYPE OF DRAIN CONNECTION: 18" 23" DEPTH: 23"(580mm) 33 ~35 " " WIDTH: 18"(450mm) HEIGHT: 33"~35" (840~890mm) A) air gap with waste tee Figure 1 PREPARE THE LOCATION For ease of installation, the dishwasher should be installed as close as possible to the kitchen sink (plumbing) to facilitate incoming water and drain supply lines. -
Page 5: Prepare Electrical Wiring
Installation Preparation PREPARE ELECTRICAL WIRING WARNING! FOR PERSONAL SAFETY: Disconnect electrical power at the fuse box or circuit breaker before beginning installation. Do not use extension cords or (plug) adapters with this appliance. Such can result in fire, electrical shock or other personal injury. Failure to follow these instructions could result in serious injury or death. -
Page 6: Prepare Water Line
Installation Instructions Kick-Plate Screws REMOVE KICK-PLATE Figure 11 Before you can make the water/electrical connections to the dishwasher, the "kick-plate" must first be removed. To remove the kick-plate, lay the dishwasher on it's back. Remove 4 screws (2 on each side) from the underside of the kick-plate. (See Fig.11) It is not necessary to reinstall these screws once removed, as the kick-plate simply snaps into position when reinstalled. -
Page 7: Install Power Cord
Installation Instructions PREPARE DRAIN CONNECTION: The dishwasher comes with a factory installed drain hose. Drill 2” diameter hole to allow the drain hose to pass through the cabinet and connect to drain. (under sink) Review the different ways of connecting the dishwasher to the drain system, (See Fig’s 4, 5, 6, 7) and choose a method that best suits your (application) needs. -
Page 8: Level Dishwasher, Secure To Cabinet
Installation Instructions LEVEL DISHWASHER IMPORTANT-- Dishwasher must be level for proper dish rack operation and wash performance. * Place level on door and rack track inside the tub as shown to check that the dishwasher is level. * Level the dishwasher by adjusting the four leveling legs. Check Level Front... -
Page 9: Connect Drain Hose
Installation Instructions CONNECT DRAIN LINE FOLLOW ALL LOCAL CODES AND ORDINANCES. If a longer drain hose is required, add up to 42" of length for a total of 10 ft. length to the factory installed hose. Use 5/8" or 7/8" inside diameter hose and a coupler to connect the two hose ends. Secure the connection with hose clamps. -
Page 10: Connect Power Supply
Installation Instructions ELECTRICAL CONNECTIONS: PRE-TEST CHECK LIST WARNING: Make sure electrical power has been WARNING: Make sure electrical power has been Review this list after installing your dishwasher to avoid disconnected at fuse box or circuit breaker box before disconnected at fuse box or circuit breaker box before charges for a service call that is not covered by your making electrical connections. -
Page 11: Dishwasher Wet Test
Installation Instructions SLIDE DISHWASHER INTO CABINET: To avoid damage, do not push against the front door panel with your knee when sliding the dishwasher into the cabinet. Slide the dishwasher into the cabinet by (slowly) pushing the unit from side to side (See Fig.
