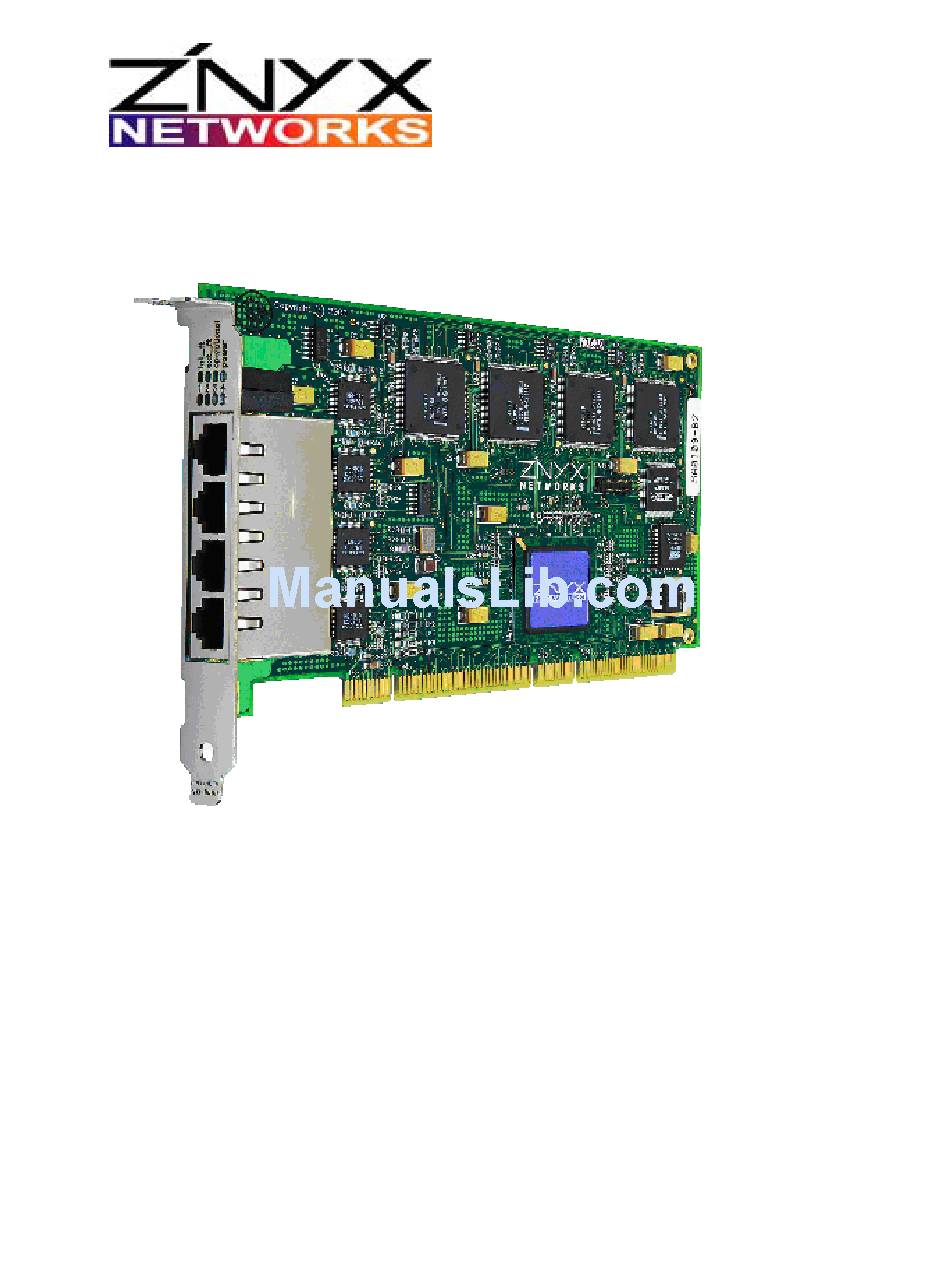

- Page 1 ZX 374 (pictured) ZX370 S ERIES UIDE Fast Ethernet Adapter for PCI Systems (PCI)
- Page 2 ZNYX Networks may have patents, pending patent applications, trademarks, copyrights or other intellectual property rights covered in the subject matter of this document. By furnishing this document, ZNYX Networks does not license nor waive its license to those intellectual property rights except as expressly provided in a written license agreement from ZNYX Networks.
-
Page 3: Getting Started
64 or 32 bit PCI slot Getting Started You will find the ZX370 series are simple to install and configure. This document will help you complete the hardware installation process. Troubleshooting and diagnostic sections are also included. There are two basic steps required before you can begin using the adapter: Step 1. -
Page 4: About This Manual
About this Manual This manual includes the installation, troubleshooting, and reference data for the ZX370 Series Ethernet adapter. See the ZNYX Networks data sheet for product specifications. All documentation for ZNYX Networks products, including data sheets, release notes and user guides are available for downloading from the ZNYX Networks web site (http://www.znyx.com). -
Page 5: Hardware Installation
HARDWARE INSTALLATION You can easily install your ZX370 Series Adapter into an open PCI slot in your system. Refer to your system documentation if necessary. Installing the ZX370 Series Ethernet Adapter This procedure includes the steps required for installing the adapter. -
Page 6: Troubleshooting
TROUBLESHOOTING All ZNYX Networks adapters support Plug-and-Play functionality. If you have a Plug-and- Play system, your card will configure itself automatically. If your operating system does not discover the board, you can verify that your adapter is property configured by running the ZNYX DOS-based diagnostics program. -
Page 7: Troubleshooting Tips
Check that the board is securely seated in the slot. Refer to the operating system-specific documentation to evaluate any error messages or logs after the driver is loaded. Note the LED light activity (see the LED Reference Key section). ZX370 Series Adapter User Guide Page... - Page 8 LED Reference Key The table below references the LED activity of the ZX370 Series. Each port on the ZX374 is linked to an LED so you know immediately if the port has an established link (green) and it is transmitting or receiving data (amber).
-
Page 9: Appendix A: Legal Notices And Certification
ZX370 S ERIES Modification to this product not authorized by ZNYX Networks could void the FCC approval and negate your authority to operate the product. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. -
Page 10: Warranty
ZNYX Networks within one year of purchase. ZNYX Networks warrants to the original purchaser of this hardware product that it is to be in good working order for a period of twelve (12) months from the date of purchase from ZNYX Networks or an authorized dealer.
