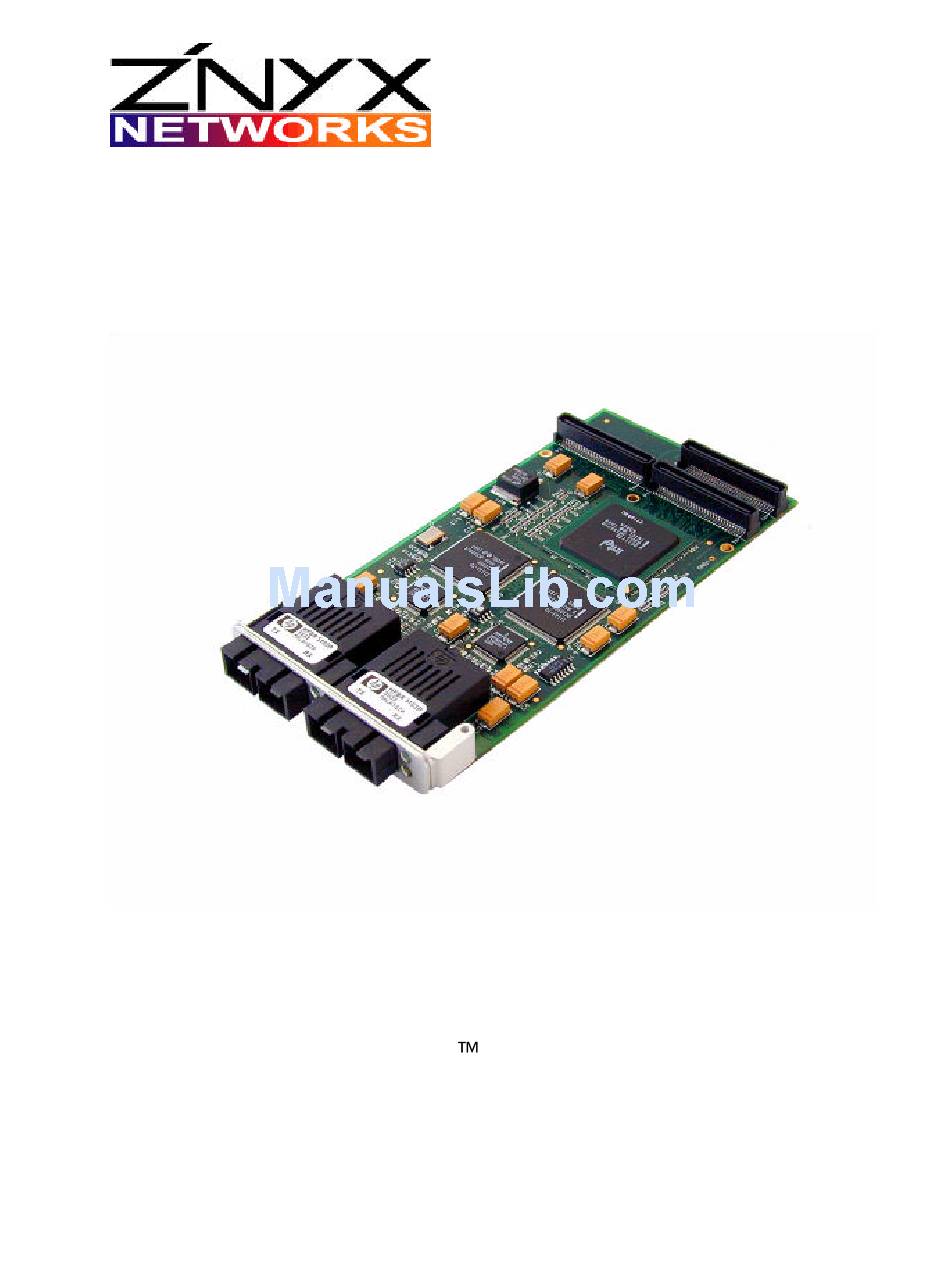

- Page 1 User’ s Guide NetBlaster ZX222 Fast Ethernet Adapter for PCI Mezzanine Connector (PMC)
- Page 2 June 23, 2000 Version © 2000 ZNYX Networks. All rights reserved worldwide. Information in this document is subject to change without prior notice. ZNYX Networks, RAIN, RAINlink and NetBlaster are trademarks or registered trademarks of ZNYX Networks in the United States and/or other countries. All other marks, trademarks or service marks are the property of their respective owners.
-
Page 3: Documentation And Software
The steps outlined here help you install and troubleshoot the hardware. Driver installation instructions are available along with the driver itself from the ZNYX Networks web site. To get the most recent operating system specific driver, go to the ZNYX Networks website or contact... -
Page 4: Hardware Installation
3. Remove the motherboard or carrier card containing at least one available single-wide PMC slot. Select a slot to install the ZNYX Networks NetBlaster adapter. Remove the cover from the PMC slot. -
Page 5: Lan Cable Connection
4. Insert the ZNYX Networks adapter into the PMC slot. Insert the bezel of the ZNYX Networks adapter into the PMC cutout on the front panel of the motherboard or carrier card. Do not allow the gasket in the groove of the bracket to become misshapen or damaged. -
Page 6: Basic Troubleshooting
4. To test all channels of your adapter, run DIAG222 for each bus number and device number. For example, if you have a ZX222 and the bus number is 1 and the device numbers are 4 and 5, run: >DIAG222... -
Page 7: Technical Support
3. Refer to operating system specific documentation to evaluate any error messages or logs when the driver is loaded. Technical Support If you need further assistance after referring to this User’ s Guide, ZNYX Networks has a professional technical support team available to answer your questions. Contact us at: Telephone:... -
Page 8: Appendix A: Legal Notices And Certification
Cet appareil numeriqué de la classe A est conforme à la norme NMB-003 du Canada. CE Conformity: The ZX222 is in compliance to CE testing according to the following standards with respect to the stated level and given criteria: EN55022... -
Page 9: Warranty
Should this product, in ZNYX Network's opinion, malfunction during the applicable warranty period, ZNYX Networks will, at its expense, repair the defective product or part or, at its option, deliver to the Customer an equivalent product or part to replace the defective item. To prevent damage in transport, the Customer must return the product in its original packaging or, if this is not available, other protective packaging approved in advance by ZNYX Networks.
