Summary of Contents for Vax V-100T

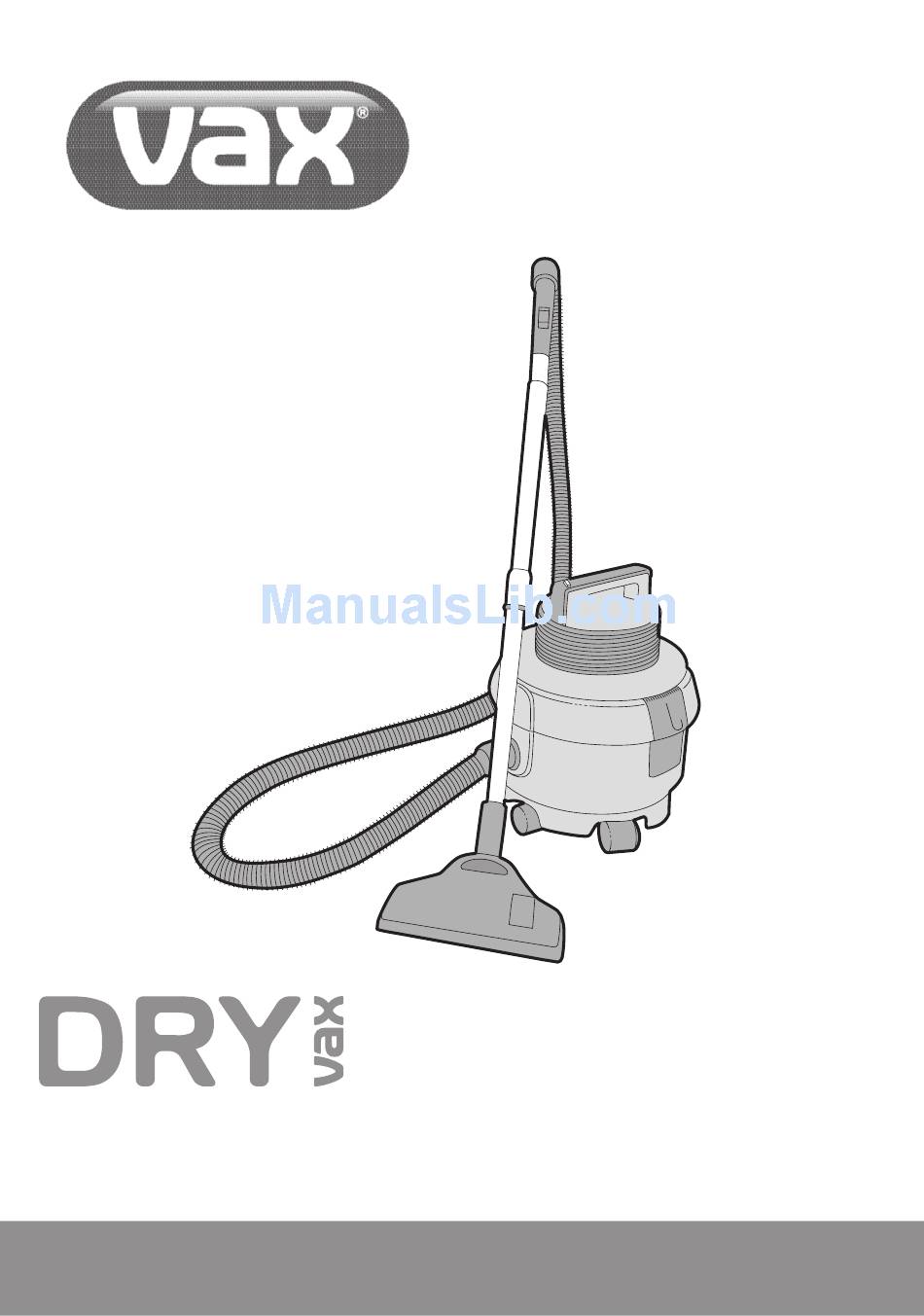

- Page 1 Vax Careline: UK 0844 412 8455 ROI 1-800 928 308 vax.co.uk BAGGED CYLINDER VACUUM CLEANER Please read carefully before using this cleaner. Always fully extend Vax Model Number: V-100T the mains cable before use. Instruction Manual...
-
Page 2: Parts Overview
Parts Overview Parts Overview Fig. 1/1 2 pc extension tube On/off button Flexible hose Carry handle Combination floor tool Dusting brush Castor wheels Crevice tool Top cover retainer clips Upholstery tool Post-motor filter (at rear) Dust bags (x3) Power cord IMPORTANT: The accessories are stored in the dust bag compartment and need to be removed before operating the vacuum cleaner. -
Page 3: Safety Information
Safety Information Safety Information FOR HOUSEHOLD USE ONLY When using the vacuum cleaner, basic safety 15. Take extra care when vacuuming on stairs. precautions should always be observed, including the following: 16. Keep vacuuming area well lit. 1. Only use the vacuum cleaner indoors on dry 17. -
Page 4: Initial Setup
Initial Set Up/Use and Function Initial Set Up Use and Function IMPORTANT : The accessories are stored in the dust IMPORTANT: Always remove the power plug from bag compartment and need to be removed before the wall outlet before assembling or before removing operating the vacuum cleaner. -
Page 5: How To Operate
Use and Function/How to Operate Vacuuming Hard Floors How to Operate For hard floor cleaning, press the rocker switch on the combination floor tool backwards as shown to On/off Button lower the brushes (Fig.5/3). Fully unwind the power cord and plug the cord into the electrical outlet. - Page 6 Accessories/Dust Bag & Filters: Removal & Replacement 1. Turn off the vacuum cleaner and unplug it from the Accessories mains. Remove the hose. Unclip the retainer clips on either side of the vacuum cleaner and lift off to gain access to the dust bag compartment IMPORTANT: Always remove the plug from the wall (Fig.
-
Page 7: Clearing Blockages
Dust Bag & Filters: Removal & Replacement/Clearing Blockages 2. Push in latches on both sides of the cover to release to post-motor filter (Fig. 7/8). Fig.7/4 2. The pre-motor filter is found on the underside of Fig. 7/8 the top cover. To release the filter turn the cover 3. -
Page 8: Troubleshooting
Troubleshooting Troubleshooting WARNING: TO REDUCE RISK OF PERSONAL INJURY, UNPLUG THE VACUUM CLEANER BEFORE SERVICING PROBLEM: Cleaner won’t run Cause: Not properly plugged into electrical outlet. Solution: Plug in firmly. Cause: No electricity in electrical outlet. Solution: Check fuse or breaker. Cause: On/off switch not turned on. -
Page 9: Technical Specification
8.30am to 6.30pm Saturday-Sunday 9.00am to 5.00pm If you have any queries about using your carpet cleaner, call the Vax Careline. Please make a note of the serial number and model number of the carpet cleaner before calling. For the nearest Service Agent, please call the Vax Customer Careline or visit vax.co.uk... - Page 10 EEC STATEMENT OF COMPLIANCE Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility declare that the product V-100T is manufactured in compliance with the following: Safety: 73/23/EEC Low Voltage Directive, as modified by 93/68/EEC EMC: 89/336/EEC Electromagnetic Compatibility Directive, as modified by 93/68/EEC Waste electrical products should not be disposed of with household waste.
