V-135U User Guide v3.qxd:V-135U User Guide
2/10/08
11:44
Page 1
All manuals and user guides at all-guides.com
Vax careline
0870 6061248
Carpet washer
Vax model number:
V-135U
SOLUTION
Please read carefully before using this cleaner.
www.vax.co.uk
Always fully extend the mains cable before use.
Retain for future reference.
Advertisement
Table of Contents
Related Manuals for Vax Rapide V-135U
Summary of Contents for Vax Rapide V-135U

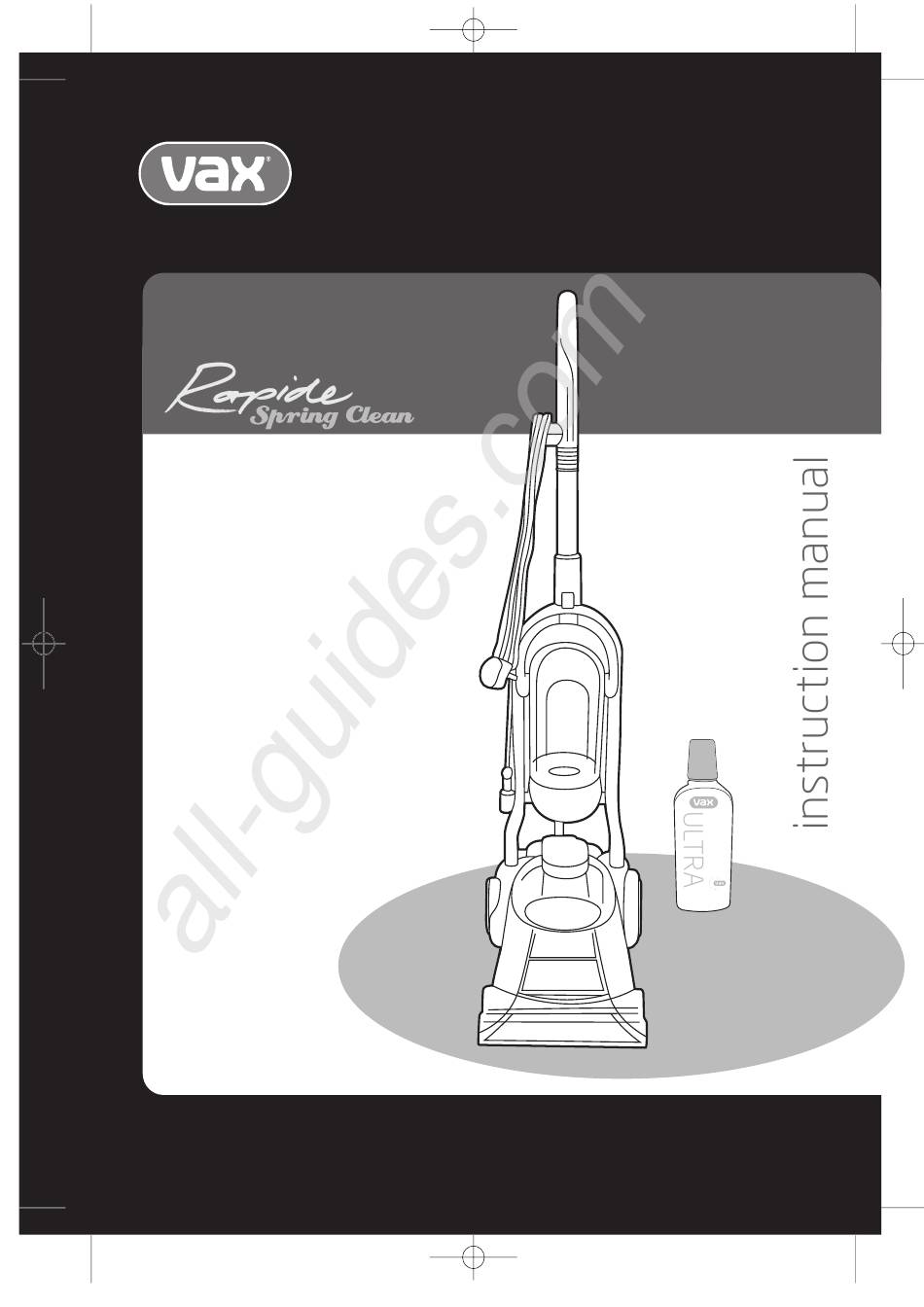

- Page 1 11:44 Page 1 All manuals and user guides at all-guides.com Vax careline 0870 6061248 Carpet washer Vax model number: V-135U SOLUTION Please read carefully before using this cleaner. www.vax.co.uk Always fully extend the mains cable before use. Retain for future reference.
- Page 2 1. Diagram V-135 SOLUTION Fig.1/1 Handle Wheels Cord hooks Suction channel Power cord Handle assembly release position Clean water tank release 10 On/off switch Clean water tank 11 Handle release pedal Dirty water tank lid 12 Vax Ultra Solution parts overview...
-
Page 3: Safety Information
Do not use with a damaged cord or plug. If the supply cord and/or plug is damaged, they must be replaced PLEASE KEEP THESE INSTRUCTIONS by the manufacturer, a Vax Service Agent or similarly FOR FURTHER USE. qualified persons in order to avoid hazard. -
Page 4: Operation
Tilt the solution reservoir away from the cleaner and Fig.3/1 remove (Fig 4/2). Fig.4/4 Fig.4/2 Unscrew the cap from the bottom of the solution reservoir (Fig 4/3). Fig.4/5 Fig.4/3 Pour the correct amount of Vax Ultra Solution as directed into the clean water tank Fig.4/6 assembly/ operation... - Page 5 Replace the measuring cap (Fig 4/4). The power switch controls the vacuum motor. Press on the handle release pedal and pull the cleaner back into a NOTE: use only Vax Ultra Solution, using other reclined position (Fig 4/7). cleaning solutions may cause excessive foaming.
- Page 6 If the tank does not appear full turn off the power switch and wait for the float to settle. For best results use only Vax Ultra Solution. You will hear a change in motor pitch when the tank is full and needs emptying.
-
Page 7: Maintenance
2/10/08 11:44 Page 7 All manuals and user guides at all-guides.com Vax Careline 0870 606 1248 While making sure the dirty water tank is resting on the 5. Maintenance base, place the rear of the tank into the base of the cleaner, push down on the handle until it latches. -
Page 8: Troubleshooting
Please make a note of the serial number and model Solution: Plug in firmly. number of the carpet cleaner before calling. There are over 400 approved Vax Service Agents in the UK. For the Cause: No electricity in electrical outlet. -
Page 9: Technical Specification
V-135U User Guide v3.qxd:V-135U User Guide 2/10/08 11:44 Page 9 All manuals and user guides at all-guides.com Vax Careline 0870 606 1248 8. Technical Specification Voltage: 220-240V ~50Hz Wattage: 700 W Capacity: Clean water tank - 2.6 litres Dirty water tank - 1.8 litres... - Page 10 V-135U User Guide v3.qxd:V-135U User Guide 2/10/08 11:44 Page 10 All manuals and user guides at all-guides.com www.vax.co.uk This page has been left intentionally blank.
- Page 11 V-135U User Guide v3.qxd:V-135U User Guide 2/10/08 11:44 Page 11 All manuals and user guides at all-guides.com Vax Careline 0870 606 1248 This page has been left intentionally blank.
- Page 12 Page 12 All manuals and user guides at all-guides.com EEC STATEMENT OF COMPLIANCE Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the Vax V-135U is manufactured in compliance with the following Directives: Safety: 2006/95/EC Low Voltage Directive EMC: 2004/108/EC Electromagnetic Compatibility Directive Waste electrical products should not be disposed of with household waste.
