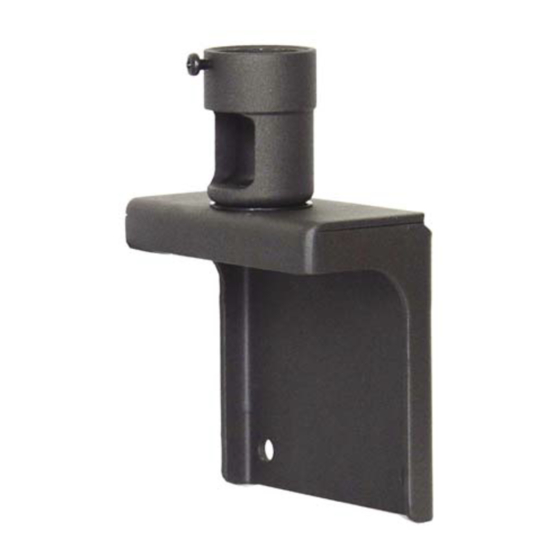

- Page 1 Installation and User’s Guide Installation and User’s Guide FLAT LCD DISPLAY MOUNT MODEL CMH-01 Ceiling Mount http://www.orionimages.com All contents of this document may change without prior notice, and actual product appearance may differ from that depicted herein...
-
Page 2: Warning Statements
Installation and User’s Guide http://www.orionimages.com Warning Statements The wall, floor or ceiling should be capable of supporting a weight of at least five (5) times the monitor’s weight. If it cannot, the wall, floor or ceiling must be reinforced. Proper installation procedure by qualified personnel as outlined in the installation instructions must be adhered to Failure to do so could result in serious personal injury. -
Page 3: Table Of Contents
Installation and User’s Guide http://www.orionimages.com TABLE OF CONTENTS 1. PART LIST .……......................... 2. INSTALLATION TOOLS .……..................... 3. ATTACHING THE CEILING ADAPTER .……..............4. ATTACHING THE MOUNTING PLATE .……..............5. TECHNICAL SPECIFICATIONS .……................6. LIMITED LIFETIME WARRANTY .……................7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310... -
Page 4: Part List
This wall mount is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact ORION Images. 714-766-6300 CMH-01 Mount Hardware Ceiling Adapter (Qty 1) -
Page 5: Attaching The Ceiling Adapter
To attach the ceiling adapter to the suspension device (not included), rotate the ceiling adapter clockwise onto the suspension device a minimum of five (5) complete turns. Suspension Device (Not Included) M6 x 12mm Phillips Head Set Screw CMH-01 7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310... -
Page 6: Attaching The Ceiling Adapter
Once the ceiling adapter has been attached, tighten the M6 x 12mm Phillips head set screw using a Phillips screwdriver. Suspension Device (Not Included) Screw Driver M6 x 12mm Phillips Head Set Screw CMH-01 7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310... -
Page 7: Attaching The Mounting Plate
Suspension Device (Not Included) Locking Set Screw M10 Nut M10 Flat Washer CMH-01 Mounting Plate (Not Included) M10 Flat Washer M10 Hex Head Bolt 7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310... -
Page 8: Attaching The Mounting Plate
ATTACHING THE MOUNTING PLATE Step2 Once the both units have been attached together, use a 17mm socket wrench and a 17mm wrench to tighten the M10 hardware. Suspension Device (Not Included) CMH-01 17mm Deep Set Socket Wrench Mounting Plate (Not Included) 17mm Wrench... -
Page 9: Technical Specifications
Installation and User’s Guide http://www.orionimages.com Technical Specification All measurements are in inches (mm). 7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310... -
Page 10: Limited Lifetime Warranty
Limited Lifetime Warranty All Orion Images products carry a limited lifetime warranty from ship date against defects in materials and workmanship. Orion Images is not liable for improper installation that results in damage to mounts, adapters, display equipment or personal injury.
