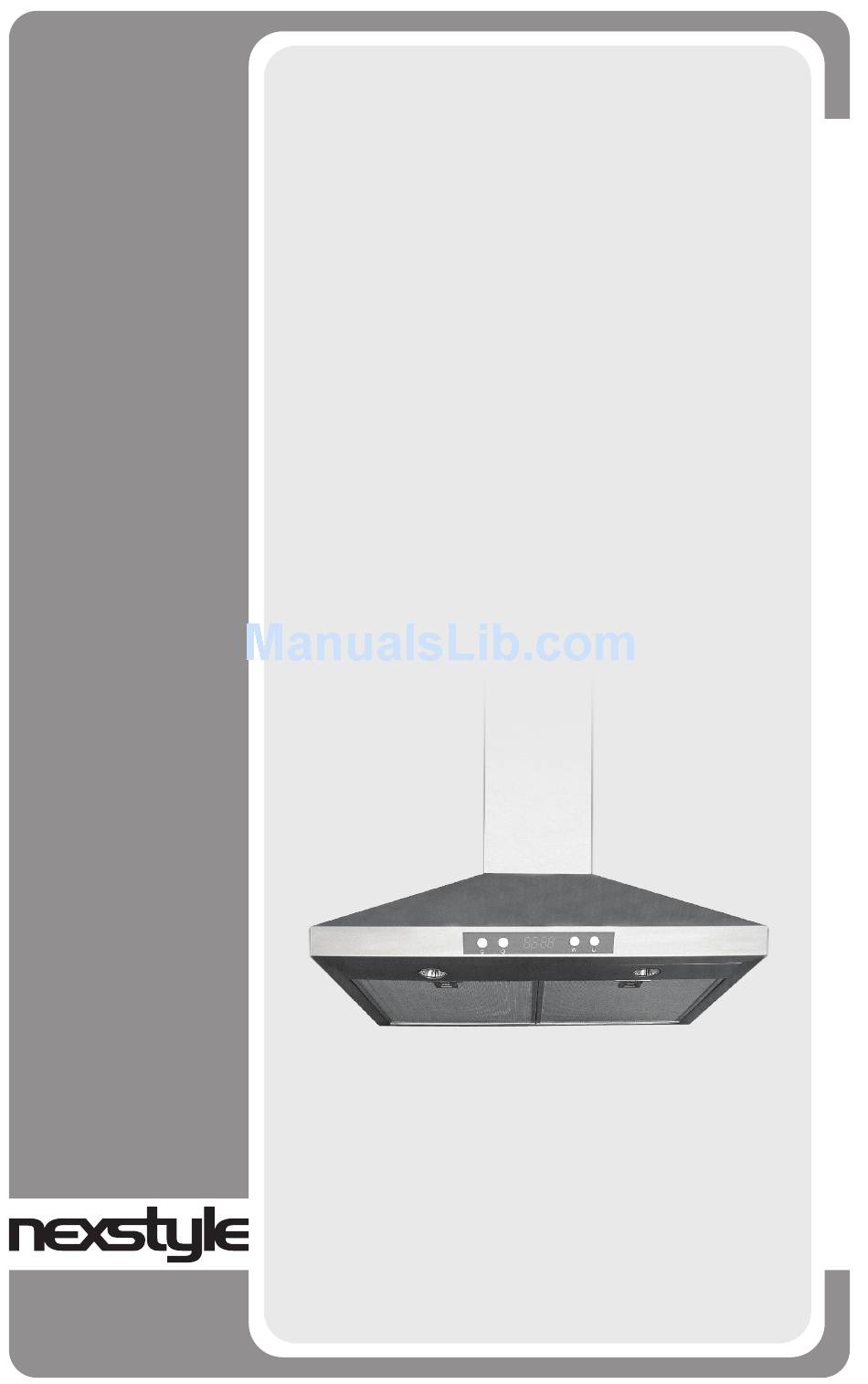

stainless steel
range hood
Installation
Guide and
User Manual
This uniT replaces Top
venTing range hoods only.
check your exisTing range
hood before insTalling.
Please read and save this guide before using your range hood.
Store the guide in a safe place so you will know where it is
when you want to refer to it.
Model#: 4OSA015BST
Itm./Atr. 653654
Advertisement
Table of Contents
Related Manuals for nexstyle 4OSA015BST
Summary of Contents for nexstyle 4OSA015BST
-
Page 1: Stainless Steel
Model#: 4OSA015BST Itm./Atr. 653654 Installation Guide and User Manual This uniT replaces Top venTing range hoods only. check your exisTing range hood before insTalling. Please read and save this guide before using your range hood. Store the guide in a safe place so you will know where it is... - Page 2 IMPORTANT Carefully check the unit prior to installation to ensure there is no damage. Do not dispose of any packaging until you are satisfied with your new range hood. If you have any problems with this unit or there are missing or damaged parts, please call toll free: 1-800-459-4409.
-
Page 3: Important Safety Instructions
a. iMporTanT safeTy insTrucTions Read all instructions before installing and operating this appliance. insTallaTion Do not install if the appliance is damaged. 1. The instructions in this manual are intended for qualified installers, service technicians or other qualified persons. NEVER attempt to install this appliance yourself. - Page 4 operaTions 1. Read all instructions in this manual before operating this appliance. 2. Always leave safety grills and filters in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing. 3. NEVER dispose of cigarette ashes, ignitable substances, or any foreign objects in blowers.
- Page 5 b. before you sTarT... It is very important for your safety and the safety of others that you follow the many important safety messages in this manual and on your appli- ance. Always read and obey all safety messages. All safety messages will tell you what the potential hazard is, how to reduce the possibility of injury, and what can happen if the instructions are not followed.
- Page 6 5) When cutting or drilling into the wall or ceiling, ensure that you do not damage electrical wiring and hidden utilities. 6) Fans must always be vented to the outdoors. WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY mETAL DUCT WORK.
-
Page 7: Grounding Instructions
WARNING: DO NOT CONNECT RANGE HOOD TO ExISTING DUCTS CARRYING COmBUSTIBLE FUmES/mATERIALS (BOILER, FIREPLACES ETC.) WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: 1) Never leave cooking unattended as boil-overs may ignite. Heat oils slowly on low or medium settings. 2) Always turn hood fans on when cooking at high heat or when cooking flaming foods. -
Page 8: Electrical Requirements
c. elecTrical reQuireMenTs OBSERVE ALL GOVERNING CODES AND ORDINANCES WARNING Electrical grounding is required for this range hood. Check with a qualified electrician if you are not sure whether the range hood is properly grounded. Failure to follow electrical requirements may result in a fire. A fuse in the neutral or grounding circuit could result in electrical shock. -
Page 9: List Of Materials
White, and Green to Yellow/Green) to house wires and cap with wire connectors. WARNING ELECTRICAL SHOCK HAZARD Do not perform service on an electrically live system. Disconnect the main electrical supply before servicing this device. Touching electrical connectors or other exposed electrical circuitry inside this range hood when they are energized could result in death, serious bodily injury, or property damage. -
Page 10: Dimensions
DImENSIONS 222 mm 220 mm (8.7 in) (8.7 in) 1460 mm (57.5 in) 860 mm (33.9 in) 260 mm (10.2 in) 50 mm (2 in) 750 mm (29.5 in) 500 mm (19.7 in) PARTS Part Product Components Hood body, complete with: controls, lights, blower, filters, damper 1 set Telescopic Chimney Upper Chimney... - Page 11 Duct Clamp Hood Body x 1 Installation Guide x 1 M4 x 8mm Duct Cover Tapping Screws x 1 set Chimney Support Bracket x 1 Toggle Bolts Hood M5 x 16mm Aluminum Brackets Screw/Washer Parts Bag Exhaust Duct x 4 Sets WARNING * Proper installation is your responsibility - Have a qualified technician install this range hood.
-
Page 12: Wall Drilling And Bracket Installation
e. insTallaTion NOTE: Carefully remove the plastic protective film from all exterior sur- faces of the hood and chimney prior to final installation. NOTE: At least two people will be required to mount the hood. WALL DRILLING AND BRACKET INSTALLATION 1. -
Page 13: Damper Installation
7. Drill pilot holes at the center points of the top bracket (Part #6) and the center points of the 2 hood brackets (Part #5). 8. Screw the 4 toggle bolts (Part #9) into wall leaving the head of the bolts approximately 6.4 mm (0.25 in) away from the wall surface. -
Page 14: Attaching Hood Body To Wall
ATTACHING ALUmINUm DUCT 1. Place the aluminium duct clamp through one end of the aluminum duct and slide it down over the damper assembly. 2. Tighten the screw on the duct clamp until tight. 3. Seal all joints with duct tape CAUTION This edge is sharp. -
Page 15: Exhaust Venting
5. Place the chimney onto the hood body, ensuring it fits into the gap on the top of hood body. 6. Slide the chimney extensions upward and secure the upper chimney to the chimney support bracket using two 4 mm x 8 mm tapping screws. CAUTION: Minimize movement of the chimney extensions to avoid scratches. -
Page 16: Electrical Connection
ELECTRICAL CONNECTION Electrical wiring must be done by a qualified person(s) in accordance with all applicable electrical and building codes. Turn off electrical power at the power source before wiring. CONTROL PANEL The LED screen and switches appear and function as shown below. Please refer to specific function instructions for information on how to use the range hood’s various features. -
Page 17: Fan Operation
FAN OPERATION 1. Press the “ ” to start the blower. The blower will start on the high speed setting. 2. Press the “ ” again to turn the fan to low speed. 3. Press the “ ” twice to turn off the range hood fan. This will not turn off the light, if the lights is on, press the “... - Page 18 Cleaning Aluminum Grease Filter/Stainless Steel Filter-less Grill: - The metal filters fitted by the factory are intended to filter out residue and grease from cooking. It need not be replaced on a regular basis but must be kept clean. - This must be cleaned once a month using non-abrasive detergents, either by hand or in the dishwasher, which must be set at a low temperature on a short cycle.
-
Page 19: Replacing Light Bulbs
REPLACING LIGHT BULBS: WARNING: DISCONNECT RANGE HOOD FROm ELECTRICAL SOURCE AND BE SURE LIGHTS ARE COOL. WARNING BURN HAZARD Light bulbs can become extremely hot when turned on. DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns. SEVERE INJURY Rotating blower fan can cause severe injury. -
Page 20: Troubleshooting
TroubleshooTing 1. If the range hood does not operate after installation: - Check if all power has been turned back on and all electrical wiring is properly connected. - Check that the power connection for the unit is properly connected. - Make sure the wiring between the switch board and control board are connected properly. - Page 21 6. The light does not work: - Check to see if light bulb is loose. If so, tighten. - Remove problem bulb and insert one you know is working. If the properly functioning light does not come on, the problem may be the light assembly.
-
Page 24: Warranty Claim Procedure
1-year hoMe use WarranTy This product is warranted to the original purchaser to be free of defects in material and workmanship for one (1) year from the date of purchase. This warranty does not extend to commercial or institutional use or installation. Warranty service should be arranged through the point of purchase.
