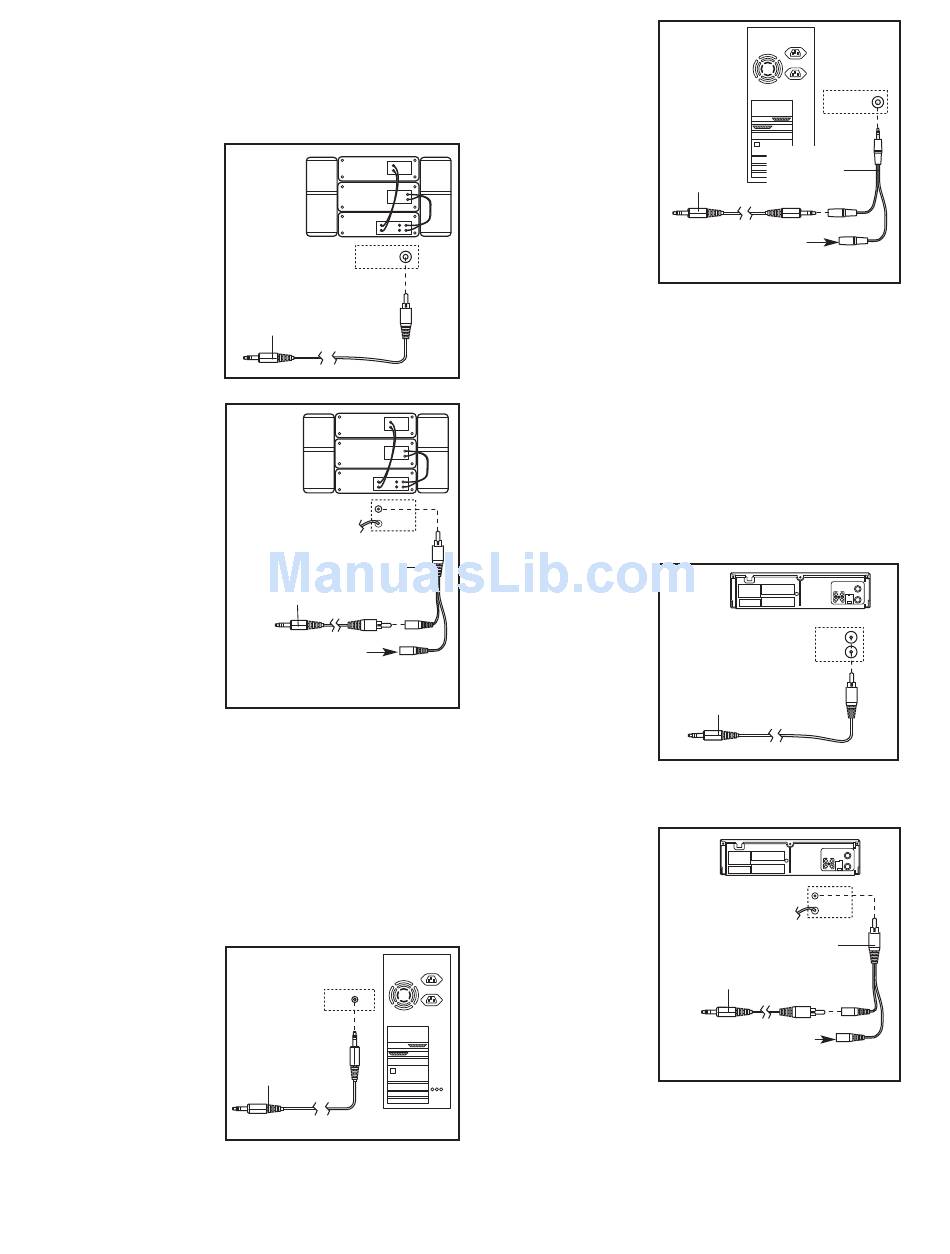

HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of
a 1/8" to RCA
stereo audio
cable (available
at electronics
stores) into the
console iFIT
jack. Plug the
other end of the
cable into the
LINE OUT jack
on your stereo.
B. Plug one end of
a 1/8" to RCA
stereo audio
cable (available
at electronics
stores) into the
console
iFIT.com jack.
Plug the other
end of the cable
into an RCA Y-
adapter (avail-
able at electron-
ics stores).
Next, remove
the wire that is
currently plugged into the LINE OUT jack on your
stereo and plug the wire into the unused side of the
Y-adapter. Plug the Y-adapter into the LINE OUT
jack on your stereo.
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 1/8" LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of
a 1/8" to 1/8"
stereo audio
cable (available
at electronics
stores) into the
jack beneath
the console.
Plug the other
end of the
cable into the
LINE OUT jack on your computer.
A
CD
VCR
Amp
LINE OUT
LINE OUT
Audio
Cable
B
CD
VCR
Amp
LINE OUT
RCA
Audio
Y-adapter
Cable
Wire removed
from LINE
OUT jack
A
LINE OUT
Audio
Cable
B. Plug one end
of a 1/8" to 1/8"
stereo audio
cable (available
at electronics
stores) into the
jack beneath
the console.
Plug the other
end of the
cable into a
1/8" Y-adapter
(available at
electronics
stores). Plug the Y-adapter into the PHONES jack
on your computer. Plug your headphones or speak-
ers into the other side of the Y-adapter.
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 20.
A. Plug one end
of a 1/8" to
RCA stereo
audio cable
(available at
electronics
stores) into the
console
iFIT.com jack.
Plug the other
end of the
cable into the AUDIO OUT jack on your VCR.
B. Plug one end
of a 1/8" to
RCA stereo
audio cable
(available at
electronics
stores) into the
console
iFIT.com jack.
Plug the other
end of the
cable into an
RCA Y-adapter
(available at
electronics stores). Next, remove the wire that is
currently plugged into the AUDIO OUT jack on your
VCR and plug the wire into the unused side of the
Y-adapter. Plug the Y-adapter into the AUDIO OUT
jack on your VCR.
