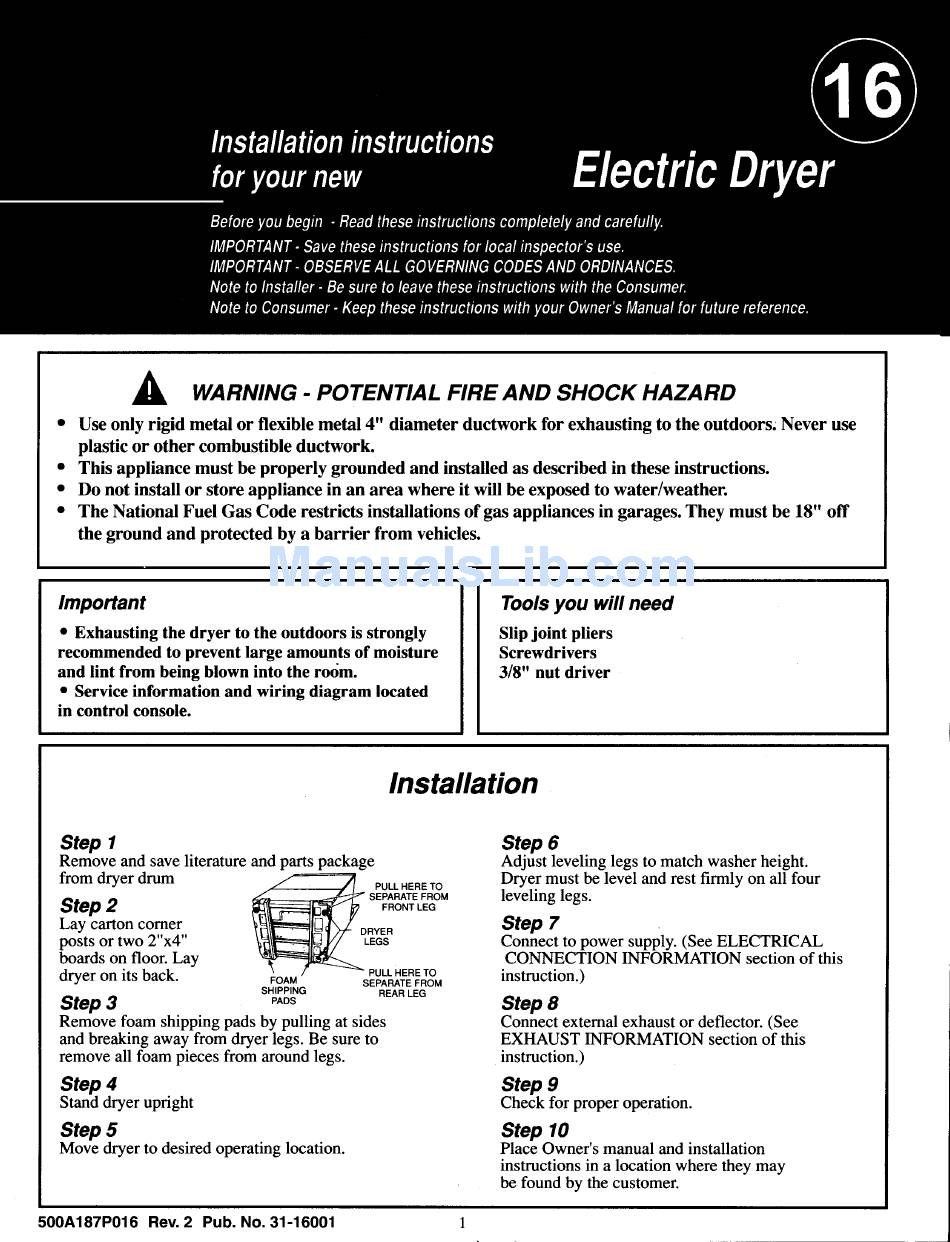

Fisher & Paykel DE60FA27AW2-96983 Installation Instructions

WARNING- POTENTIAL FIRE AND SHOCK HAZARD
• Use only rigid metal or flexible metal 4" diameter ductwork for exhausting to the outdoors. Never use
plastic or other combustible ductwork.
• This appliance must be properly grounded and installed as described in these instructions.
• Do not install or store appliance in an area where it will be exposed to water/weather.
• The National Fuel Gas Code restricts installations of gas appliances in garages. They must be 18" off
the ground and protected by a barrier from vehicles.
Important
• Exhausting the dryer to the outdoors is strongly
recommended to prevent large amounts of moisture
and lint from being blown into the room.
• Service information and wiring diagram located
in control console.
Tools you will need
Slip joint pliers
Screwdrivers
3/8" nut driver
Installation
Step 1
Remove and save literature and parts package
from dryer drum PULL H ERE ro
Step 2 FRONT LEG
Lay carton comer
DRYER
posts or two 2"x4"
LEGS
boards on floor. Lay
PULL HERE TO
dryer on its back.
FOAM SEPARATE FROM
SHIPPING REAR LEG
Step 3 PADS
Remove foam shipping pads by pulling at sides
and breaking away from dryer legs. Be sure to
remove all foam pieces from around legs.
Step 6
Adjust leveling legs to match washer height.
Step 4
Stand dryer upright
Step 5
Move dryer to desired operating location.
Dryer must be level and rest firmly on all four
leveling legs.
Step 7
Connect to power supply. (See ELECTRICAL
CONNECTION INFORMATION section of this
instruction.)
Step 8
Place Owner's manual and installation
instructions in a location where they may
be found by the customer.
500A187P016 Rev. 2 Pub. No. 31-16001 1
Step 10
Step 9
Check for proper operation.
Connect external exhaust or deflector. (See
EXHAUST INFORMATION section of this
instruction.)
