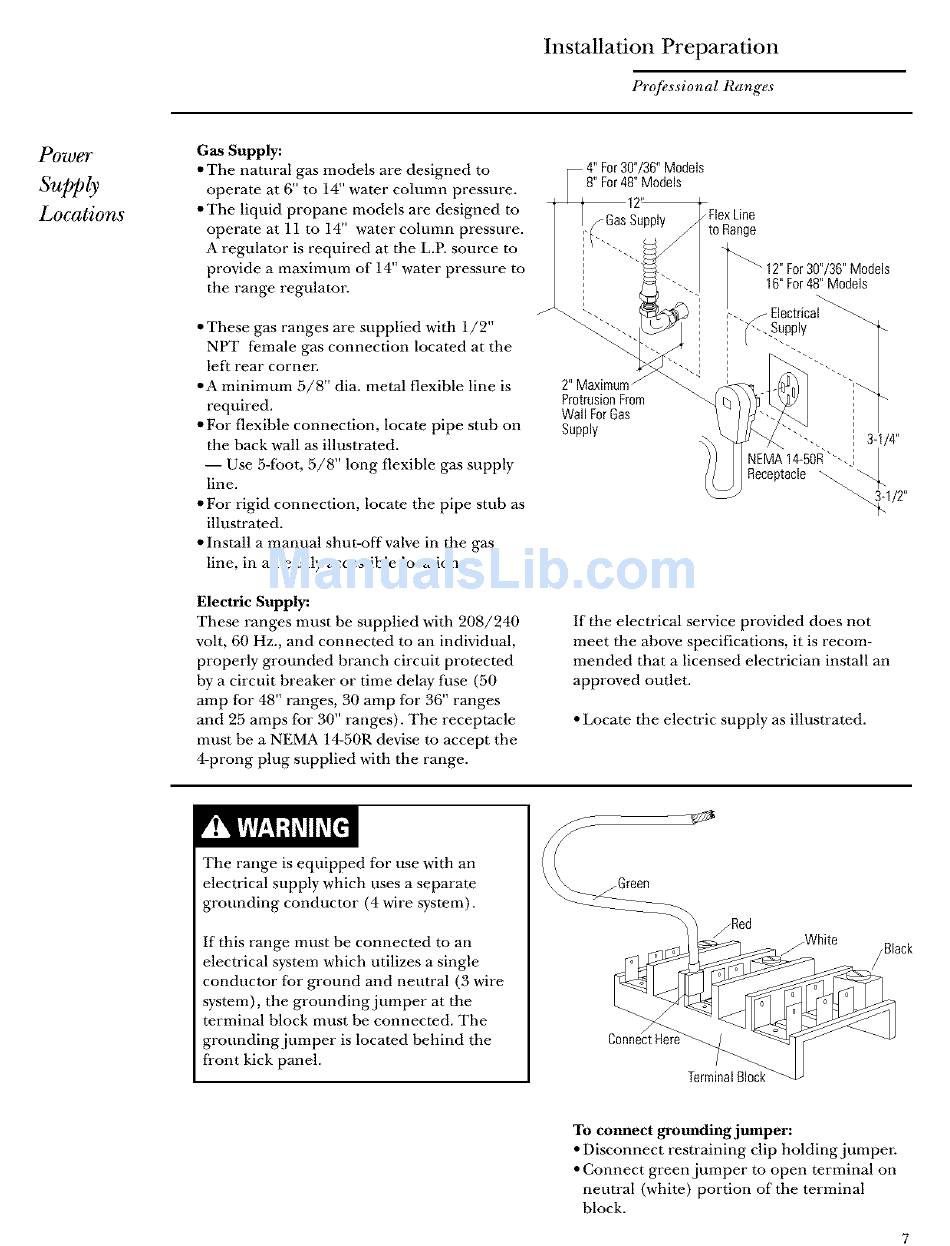

GE Monogram ZDP48N4G Installation Instructions Manual page 7

Installation Preparation
Pro/essional Ranges
Pozogr
Supply
Locations
Gas Supply:
• The natural gas models are designed to
operate at 6" to 14" water column pressure.
• The liquid propane models are designed to
operate at 11 to 14" water column pressure.
A regulator is required at the L.R source to
provide a maximum of 14" water pressure to
the range regulator.
• These gas ranges are supplied with 1/2"
NPT female gas connection located at the
left rear cornet:
• A minimum 5/8" dia. metal flexible line is
required.
• For flexible connection, locate pipe stub on
the back wall as illustrated.
-- Use 54hot, 5/8" long flexible gas supply
line.
• For rigid connection, locate the pipe stub as
illustrated.
• Install a manual shut-off valve in the gas
line, in an easily accessible location.
Electric Supply:
These ranges must be supplied with 208/240
volt, 60 Hz., and connected to an individual,
properly grounded branch circuit protected
by a circuit breaker or time delay fuse (50
amp for 48" ranges, 30 amp for 36" ranges
and 25 amps fbr 30" ranges). The receptacle
must be a NEMA 14-50R devise to accept the
4-prong plug supplied with the range.
4" For30"/36"Models
8"Models
12_Flex Line
Supply ///t0 Range
__i" ? 12" For30'736"Models
16" For48" Models
Electrical_
2" Maximum
ProtrusionFrom
Wall ForGas
Supply ""-. 3-1/4"
NEMA 14-50R "'-.
Receptacle _
"_._.1/2"
If the electrical service provided does not
meet the above specifications, it is recom-
mended that a licensed electrician install an
approved outlet.
• Locate the electric supply as illustrated.
The range is equipped fbr use with an
electrical supply which uses a separate
grounding conductor (4 wire system).
If this range must be connected to an
electrical system which utilizes a single
conductor for ground and neutral (3 wire
system), the grounding jumper at the
terminal block must be connected. The
grounding jumper is located behind the
fi-ont kick panel.
_Greea
_Red
/
Connec/t
Terminal B lock
/White ,Black
To connect grounding jumper:
• Disconnect restraining clip holding jumper.
• Connect green jumper to open terminal on
neutral (white) portion of the terminal
block.
7
